BREMBO 09.5708.10 (09570810) Brake Disc

BREMBO part 09.5708.10 (09570810) Brake Disc

BREMBO 09.5708.10 (09570810) Brake Disc

by BREMBO

Manufacturer Part Number: 09.5708.10 (09570810)

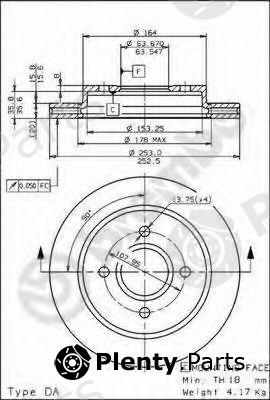

Сharacteristics:
  • for article number: 09.5708.10
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 253
  • Brake Disc Thickness [mm]: 20
  • Minimum thickness [mm]: 18
  • Height [mm]: 43,7
  • Centering Diameter [mm]: 63,5
  • Number of Holes: 4
  • Tightening Torque [Nm]: 100

Product Details

BrandBREMBO
BREMBO article (MPN)09.5708.10 (09570810)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD, MERCURY vehicles

OE manufacturerOEM reference numbers
FORD4112996, 1025911, 5026786, 93BX2A315AD
MERCURYF5RZ-2C026A

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.5708.10 (09570810) Brake Disc offered by A.B.S., AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FOMAR, FORMPART / OTOFORM, fri.tech., FTE, GALFER, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16191
AP24440
ATE24.0120-0146.1, 24032001461
AUTOMEGA30500260786
BENDIX561679B, 561679BC
BORG & BECKBBD4984
BOSCH0986478605, 0986479887, F026A00996
Brake ENGINEERINGDI955254
BRECOBS8096
BREMBO09.5708.75
BREMSIDBA479V
BSF11267V
CIFAM800317
DELPHIBG2700
DENCKERMANNB130068
E.T.F.196786
EUROBRAKE5815202535
FARCOM231151
FEBI BILSTEIN05644
FERODODDF479C1, DDF4791, DRF479, DDF479
FOMARFO2267
FORMPART / OTOFORM15615019/S
fri.tech.BD0422
FTEBS3910, BS3910B
GALFERB1G22001461
GIRLING6026232
HANS PRIES300267
HELLA8DD355103381, 8DD355103391
HELLA PAGID8DD355103391, 8DD355103381
ICER78BD67862
JP GROUP1563200809, 1563200800
JURID561679J, 561679JC
KAGER370186
KAMOKA103958
KAWE616010
KRAFT6052120
LPRF1431V
LUCAS ELECTRICALDF2623
MAGNETI MARELLI360406025400, 353611743640, 431602041910
MAPCO15827
MAXGEAR190716
METELLI230317
METZGER6110157, 616010
MEYLE7155237008PD, 7155237008
MINTEXMDC774, MDK0164
MOTAQUIPLVBD907
NATIONALNBD435
NECTOWN730
NK312535, 202535
OPEN PARTSBDRS118525, BDR118520
OPTIMALBS-1600
PAGID51027
PATRONPBD2623
PILENGAV277
PROFIT50100479
PROTECHNICPRD6100
QUINTON HAZELLBDC3910
R BRAKE78RBD26786
REMSA6160.10
ROADHOUSE616010
ROTINGERRT2326T5, RT2326
SASIC9004819J
sbs1815202542, 1815202546, 1815202533, 1815202551, 1815202535, 1815312535, 16191
STELLOX6020-2535V-SX
SWAG50905644
TEMPLIN0311014990, 0311014995
TEXTAR92063603, 92063600, 98200063601
TRISCAN812016123
TRUSTINGDF422
TRWDF2623
VAICOV2580006
VALEO186426
VEMA98267
WOKINGD616010
ZIMMERMANN250133300, 250133352, 250133320

Vehicle fitment / BREMBO 09.5708.10 (09570810) Brake Disc compatibility

This product fits the following models: FORD COUGAR, FORD MONDEO  , FORD MONDEO I, FORD MONDEO I CLIPPER, FORD MONDEO II, FORD MONDEOII, FORD MONDEO II CLIPPER, FORD MONDEO I RURAL, FORD SCORPIO II, FORD SCORPIOII, etc. See all vehicles this product (BREMBO 09.5708.10 (09570810)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDCOUGAR
EC
2.0 16V
2.5 ST 200
2.5 V6 24V
1998/08 - 2001/12EDBA 131 hp 96 kW 2 L Petrol
EDBB 131 hp 96 kW 2 L Petrol
EDBC 131 hp 96 kW 2 L Petrol
EDBD 131 hp 96 kW 2 L Petrol
LCBA 170 hp 125 kW 2.5 L Petrol
LCBB 170 hp 125 kW 2.5 L Petrol
LCBC 170 hp 125 kW 2.5 L Petrol
LCBE 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
FORDMONDEO
BNP
GBP
1.8 4x4
1.8 i 16V
1.8 i 16V 4x4
1.8 TD
2.0 i 16V
2.0 i 16V 4x4
2.5 i 24V
1993/01 - 1996/08NGA 132 hp 97 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
RFM 88 hp 65 kW 1.8 L Diesel
RFM 90 hp 66 kW 1.8 L Diesel
RFN 88 hp 65 kW 1.8 L Diesel
RFN 90 hp 66 kW 1.8 L Diesel
RKA 115 hp 85 kW 1.8 L Petrol
RKA 115 hp 85 kW 1.8 L Petrol
RKB 112 hp 82 kW 1.8 L Petrol
RKA 116 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO I
BNP
GBP
1.8 4x4
1.8 i 16V
1.8 i 16V 4x4
1.8 TD
2.0 i 16V
2.0 i 16V 4x4
2.5 i 24V
1993/01 - 1996/08NGA 132 hp 97 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
RFM 88 hp 65 kW 1.8 L Diesel
RFM 90 hp 66 kW 1.8 L Diesel
RFN 88 hp 65 kW 1.8 L Diesel
RFN 90 hp 66 kW 1.8 L Diesel
RKA 115 hp 85 kW 1.8 L Petrol
RKA 115 hp 85 kW 1.8 L Petrol
RKB 112 hp 82 kW 1.8 L Petrol
RKA 116 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO I CLIPPER
BNP
1.8 i 16V
1.8 i 16V 4x4
1.8 TD
2.0 i 16V
2.0 i 16V 4x4
2.5 i 24V
1993/01 - 1996/08NGA 132 hp 97 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
RFM 88 hp 65 kW 1.8 L Diesel
RFM 90 hp 66 kW 1.8 L Diesel
RFN 88 hp 65 kW 1.8 L Diesel
RFN 90 hp 66 kW 1.8 L Diesel
RKA 115 hp 85 kW 1.8 L Petrol
RKA 115 hp 85 kW 1.8 L Petrol
RKB 112 hp 82 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
FORDMONDEO II
BAP
BFP
BNP
1.6 i
1.6 i 16V
1.8 i
1.8 TD
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09L1J 90 hp 66 kW 1.6 L Petrol
L1L 95 hp 70 kW 1.6 L Petrol
L1N 95 hp 70 kW 1.6 L Petrol
L1Q 95 hp 70 kW 1.6 L Petrol
LCBD 170 hp 125 kW 2.5 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RFN 90 hp 66 kW 1.8 L Diesel
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEOII
BAP
BFP
BNP
1.6 i
1.6 i 16V
1.8 i
1.8 TD
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09L1J 90 hp 66 kW 1.6 L Petrol
L1L 95 hp 70 kW 1.6 L Petrol
L1N 95 hp 70 kW 1.6 L Petrol
L1Q 95 hp 70 kW 1.6 L Petrol
LCBD 170 hp 125 kW 2.5 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RFN 90 hp 66 kW 1.8 L Diesel
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO II CLIPPER
BNP
1.6 i
1.6 i 16V
1.8 i
1.8 TD
2.0 i
2.5 24V
2.5 ST 200
1996/08 - 2000/09L1J 90 hp 66 kW 1.6 L Petrol
L1L 95 hp 70 kW 1.6 L Petrol
L1N 95 hp 70 kW 1.6 L Petrol
L1Q 95 hp 70 kW 1.6 L Petrol
NGA 131 hp 96 kW 2 L Petrol
NGB 131 hp 96 kW 2 L Petrol
NGC 131 hp 96 kW 2 L Petrol
NGD 131 hp 96 kW 2 L Petrol
RFN 90 hp 66 kW 1.8 L Diesel
RKB 115 hp 85 kW 1.8 L Petrol
RKF 115 hp 85 kW 1.8 L Petrol
RKH 115 hp 85 kW 1.8 L Petrol
RKJ 115 hp 85 kW 1.8 L Petrol
RKK 115 hp 85 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
SEB 170 hp 125 kW 2.5 L Petrol
SEC 170 hp 125 kW 2.5 L Petrol
SGA 205 hp 151 kW 2.5 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
FORDMONDEO I RURAL
BNP
1.8 i 16V
1.8 i 16V 4x4
1.8 TD
2.0 i 16V
2.0 i 16V 4x4
2.5 i 24V
1993/01 - 1996/08NGA 132 hp 97 kW 2 L Petrol
NGA 136 hp 100 kW 2 L Petrol
RFM 88 hp 65 kW 1.8 L Diesel
RFM 90 hp 66 kW 1.8 L Diesel
RFN 88 hp 65 kW 1.8 L Diesel
RFN 90 hp 66 kW 1.8 L Diesel
RKA 115 hp 85 kW 1.8 L Petrol
RKA 115 hp 85 kW 1.8 L Petrol
RKB 112 hp 82 kW 1.8 L Petrol
SEA 170 hp 125 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
FORDSCORPIO II
GNR
GGR
2.0 i
2.0 i 16V
2.3 i 16V
2.5 TD
2.9 i
1994/10 - 1998/08BRG 150 hp 110 kW 2.9 L Petrol
N3A 136 hp 100 kW 2 L Petrol
NSD 115 hp 85 kW 2 L Petrol
SCC 115 hp 85 kW 2.5 L Diesel
VM 125 hp 92 kW 2.5 L Diesel
Y5A 147 hp 108 kW 2.3 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
FORDSCORPIOII
GNR
GGR
2.0 i
2.0 i 16V
2.3 i 16V
2.5 TD
2.9 i
1994/10 - 1998/08BRG 150 hp 110 kW 2.9 L Petrol
N3A 136 hp 100 kW 2 L Petrol
NSD 115 hp 85 kW 2 L Petrol
SCC 115 hp 85 kW 2.5 L Diesel
VM 125 hp 92 kW 2.5 L Diesel
Y5A 147 hp 108 kW 2.3 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
