BREMBO 09.5843.11 (09584311) Brake Disc

BREMBO part 09.5843.11 (09584311) Brake Disc

BREMBO 09.5843.11 (09584311) Brake Disc

by BREMBO

Manufacturer Part Number: 09.5843.11 (09584311)

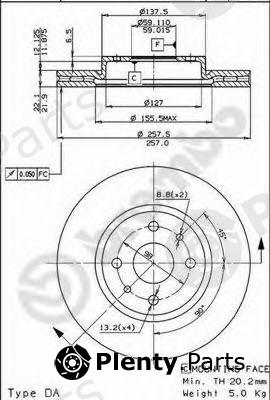

Сharacteristics:
  • for article number: 09.5843.11
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 257
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20,2
  • Height [mm]: 40,5
  • Centering Diameter [mm]: 59
  • Number of Holes: 4
  • Tightening Torque [Nm]: 98
  • Surface: Coated
  • Supplementary Article/Info 2: with screws
  • Pillar venting technology. The innovative Brembo patented pillar venting technology boosts overall disc cooling and increases up to more than 40% resistance to thermal cracking

Product Details

BrandBREMBO
BREMBO article (MPN)09.5843.11 (09584311)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424973, 424974, 4249L2
FIAT / LANCIA / ALFA51896288, 46542383, 51896287, 46401356, 46831041

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.5843.11 (09584311) Brake Disc offered by A.B.S., AP, ATE, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, DELPHI, Dr!ve+, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., GALFER, GIRLING, HANS PRIES, HELLA, HELLA PAGID, JURID, KAGER, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, MINTEX, OPTIMAL, PAGID, PATRON, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VALEO, VILLAR manufacturers

ManufacturerReference numbers
A.B.S.16422
AP24584V, 24584
ATE24012201971, 24032201971
BARUMBAR22197
BENDIX562178B, 562178BC
BLUE PRINTADA104369, ADP154303, ADL144306
BORG & BECKBBD5086
BOSCH0986478639, 0986479B43
Brake ENGINEERINGDI955526
BRECOBV8164, BS8164
BREMBO09.5843.10
DELPHIBG3574
Dr!ve+DP1010110846
FEBI BILSTEIN22927
FERODODRF762, DDF762
FOMARFO2534
fri.tech.BD0679
GALFERB1G22201971
GIRLING6027341
HANS PRIES722598
HELLA8DD355103961, 8DD355103971
HELLA PAGID8DD355103-961, 8DD355103971
JURID562178J
KAGER370256
KEY PARTSKBD5086
KRAFT6043065
LPRL2121VR
MAGNETI MARELLI360406029400, 360406029401
MALÒ1110207
MAPCO15031
METELLI230407
MINTEXMDC1084
OPTIMALBS4430
PAGID51811
PATRONPBD2734
ROTINGERRT2946T5, RT2946
sbs16422, 1815203729, 1815202344, 1815209932, 1815201807, 1815202336
STARLINEPB2946C
SWAG70922927
TEMPLIN0311015640, 0311015645
TEXTAR92069600, 92069603, 92069605
TRUCKTEC AUTOMOTIVE2135002
TRUSTINGDF679
TRWDF2734
VALEO186590
VILLAR6281253

Vehicle fitment / BREMBO 09.5843.11 (09584311) Brake Disc compatibility

This product fits the following models: ALFA ROMEO MITO, CHRYSLER YPSILON, CITROËN NEMO, FIAT 500, FIAT 500 C, FIAT BRAVO II, FIAT DOBLO, FIAT DOBLO CARGO, FIAT FIORINO, FIAT IDEA, FIAT LINEA, FIAT PANDA, FIAT PUNTO, FIAT QUBO, FIAT RITMO III, FIAT STILO, FIAT STILO MULTI, LANCIA MUSA, LANCIA YPSILON, PEUGEOT BIPPER, PEUGEOT BIPPER TEPEE, etc. See all vehicles this product (BREMBO 09.5843.11 (09584311)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
ALFA ROMEOMITO
955
0.9
0.9 TwinAir
1.4
1.4 MultiAir
2008/09 - 199A6.000 95 hp 70 kW 1.4 L Petrol
350A1.000 78 hp 57 kW 1.4 L Petrol
955A1.000 78 hp 57 kW 1.4 L Petrol
955A1.000 78 hp 58 kW 1.4 L Petrol
955A9.000 69 hp 51 kW 1.4 L Petrol
199B6.000 101 hp 74 kW 0.9 L Petrol
199B6.000 105 hp 77 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
955A6.000 105 hp 77 kW 1.4 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
CHRYSLERYPSILON
0.9 Twinair
1.3 Multijet
2011/05 - 199B1.000 95 hp 70 kW 1.3 L Diesel
312A2.000 86 hp 63 kW 0.9 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNNEMO

AA
1.3 HDi 75
1.4
1.4 HDi
2008/02 - 8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel
FHZ(F13DTE5) 75 hp 55 kW 1.3 L Diesel
KFT(TU3A) 73 hp 54 kW 1.4 L Petrol
KFV(TU3A) 73 hp 54 kW 1.4 L Petrol
KFV(TU3A) 73 hp 54 kW 1.4 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
LCV / Van / Cargo
FIAT500
312
0.9
1.3 D Multijet
1.4
2007/10 - 169A3.000 100 hp 74 kW 1.4 L Petrol
199B1.000 95 hp 70 kW 1.3 L Diesel
199B6.000 105 hp 77 kW 0.9 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIAT500 C
312
0.9
1.3 D Multijet
1.4
2009/09 - 169A3.000 100 hp 74 kW 1.4 L Petrol
169A3.000 102 hp 75 kW 1.4 L Petrol
EAB 102 hp 75 kW 1.4 L Petrol
199B1.000 95 hp 70 kW 1.3 L Diesel
199B6.000 105 hp 77 kW 0.9 L Petrol
Front wheel
Convertible / cabrio
FIATBRAVO II
198
1.4
1.4 LPG
2007/04 - 192B2.000 90 hp 66 kW 1.4 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATDOBLO
223
119
1.3 D Multijet
1.4
1.6 16V
1.6 Natural Power
1.9 D Multijet
1.9 JTD

223AXD1A
223AXE1A
2001/10 - 182B6.000 103 hp 76 kW 1.6 L Petrol
182B9.000 100 hp 74 kW 1.9 L Diesel
223B2.000 100 hp 74 kW 1.9 L Diesel
186A9.000 120 hp 88 kW 1.9 L Diesel
223A7.000 105 hp 77 kW 1.9 L Diesel
223B1.000 105 hp 77 kW 1.9 L Diesel
223A9.000 84 hp 62 kW 1.3 L Diesel
350A1.000 77 hp 57 kW 1.4 L Petrol
Front wheel
MPV / Van / Minivan
FIATDOBLO CARGO
223
1.3 D Multijet
1.3 JTD 16V
1.3 JTD 16V Multijet
1.6 16V
1.6 Natural Power
1.9 JTD Multijet

223ZXD1A
2001/10 - 182B6.000 103 hp 76 kW 1.6 L Petrol
186A9.000 120 hp 88 kW 1.9 L Diesel
188A8.000 70 hp 51 kW 1.3 L Diesel
188A9.000 70 hp 51 kW 1.3 L Diesel
199A2.000 75 hp 55 kW 1.3 L Diesel
223A9.000 84 hp 62 kW 1.3 L Diesel
Front wheel
LCV / Van / Cargo / Small truck
FIATFIORINO
225
1.3 D Multijet
1.4
1.4 Natural Power
2007/11 - 199A2.000 75 hp 55 kW 1.3 L Diesel
199A9.000 75 hp 55 kW 1.3 L Diesel
350A1.000 78 hp 57 kW 1.4 L Petrol
KFT 73 hp 54 kW 1.4 L Petrol
KFV 73 hp 54 kW 1.4 L Petrol
Front wheel
LCV / Van / Cargo / Small truck
FIATIDEA
350
1.2 16V
1.3 JTD
1.4
1.4 16V
1.4 LPG
2003/12 - 188A5.000 80 hp 59 kW 1.2 L Petrol
188A9.000 70 hp 51 kW 1.3 L Diesel
192B2.000 90 hp 66 kW 1.4 L Petrol
350A1.000 77 hp 57 kW 1.4 L Petrol
350A1.000 78 hp 57 kW 1.4 L Petrol
843A1.000 95 hp 70 kW 1.4 L Petrol
Front wheel
MPV / Van / Minivan
FIATLINEA
323
1.3 D Multijet
1.4
2007/06 - 199A3.000 90 hp 66 kW 1.3 L Diesel
199A3.000 95 hp 70 kW 1.3 L Diesel
350A1.000 77 hp 57 kW 1.4 L Petrol
Front wheel
Sedan / Saloon
FIATPANDA
169
312
312
0.9
0.9 4x4
0.9 Natural Power
1.2 4x4
1.2 LPG
1.3 D Multijet
1.3 D Multijet 4x4
1.4
2004/10 - 169A1.000 75 hp 55 kW 1.3 L Diesel
169A5.000 75 hp 55 kW 1.3 L Diesel
188A8.000 70 hp 51 kW 1.3 L Diesel
188A9.000 70 hp 51 kW 1.3 L Diesel
169A3.000 100 hp 74 kW 1.4 L Petrol
169A4.000 69 hp 51 kW 1.2 L Petrol
199A1.000 75 hp 55 kW 1.3 L Diesel
199A9.000 75 hp 55 kW 1.3 L Diesel
199A1.000 75 hp 55 kW 1.3 L Diesel
199A9.000 75 hp 55 kW 1.3 L Diesel
225A2.000 80 hp 59 kW 1.3 L Diesel
312A8.000 80 hp 59 kW 1.3 L Diesel
312B2.000 80 hp 59 kW 1.3 L Diesel
199A9.000 75 hp 55 kW 1.3 L Diesel
312A2.000 78 hp 57 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
312A5.000 80 hp 59 kW 0.9 L Petrol
312A7.000 78 hp 57 kW 0.9 L Petrol
312A2.000 80 hp 59 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
312A7.000 90 hp 66 kW 0.9 L Petrol
AWD / 4WD
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
FIATPUNTO
188
1.8 130 HGT
188.738
.718
1999/09 - 183A1.000 130 hp 96 kW 1.8 L Petrol
188A6.000 130 hp 96 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATQUBO
225
1.3 D Multijet
1.4
1.4 Natural Power
2008/02 - 199A2.000 75 hp 55 kW 1.3 L Diesel
199A9.000 75 hp 55 kW 1.3 L Diesel
350A1.000 78 hp 57 kW 1.4 L Petrol
KFT 73 hp 54 kW 1.4 L Petrol
KFV 73 hp 54 kW 1.4 L Petrol
Front wheel
MPV / Van / Minivan
FIATRITMO III
198
1.4
1.4 LPG
2007/04 - 192B2.000 90 hp 66 kW 1.4 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATSTILO
192
1.2 16V
1.4 16V
1.6
1.6 16V

192XA1B
192XB1A
2001/10 - 2006/11182B6.000 103 hp 76 kW 1.6 L Petrol
182B6.000 136 hp 100 kW 1.6 L Petrol
188A5.000 80 hp 59 kW 1.2 L Petrol
192B2.000 90 hp 66 kW 1.4 L Petrol
843A1.000 95 hp 70 kW 1.4 L Petrol
192B3.000 105 hp 77 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATSTILO MULTI
192
1.4 16V
1.6 16V
2003/01 - 2008/08182B6.000 103 hp 76 kW 1.6 L Petrol
192B3.000 105 hp 77 kW 1.6 L Petrol
192B2.000 90 hp 66 kW 1.4 L Petrol
843A1.000 95 hp 70 kW 1.4 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
LANCIAMUSA
350
1.3 D Multijet
1.4
1.4 LPG
2004/10 - 2012/09188A9.000 70 hp 51 kW 1.3 L Diesel
192B2.000 90 hp 66 kW 1.4 L Petrol
350A1.000 78 hp 57 kW 1.4 L Petrol
843A1.000 95 hp 70 kW 1.4 L Petrol
350A1.000 78 hp 57 kW 1.4 L Petrol
Front wheel
MPV / Van / Minivan
LANCIAYPSILON
312
846
843
0.9 CNG
0.9 Twinair
1.2
1.3 D Multijet
1.3 JTD
1.3 Multijet
1.4
1.4 16V
1.4 LPG
2003/10 - 188A5.000 80 hp 59 kW 1.2 L Petrol
188A9.000 70 hp 51 kW 1.3 L Diesel
199A2.000 75 hp 55 kW 1.3 L Diesel
199A3.000 105 hp 77 kW 1.3 L Diesel
199A3.000 90 hp 66 kW 1.3 L Diesel
199B1.000 95 hp 70 kW 1.3 L Diesel
312A2.000 80 hp 59 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
312A5.000 80 hp 59 kW 0.9 L Petrol
312A2.000 86 hp 63 kW 0.9 L Petrol
350A1.000 78 hp 57 kW 1.4 L Petrol
843A1.000 95 hp 70 kW 1.4 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOTBIPPER
AA
1.3 HDi 75
1.4
1.4 HDi
2008/02 - 199A9.000 75 hp 55 kW 1.3 L Diesel
8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel
KFV(TU3A) 73 hp 54 kW 1.4 L Petrol
Front wheel
LCV / Van / Cargo
PEUGEOTBIPPER TEPEE
1.3 HDi 75
1.4
1.4 HDi
2008/04 - 199A9.000 75 hp 55 kW 1.3 L Diesel
8HS(DV4TED) 68 hp 50 kW 1.4 L Diesel
KFV(TU3A) 73 hp 54 kW 1.4 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
