BREMBO 09.7717.10 (09771710) Brake Disc

BREMBO part 09.7717.10 (09771710) Brake Disc

BREMBO 09.7717.10 (09771710) Brake Disc

by BREMBO

Manufacturer Part Number: 09.7717.10 (09771710)

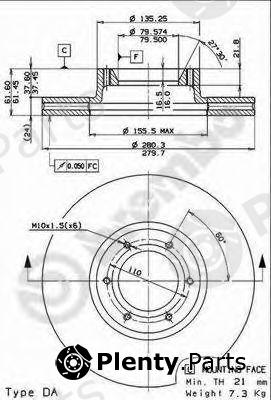

Сharacteristics:
  • for article number: 09.7717.10
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 21
  • Height [mm]: 61,5
  • Centering Diameter [mm]: 79,5
  • Number of Holes: 6

Product Details

BrandBREMBO
BREMBO article (MPN)09.7717.10 (09771710)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for OPEL, RENAULT, VAUXHALL vehicles

OE manufacturerOEM reference numbers
OPEL4500098, 9160398
RENAULT7700302128
VAUXHALL4500098, 9160398

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.7717.10 (09771710) Brake Disc offered by A.B.S., AP, ATE, AUTOMEGA, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMSI, BSF, CASALS, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KLAXCAR FRANCE, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, METELLI, MEYLE, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17036
AP24747
ATE24012401621
AUTOMEGA30770003020128
BARUMBAR24162
BENDIX562105BC, 562105B
BLUE PRINTADZ94319
BORG & BECKBBD4234
BOSCH0986478745
Brake ENGINEERINGDI955919
BRECOBS8338
BREMSIDBB067V
BSF11394V
CASALS55379, 55376
CIFAM800499C
DELPHIBG3553
DENCKERMANNB130080
E.T.F.196847
FARCOM230944
FEBI BILSTEIN22853
FENOXTB217747
FERODODDF1067C, DDF10671, DDF1067C1, DDF1067
FOMARFO2512
fri.tech.BD0665
FTEBS5163
GIRLING6041111
HANS PRIES207074
HELLA8DD355106611
HELLA PAGID8DD355106611
ICER78BD68472
JP GROUP1263102500, 1263102509
JURID562105J, 562105JC
KAGER370108
KAMOKA1032134
KAWE656710
KLAXCAR FRANCE25018Z
KRAFT6045410
LPRR1491V
MAGNETI MARELLI353614037240, 360406044200, 431602042320
MALÒ1110181
MAPCO15125
MAXGEAR191005
METELLI230499C, 230499
MEYLE6155216030
MINTEXMDC1397
NATIONALNBD1001
NECTOWN1098
NK313920, 203920
OPEN PARTSBDA187820
OPTIMALBS5670C, BS5670
PAGID52436
PILENGAV747
PROFIT50101067
PROTECHNICPRD2531
QUINTON HAZELLBDC5163
R BRAKE78RBD26847
REMSA656710
ROADHOUSE656710
ROTINGERRT2731T5, RT2731
SASIC4004293J
sbs17036, 1815203920, 1815203645, 1815203913, 1815313920, 1815202564
STARLINEPB2731
STELLOX60203920VSX
SWAG60922853
TEMPLIN0311083410
TEXTAR92097700, 89015100
TRISCAN812010149
TRUSTINGDF665
TRWDF4111
VAICOV4080041
VALEO186688
VEMA98458
WOKINGD656710
ZIMMERMANN430149100, 430149120

Vehicle fitment / BREMBO 09.7717.10 (09771710) Brake Disc compatibility

This product fits the following models: OPEL MOO, RENAULT MASTER II, VAUXHALL MOOI, etc. See all vehicles this product (BREMBO 09.7717.10 (09771710)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
OPELMOO
F9
H9
J9
U9
E9
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTi
2.5 DTI
2.8 DTI
3.0 DTi
3.0 DTI
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U754 99 hp 73 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S8U772 80 hp 59 kW 2.5 L Diesel
S9W700 114 hp 84 kW 2.8 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
Dump truck
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
RENAULTMASTER II
ED/HD/UD
FD
JD
1.9 dCi 80
1.9 dTI
2.2 dCI 90
2.5 D
2.5 dCi 120
2.8 dTI
1998/07 - F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q772 82 hp 60 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VAUXHALLMOOI
A Chassis/Cab ED
UD
HD
A Combi JD
A Van FD
1.9 DTI
2.2 DTI
2.5 CDTI
2.5 D
2.5 DTI
2.8 DTI
2.8 TDI
3.0 DTi
1998/10 - 2010/05F9Q770 80 hp 59 kW 1.9 L Diesel
F9Q774 82 hp 60 kW 1.9 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T722 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9T720 90 hp 66 kW 2.2 L Diesel
G9T750 90 hp 66 kW 2.2 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U650 146 hp 107 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U632 120 hp 88 kW 2.5 L Diesel
G9U632 146 hp 107 kW 2.5 L Diesel
G9U650 101 hp 74 kW 2.5 L Diesel
G9U650 120 hp 88 kW 2.5 L Diesel
G9U754 101 hp 74 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U724 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
G9U720 115 hp 84 kW 2.5 L Diesel
G9U750 115 hp 84 kW 2.5 L Diesel
G9U754 115 hp 84 kW 2.5 L Diesel
S8U770 80 hp 59 kW 2.5 L Diesel
S9W702 114 hp 84 kW 2.8 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3200 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
ZD3202 136 hp 100 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
