BREMBO 09.9130.75 (09913075) Brake Disc

BREMBO part 09.9130.75 (09913075) Brake Disc

BREMBO 09.9130.75 (09913075) Brake Disc

by BREMBO

Manufacturer Part Number: 09.9130.75 (09913075)

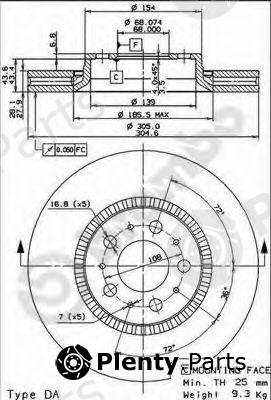

Сharacteristics:
  • for article number: 09.9130.75
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 305
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Height [mm]: 50,3
  • Centering Diameter [mm]: 68
  • Number of Holes: 5
  • Tightening Torque [Nm]: 140
  • Surface: Coated
  • Supplementary Article/Info 2: with screws
  • For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.
  • Für Deutschland und Österreich: Kontrollieren Sie bitte auf www.bremboparts.com, ob die für Ihr Fahrzeug erforderliche ABE vorhanden ist.

Product Details

BrandBREMBO
BREMBO article (MPN)09.9130.75 (09913075)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO272404, 2724045, 274170, 274559, 31262707, 9492715

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.9130.75 (09913075) Brake Disc offered by AP, ATE, BARUM, BENDIX, BOSCH, Brake ENGINEERING, BRECO, BREMBO, DELPHI, Dr!ve+, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., GIRLING, G.U.D, HELLA, HELLA PAGID, JP GROUP, JURID, KAGER, KAWE, KRAFT, MAGNETI MARELLI, MAPCO, METELLI, MINTEX, OPEN PARTS, OPTIMAL, PAGID, PATRON, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
AP24845, 54845V, X24845
ATE24032801231, 24012801231, 24112801231
BARUMBAR28123
BENDIX562173B
BOSCH0986478494, 0986479C59
Brake ENGINEERINGDI955887
BRECOBV8469, BS8469
BREMBO0991301X, 09913011, 09913010
DELPHIBG9514, BG9514C
Dr!ve+DP1010110787
FEBI BILSTEIN18050
FERODODRF1078, DDF1078
FOMARFO1423
fri.tech.BD0554
GIRLING6040535
G.U.DGDB128123
HELLA8DD355107061, 8DD355107071, 8DD355107072
HELLA PAGID8DD355107061, 8DD355107072, 8DD355107071
JP GROUP4963101009
JURID562173J
KAGER371412, 370545
KAWE659110
KRAFT6046392
MAGNETI MARELLI360406051800, 353616029240, 431602042710
MAPCO15966
METELLI230561C
MINTEXMDC1433
OPEN PARTSBDR184620
OPTIMALBS5910C, BS5910
PAGID50283
PATRONPBD4053
REMSA659110
ROADHOUSE659110
ROTINGERRT2799, RT2799T5
sbs1815204841, 17012, 1815204854
STARLINEPB2799C
SWAG55918050
TEMPLIN0311029690, 0311029695
TEXTAR92100603, 92100600, 92100605
TRUSTINGDF554
TRWDF4053S
VAICOV9580005
VALEO186741
VILLAR6281764
WOKINGD659110
ZIMMERMANN610370220, 610370252, 610370270

Vehicle fitment / BREMBO 09.9130.75 (09913075) Brake Disc compatibility

This product fits the following models: VOLVO S60 I, VOLVO S80 I, VOLVO V70 II, VOLVO V70II, VOLVO V70 XC, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (BREMBO 09.9130.75 (09913075)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVOS60 I
2.0 T
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
T5

CNG
LPG
2000/07 - 2010/04B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T2 130 hp 96 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS80 I
TS
XY
2.0
2.0 T
2.4
2.4 Bifuel
2.4 D
2.4 D5
2.4 LTP
2.4 T
2.4 T5 AWD
2.5 T
2.5 T AWD
2.5 TDI
2.8 T6
2.9
3.0
3.0 T6

CNG
LPG
1998/05 - 2006/07B5204T3 226 hp 166 kW 2 L Petrol
B5204T5 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T4 179 hp 132 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B6284T 272 hp 200 kW 2.8 L Petrol
B6294S 200 hp 147 kW 2.9 L Petrol
B6304S3 204 hp 150 kW 2.9 L Petrol
B6294S2 196 hp 144 kW 3 L Petrol
B6294T 272 hp 200 kW 3 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70 II
SW
2.0 T
2.3
2.3 AWD
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70II
SW
2.0 T
2.3
2.3 AWD
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
LPG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
B5254T2 211 hp 155 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 XC
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
VOLVOXC70 CROSS COUNTRY
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
1997/11 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
