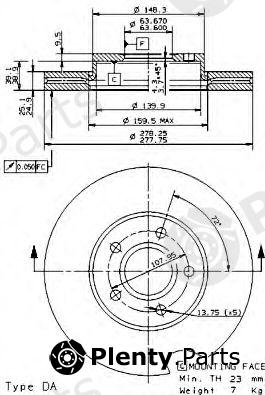

BREMBO 09.9464.14 (09946414) Brake Disc
BREMBO 09.9464.14 (09946414) Brake Disc
by BREMBOManufacturer Part Number: 09.9464.14 (09946414)
- for article number: 09.9464.14
- Brake Disc Type: Internally Vented
- Diameter [mm]: 278
- Brake Disc Thickness [mm]: 25
- Minimum thickness [mm]: 23
- Height [mm]: 48,5
- Machining: High-carbon
- Centering Diameter [mm]: 63,5
- Number of Holes: 5
- Tightening Torque [Nm]: 100
Product Details
| Brand | BREMBO |
| BREMBO article (MPN) | 09.9464.14 (09946414) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD, VOLVO vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 1223663, 1223665, 1253729, 1253730, 1320352, 1373369, 1469082, 1501069, 1734696, DF4465, 1686723 |
| VOLVO | 274509, 31262718 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for BREMBO 09.9464.14 (09946414) Brake Disc offered by A.B.S., AP, ASHUKI, ATE, AUTOMEGA, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAISHIN, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, MAXGEAR, MENSAN, METELLI, METZGER, MEYLE, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, STOP, SWAG, TEMPLIN, TEXTAR, TRIALLI, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WILMINK GROUP, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17586 |
| AP | 24919E, 24919V |
| ASHUKI | M60630 |
| ATE | 24032501171, 24-0125-0117-1 |
| AUTOMEGA | 30107340696 |
| BENDIX | 562364BC, 562364B |
| BLUE PRINT | ADM54391 |
| BORG & BECK | BBD4451 |
| BOSCH | 0986479173 |
| Brake ENGINEERING | DI956450 |
| BRECK | BR345VA100 |
| BRECO | BV8508, BS8508 |
| BREMBO | 09.9464.11 |
| BREMSI | DBB222V |
| BSF | 11482V |
| CAR | 142.1143 |
| CIFAM | 800685 |
| DELPHI | BG3868C, BG3868 |
| DENCKERMANN | B130436 |
| DITAS | DFD1032 |
| Dr!ve+ | DP1010110854 |
| E.T.F. | 193963 |
| FEBI BILSTEIN | 24565 |
| FENOX | TB219068 |
| FERODO | DDF12221, DDF1222C1, DDF1222, DDF1222C |
| FOMAR | FO2684, FO2926 |
| fri.tech. | BD0985 |
| FTE | BS5486, BS5486B |
| GALFER | B1G22501171 |
| GIRLING | 6044651 |
| G.U.D | GDB125117 |
| HANS PRIES | 302335 |
| HELLA | 8DD355118921, 8DD355122932, 8DD355112171, 8DD355114141, 8DD355112161 |
| HELLA PAGID | 8DD355112171, 8DD355122932, 8DD355118921, 8DD355114141, 8DD355112161 |
| ICER | 78BD39632 |
| JP GROUP | 1563101609, 1563101600 |
| JURID | 562364JC, 562364J |
| KAGER | 371353, 371121 |
| KAISHIN | CBR220 |
| KAMOKA | 1032444 |
| KAWE | 6710.10 |
| KEY PARTS | KBD4451 |
| KRAFT | 6042206 |
| LPR | F1009V |
| MAGNETI MARELLI | 351176420500, 360704000900, 361302040136, 360406005400 |
| MALÒ | 1110212 |
| MAPCO | 25826 |
| MAXGEAR | 191266 |
| MENSAN | 020215 |
| METELLI | 230685 |
| METZGER | 6110070, 24919V |
| MEYLE | 5155215026, 5155215026PD |
| MINTEX | MDC1637, MDK0239, MDC1831 |
| MOTAQUIP | LVBD1081Z |
| NATIONAL | NBD1258 |
| NECTO | WN1240 |
| NK | 202582 |
| OPTIMAL | BS-8056, BS8056C |
| PAGID | 54628, 54412 |
| PATRON | PBD4465 |
| PILENGA | 4254, V254 |
| PROFIT | 50101222 |
| PROTECHNIC | PRD2436 |
| QUINTON HAZELL | BDC5486 |
| R BRAKE | 78RBD23963 |
| REMSA | 671010 |
| ROADHOUSE | 671010 |
| ROTINGER | RT2959, RT2959T5, RT2961T5, RT2961 |
| SASIC | 6106010 |
| sbs | 1815204847, 1815202579, 1815204848, 1815204842, 1815202558, 1815204849, 1815202573, 17586, 1815202582 |
| STARLINE | PB2959 |
| STELLOX | 60204848VSX |
| STOP | 562364S |
| SWAG | 50924565 |
| TEMPLIN | 0311029780, 0311029785 |
| TEXTAR | 92141200, 92162805, 92162800, 92141205, 92141203, 92162803, 89008000 |
| TRIALLI | DF106101 |
| TRISCAN | 812010179 |
| TRUSTING | DF985 |
| TRW | DF4314, DF4465 |
| VAICO | V25-80017 |
| VALEO | 186819 |
| VEMA | 98666 |
| WAGNER LOCKHEED | WGR12221 |
| WILMINK GROUP | WG1054727 |
| WOKING | D671010 |
| ZIMMERMANN | 250135252, 250135220 |
Vehicle fitment / BREMBO 09.9464.14 (09946414) Brake Disc compatibility
This product fits the following models: FORD C-MAX, FORD FOCUS C-MAX, FORD FOCUS II, VOLVO C30, VOLVO C70 II, VOLVO S40 II, VOLVO V50, etc. See all vehicles this product (BREMBO 09.9464.14 (09946414)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | C-MAX DM2 | 1.6 1.6 TDCi 1.8 1.8 Flexifuel | 2007/02 - 2010/09 | G8DA 109 hp 80 kW 1.6 L Diesel G8DB 109 hp 80 kW 1.6 L Diesel G8DC 101 hp 74 kW 1.6 L Diesel G8DD 109 hp 80 kW 1.6 L Diesel GPDA 90 hp 66 kW 1.6 L Diesel HHDA 90 hp 66 kW 1.6 L Diesel HHDB 90 hp 66 kW 1.6 L Diesel MTDA 101 hp 74 kW 1.6 L Diesel HWDA 100 hp 74 kW 1.6 L Petrol HWDB 100 hp 74 kW 1.6 L Petrol SHDA 100 hp 74 kW 1.6 L Petrol SHDB 100 hp 74 kW 1.6 L Petrol SHDC 100 hp 74 kW 1.6 L Petrol Q7DA 125 hp 92 kW 1.8 L Petrol QQDA 125 hp 92 kW 1.8 L Petrol QQDB 125 hp 92 kW 1.8 L Petrol QQDC 122 hp 90 kW 1.8 L Petrol | Front wheel | MPV / Van / Minivan |
| FORD | FOCUS C-MAX | 1.6 1.6 TDCi 1.6 Ti 1.8 1.8 Flexifuel 1.8 TDCi 2.0 2.0 TDCi | 2003/10 - 2007/03 | AODA 145 hp 107 kW 2 L Petrol AODB 145 hp 107 kW 2 L Petrol SYDA 145 hp 107 kW 2 L Petrol CSDA 120 hp 88 kW 1.8 L Petrol CSDB 120 hp 88 kW 1.8 L Petrol Q7DA 125 hp 92 kW 1.8 L Petrol QQDA 125 hp 92 kW 1.8 L Petrol QQDB 125 hp 92 kW 1.8 L Petrol QQDC 122 hp 90 kW 1.8 L Petrol G6DA 136 hp 100 kW 2 L Diesel G6DB 136 hp 100 kW 2 L Diesel G6DC 133 hp 98 kW 2 L Diesel G6DD 136 hp 100 kW 2 L Diesel G6DE 133 hp 98 kW 2 L Diesel G6DF 133 hp 98 kW 2 L Diesel G6DG 136 hp 100 kW 2 L Diesel G8DA 109 hp 80 kW 1.6 L Diesel G8DB 109 hp 80 kW 1.6 L Diesel HHDA 90 hp 66 kW 1.6 L Diesel HHDB 90 hp 66 kW 1.6 L Diesel HWDA 100 hp 74 kW 1.6 L Petrol HWDB 100 hp 74 kW 1.6 L Petrol HXDA 115 hp 85 kW 1.6 L Petrol SIDA 115 hp 85 kW 1.6 L Petrol KKDA 115 hp 85 kW 1.8 L Diesel Q7DA 125 hp 92 kW 1.8 L Petrol | Front wheel | MPV / Van / Minivan |
| FORD | FOCUS II DA | 1.4 1.6 1.6 LPG 1.6 TDCi 1.6 Ti 1.8 1.8 Flexifuel 1.8 TDCi 2.0 2.0 CNG 2.0 LPG 2.0 TDCi | 2004/07 - 2012/09 | 131 hp 96 kW 1.8 L Petrol Q7DA 125 hp 92 kW 1.8 L Petrol 132 hp 97 kW 1.8 L Petrol Q7DA 125 hp 92 kW 1.8 L Petrol AODA 145 hp 107 kW 2 L Petrol AODB 145 hp 107 kW 2 L Petrol AODA 145 hp 107 kW 2 L Petrol AODB 145 hp 107 kW 2 L Petrol AODE 145 hp 107 kW 2 L Petrol ASDA 80 hp 59 kW 1.4 L Petrol ASDB 80 hp 59 kW 1.4 L Petrol G6DA 136 hp 100 kW 2 L Diesel G6DB 136 hp 100 kW 2 L Diesel G6DD 136 hp 100 kW 2 L Diesel G8DA 109 hp 80 kW 1.6 L Diesel G8DA 110 hp 81 kW 1.6 L Diesel G8DB 109 hp 80 kW 1.6 L Diesel G8DC 100 hp 74 kW 1.6 L Diesel G8DD 109 hp 80 kW 1.6 L Diesel G8DE 109 hp 80 kW 1.6 L Diesel G8DF 109 hp 80 kW 1.6 L Diesel GPDA 90 hp 66 kW 1.6 L Diesel GPDC 90 hp 66 kW 1.6 L Diesel HHDA 90 hp 66 kW 1.6 L Diesel HHDB 90 hp 66 kW 1.6 L Diesel MTDA 100 hp 74 kW 1.6 L Diesel G8DA 109 hp 80 kW 1.6 L Diesel G8DB 109 hp 80 kW 1.6 L Diesel G8DC 100 hp 74 kW 1.6 L Diesel G8DD 109 hp 80 kW 1.6 L Diesel G8DE 109 hp 80 kW 1.6 L Diesel G8DF 109 hp 80 kW 1.6 L Diesel GPDA 90 hp 66 kW 1.6 L Diesel GPDB 90 hp 66 kW 1.6 L Diesel GPDC 90 hp 66 kW 1.6 L Diesel HHDA 90 hp 66 kW 1.6 L Diesel HHDB 90 hp 66 kW 1.6 L Diesel MTDA 100 hp 74 kW 1.6 L Diesel G8DA 109 hp 80 kW 1.6 L Diesel G8DB 109 hp 80 kW 1.6 L Diesel G8DC 100 hp 74 kW 1.6 L Diesel G8DD 109 hp 80 kW 1.6 L Diesel G8DE 109 hp 80 kW 1.6 L Diesel G8DF 109 hp 80 kW 1.6 L Diesel HHDA 90 hp 66 kW 1.6 L Diesel HHDB 90 hp 66 kW 1.6 L Diesel MTDA 100 hp 74 kW 1.6 L Diesel HWDA 100 hp 74 kW 1.6 L Petrol HWDB 100 hp 74 kW 1.6 L Petrol SHDA 100 hp 74 kW 1.6 L Petrol SHDB 100 hp 74 kW 1.6 L Petrol SHDC 100 hp 74 kW 1.6 L Petrol HXDA 115 hp 85 kW 1.6 L Petrol HXDB 115 hp 85 kW 1.6 L Petrol HXDA 115 hp 85 kW 1.6 L Petrol HXDB 115 hp 85 kW 1.6 L Petrol SIDA 115 hp 85 kW 1.6 L Petrol IXDA 110 hp 81 kW 2 L Diesel KKDA 115 hp 85 kW 1.8 L Diesel KKDB 115 hp 85 kW 1.8 L Diesel Q7DA 125 hp 92 kW 1.8 L Petrol QQDB 125 hp 92 kW 1.8 L Petrol Q7DA 125 hp 92 kW 1.8 L Petrol QQDD 131 hp 96 kW 1.8 L Petrol QQDB 125 hp 92 kW 1.8 L Petrol SIDA 115 hp 85 kW 1.6 L Petrol SYDA 145 hp 107 kW 2 L Petrol | Front wheel | Convertible / cabrio Estate / Turnier / Vario / Wagon Hatchback / Sportback / Sport hatch Sedan / Saloon |
| VOLVO | C30 | 1.6 1.6 D 1.6 D2 1.8 1.8 FlexFuel 2.0 2.0 D 2.0 FlexFuel 2.4 i D3 D4 D5 Electric T5 | 2006/10 - 2012/12 | B4164S3 100 hp 74 kW 1.6 L Petrol B4184S11 125 hp 92 kW 1.8 L Petrol B4184S8 125 hp 92 kW 1.8 L Petrol B4204S3 145 hp 107 kW 2 L Petrol B4204S4 146 hp 107 kW 2 L Petrol B5244S4 170 hp 125 kW 2.4 L Petrol B5254T3 220 hp 162 kW 2.5 L Petrol B5254T7 230 hp 169 kW 2.5 L Petrol D4162T 115 hp 84 kW 1.6 L Diesel D4164T 109 hp 80 kW 1.6 L Diesel D4204T 136 hp 100 kW 2 L Diesel D5204T 177 hp 130 kW 2 L Diesel D5204T5 150 hp 110 kW 2 L Diesel D5244T13 180 hp 132 kW 2.4 L Diesel D5244T8 180 hp 132 kW 2.4 L Diesel D5244T9 163 hp 120 kW 2.4 L Diesel E400V1 112 hp 82 kW L Electric | Front wheel | Hatchback / Sportback / Sport hatch |
| VOLVO | C70 II | 2.0 D 2.4 2.4 D 2.4 i D3 D4 D5 | 2006/03 - 2013/06 | B5244S4 170 hp 125 kW 2.4 L Petrol B5244S5 140 hp 103 kW 2.4 L Petrol D4204T 136 hp 100 kW 2 L Diesel D5204T 177 hp 130 kW 2 L Diesel D5204T5 150 hp 110 kW 2 L Diesel D5244T13 180 hp 132 kW 2.4 L Diesel D5244T8 180 hp 132 kW 2.4 L Diesel D5244T9 163 hp 120 kW 2.4 L Diesel | Front wheel | Convertible / cabrio |
| VOLVO | S40 II MS | 1.6 1.6 D 1.6 D2 1.8 1.8 FlexFuel 2.0 2.0 D 2.0 D4 2.0 F 2.4 2.4 AWD 2.4 D5 D3 D4 T5 T5 AWD | 2004/01 - | B4164S3 101 hp 74 kW 1.6 L Petrol B4184S11 125 hp 92 kW 1.8 L Petrol B4184S8 125 hp 92 kW 1.8 L Petrol B4204S3 146 hp 107 kW 2 L Petrol B4204S4 146 hp 107 kW 2 L Petrol B5244S4 170 hp 125 kW 2.4 L Petrol B5244S4 170 hp 125 kW 2.4 L Petrol B5244S5 140 hp 103 kW 2.4 L Petrol B5254T3 220 hp 162 kW 2.5 L Petrol B5254T7 230 hp 169 kW 2.5 L Petrol D4162T 115 hp 84 kW 1.6 L Diesel D4164T 110 hp 81 kW 1.6 L Diesel D4204T 136 hp 100 kW 2 L Diesel D4204T2 131 hp 96 kW 2 L Diesel D5204T 177 hp 130 kW 2 L Diesel D5204T5 150 hp 110 kW 2 L Diesel D5244T13 179 hp 132 kW 2.4 L Diesel D5244T8 179 hp 132 kW 2.4 L Diesel | AWD / 4WD Front wheel | Sedan / Saloon |
| VOLVO | V50 MW | 1.6 1.6 D 1.6 D2 1.8 1.8 FlexFuel 2.0 2.0 D 2.0 FlexFuel 2.4 2.4 AWD 2.4 D5 2.4 Tdi D3 D4 T5 T5 AWD | 2004/04 - | B4164S3 101 hp 74 kW 1.6 L Petrol B4184S11 125 hp 92 kW 1.8 L Petrol B4184S8 125 hp 92 kW 1.8 L Petrol B4204S3 146 hp 107 kW 2 L Petrol B4204S4 146 hp 107 kW 2 L Petrol B5244S4 170 hp 125 kW 2.4 L Petrol B5244S4 170 hp 125 kW 2.4 L Petrol B5244S5 140 hp 103 kW 2.4 L Petrol B5254T3 220 hp 162 kW 2.5 L Petrol B5254T7 230 hp 169 kW 2.5 L Petrol D4162T 114 hp 84 kW 1.6 L Diesel D4164T 110 hp 81 kW 1.6 L Diesel D4204T 136 hp 100 kW 2 L Diesel D5204T 177 hp 130 kW 2 L Diesel D5204T5 150 hp 110 kW 2 L Diesel D5244T13 179 hp 132 kW 2.4 L Diesel D5244T8 179 hp 132 kW 2.4 L Diesel D5244T9 163 hp 120 kW 2.4 L Diesel | AWD / 4WD Front wheel | Estate / Turnier / Vario / Wagon |
