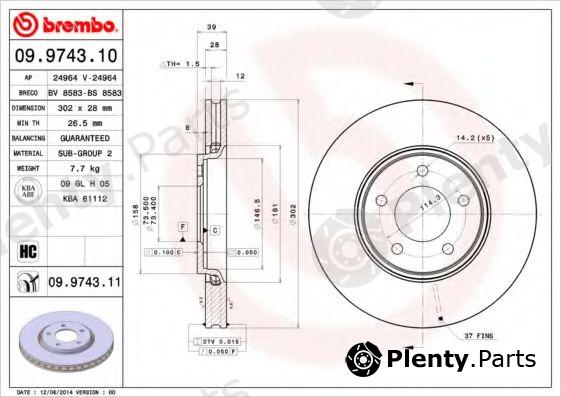

BREMBO 09.9743.10 (09974310) Brake Disc

BREMBO part 09.9743.10 (09974310) Brake Disc

BREMBO 09.9743.10 (09974310) Brake Disc

by BREMBO

Manufacturer Part Number: 09.9743.10 (09974310)

Сharacteristics:
  • for article number: 09.9743.10
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 302
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26,5
  • Height [mm]: 39
  • Machining: High-carbon
  • Centering Diameter [mm]: 73,5
  • Number of Holes: 5
  • Tightening Torque [Nm]: 129

Product Details

BrandBREMBO
BREMBO article (MPN)09.9743.10 (09974310)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER vehicles

OE manufacturerOEM reference numbers
CHRYSLER4683918, 4683918AB

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.9743.10 (09974310) Brake Disc offered by A.B.S., AP, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FOMAR, fri.tech., GIRLING, HELLA, HELLA PAGID, ICER, JAPANPARTS, JAPKO, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LPR, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, R BRAKE, REMSA, ROADHOUSE, ROTINGER, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17354
AP24964
ASHIKA6009992
ASHUKIUS104301
ATE24.0128-0147.1
BENDIX562292B, 562292BC
BLUE PRINTADA104301
BORG & BECKBBD4275
BOSCH0986479117
Brake ENGINEERINGDI956146S, DI956146
BRECOBS8583
BREMSIDBB372V
BSF11445V
CIFAM800780C
DELPHIBG3716
DENCKERMANNB130443
Dr!ve+DP1010110368
E.T.F.195111
EUROBRAKE5815209312
FARCOM230979
FEBI BILSTEIN28171
FERODODDF1459, DDF1372, DDF1372C, DDF1372-1
FOMARFO4005
fri.tech.BD0971
GIRLING6043461
HELLA8DD355107-881
HELLA PAGID8DD355107881
ICER78BD39182
JAPANPARTSDI-992
JAPKO60992
JP GROUP5063100409
JURATEKCHR102
JURID562292JC, 562292J
KAGER371115
KAMOKA103269
KAWE660210
KRAFT6048570
LPRC3002V
MAGNETI MARELLI360406087400
MAPCO25993
MDRMFD2992
METELLI230780C, 230780
METZGER660210, 6110622
MINTEXMDC1554
NATIONALNBD1154
NECTOWN1341
NK319312, 209312
OPEN PARTSBDA198120, BDR198120
OPTIMALBS-7650
PAGID50331
PATRONPBD4346
PILENGAV642
PROTECHNICPRD2667
R BRAKE78RBD23918
REMSA660210
ROADHOUSE6602.10
ROTINGERRT20160T5, RT20160
sbs17354, 1815319312, 1815203263, 1815209312, 1815203057
STARLINEPB20160
STELLOX60209987SX
SWAG14928171
TEMPLIN0311013730
TEXTAR92108200, 92108203
TRISCAN8120101011
TRUSTINGDF971
TRWDF4346
VAICOV3380003
VALEO197068, 197233
VEMA98656
WAGNER LOCKHEEDWGR13721
WOKINGD660210
ZIMMERMANN155390220, 155390200, 155390252

Vehicle fitment / BREMBO 09.9743.10 (09974310) Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, DODGE CARA, etc. See all vehicles this product (BREMBO 09.9743.10 (09974310)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.3 Flex-Fuel
3.8
3.8 AWD
2000/02 - 2008/12EDK 120 hp 88 kW 2.5 L Diesel
ENJ 141 hp 105 kW 2.5 L Diesel
EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
DODGECARA
RG
2.4
3.3
3.3 AWD
3.8
3.8 AWD
3.8 Turbo AWD
2000/02 - 2007/12EDZ 151 hp 111 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 179 hp 132 kW 3.3 L Petrol
EGH 208 hp 153 kW 3.8 L Petrol
EGH 209 hp 154 kW 3.8 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
