BREMBO 09.9931.14 (09993114) Brake Disc
BREMBO 09.9931.14 (09993114) Brake Disc
by BREMBOManufacturer Part Number: 09.9931.14 (09993114)

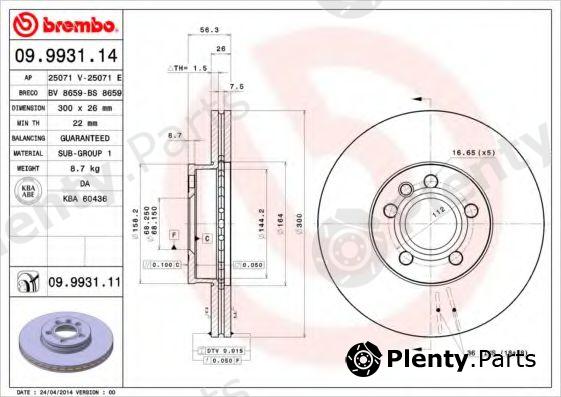

- for article number: 09.9931.14
- Brake Disc Type: Internally Vented
- Diameter [mm]: 300
- Brake Disc Thickness [mm]: 26
- Minimum thickness [mm]: 22
- Height [mm]: 56,3
- Centering Diameter [mm]: 68,2
- Number of Holes: 5
- Tightening Torque [Nm]: 170
Product Details
| Brand | BREMBO |
| BREMBO article (MPN) | 09.9931.14 (09993114) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD, VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 1141782 |
| VAG | 09.9931.14, 7M3615301A, 7D0615301B |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for BREMBO 09.9931.14 (09993114) Brake Disc offered by A.B.S., AP, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECK, BRECO, BREMBO, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., GIRLING, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NIBK, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 17355 |
| AP | 25071E |
| ATE | 24032601151, 24.0126-0115.1, 24112601151 |
| AUTOMEGA | 30101410782, 3061503017M3A, 1061503017M3A |
| BARUM | BAR26115 |
| BENDIX | 562198B, 562382BC, 562382B |
| BORG & BECK | BBD4250 |
| BOSCH | 0986479037 |
| Brake ENGINEERING | DI956032, DI956142, DI956142S |
| BRECK | BR386VA100 |
| BRECO | BS8659 |
| BREMBO | 09993111 |
| BREMSI | DBB159S |
| BSF | 11475V |
| CIFAM | 800736C |
| DELPHI | BG3696 |
| DENCKERMANN | B130447 |
| Dr!ve+ | DP1010110336 |
| E.T.F. | 191531 |
| FEBI BILSTEIN | 26118 |
| FENOX | TB219067 |
| FERODO | DDF1559, DDF15591, DDF1559C1, DDF1296, DDF1559C, DDF1159 |
| FOMAR | FO2598 |
| fri.tech. | BD0807 |
| GIRLING | 6043231 |
| G.U.D | GDB126115 |
| HANS PRIES | 109523 |
| HELLA | 8DD355108081, 8DD355108071, 8DD355108082 |
| HELLA PAGID | 8DD355108081, 8DD355108071, 8DD355108082 |
| ICER | 78BD15312 |
| JP GROUP | 1163104709, 1163104700 |
| JURATEK | VAG111 |
| JURID | 562382J, 562198J, 562382JC |
| KAGER | 371154 |
| KAMOKA | 1033118, 1031109 |
| KAWE | 666010 |
| KEY PARTS | KBD4250 |
| KRAFT | 6040410 |
| LPR | F1004V |
| MAGNETI MARELLI | 351583920500, 431602042740, 361302040320, 360406009400 |
| MALÒ | 1110066 |
| MAPCO | 15879 |
| METELLI | 230736C, 230736 |
| METZGER | 25071V, 6110178 |
| MEYLE | 1155211086, 1155211086PD |
| MINTEX | MDC1542 |
| NATIONAL | NBD1156 |
| NIBK | RN1389 |
| OPTIMAL | BS-8016, BS8016C |
| PAGID | 50347 |
| PATRON | PBD4323 |
| PILENGA | V856 |
| PROTECHNIC | PRD2627 |
| R BRAKE | 78RBD21531 |
| REMSA | 6660.10 |
| ROADHOUSE | 666010 |
| ROTINGER | RT20049T5, RT20049 |
| SASIC | 6106033 |
| sbs | 1815202552, 1815204783, 1815202510, 17355 |
| STARLINE | PB20049 |
| STELLOX | 60204772VSX |
| SWAG | 32926118 |
| TEMPLIN | 0311080960, 0311080965, 031102600260 |
| TEXTAR | 92109803, 92109800 |
| TRISCAN | 812010172C, 812010172 |
| TRUSTING | DF807 |
| TRW | DF4323 |
| VAICO | V1080075 |
| VALEO | 186749, 197239 |
| VEMA | 98575 |
| WAGNER LOCKHEED | WGR15591 |
| WOKING | D666010 |
| ZIMMERMANN | 250134652, 600.3214.00, 600321452, 250134620, 600321420 |
Vehicle fitment / BREMBO 09.9931.14 (09993114) Brake Disc compatibility
This product fits the following models: FORD GALAXY, SEAT ALHAMBRA, VW EURO CARAVELLE IV, VW EURO IV, VW SHARAN, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (BREMBO 09.9931.14 (09993114)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | GALAXY WGR | 1.9 TDI 2.0 i 2.3 16V | 1995/03 - 2006/05 | 1Z 90 hp 66 kW 1.9 L Diesel AHU 90 hp 66 kW 1.9 L Diesel ANU 90 hp 66 kW 1.9 L Diesel ASZ 130 hp 96 kW 1.9 L Diesel AUY 115 hp 85 kW 1.9 L Diesel E5SA 146 hp 107 kW 2.3 L Petrol E5SB 140 hp 103 kW 2.3 L Petrol Y5B 146 hp 107 kW 2.3 L Petrol NSE 116 hp 85 kW 2 L Petrol ZVSA 116 hp 85 kW 2 L Petrol | Front wheel | MPV / Van / Minivan |
| SEAT | ALHAMBRA 7V8 7V9 | 1.8 T 20V 1.9 TDI 1.9 TDI 4motion 2.0 i 2.0 TDI | 1996/04 - 2010/03 | 1Z 90 hp 66 kW 1.9 L Diesel AFN 110 hp 81 kW 1.9 L Diesel AHU 90 hp 66 kW 1.9 L Diesel ANU 90 hp 66 kW 1.9 L Diesel ASZ 131 hp 96 kW 1.9 L Diesel AUY 115 hp 85 kW 1.9 L Diesel AVG 110 hp 81 kW 1.9 L Diesel BTB 150 hp 110 kW 1.9 L Diesel BVK 115 hp 85 kW 1.9 L Diesel ADY 115 hp 85 kW 2 L Petrol ATM 115 hp 85 kW 2 L Petrol AJH 150 hp 110 kW 1.8 L Petrol AWC 150 hp 110 kW 1.8 L Petrol AUY 115 hp 85 kW 1.9 L Diesel BVK 115 hp 85 kW 1.9 L Diesel BRT 140 hp 103 kW 2 L Diesel | AWD / 4WD Front wheel | MPV / Van / Minivan |
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 | 1990/09 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | SHARAN 7M8 7M9 7M6 | 1.8 T 20V 1.9 TDI 2.0 2.0 16V 2.0 LPG 2.0 TDI | 1995/09 - 2010/03 | 150 hp 110 kW 2 L Petrol 1Z 90 hp 66 kW 1.9 L Diesel AHU 90 hp 66 kW 1.9 L Diesel ANU 90 hp 66 kW 1.9 L Diesel ASZ 130 hp 96 kW 1.9 L Diesel AUY 115 hp 85 kW 1.9 L Diesel BVK 115 hp 85 kW 1.9 L Diesel ADY 115 hp 85 kW 2 L Petrol ATM 115 hp 85 kW 2 L Petrol AJH 150 hp 110 kW 1.8 L Petrol AWC 150 hp 110 kW 1.8 L Petrol ATM 115 hp 85 kW 2 L Petrol BRT 140 hp 103 kW 2 L Diesel BVH 136 hp 100 kW 2 L Diesel | Front wheel | MPV / Van / Minivan |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 | 1990/09 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 | 1990/09 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 | 1990/09 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
