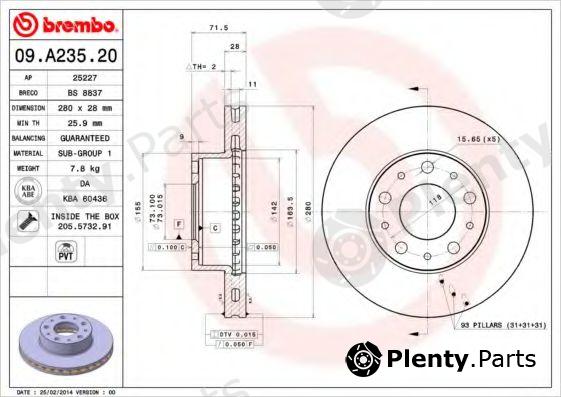

BREMBO 09A23520 Brake Disc

BREMBO part 09A23520 Brake Disc

BREMBO 09A23520 Brake Disc

by BREMBO

Manufacturer Part Number: 09A23520

Сharacteristics:
  • for article number: 09.A235.20
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,9
  • Height [mm]: 71,5
  • Centering Diameter [mm]: 73
  • Number of Holes: 5
  • Tightening Torque [Nm]: 160
  • Supplementary Article/Info 2: with screws
  • Pillar venting technology. The innovative Brembo patented pillar venting technology boosts overall disc cooling and increases up to more than 40% resistance to thermal cracking

Product Details

BrandBREMBO
BREMBO article (MPN)09A23520
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424929, 424928, 1611842080, 4249K2, 1607872180
FIAT / LANCIA / ALFA51848620, 51705749, 51740246, 51848621

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09A23520 Brake Disc offered by A.B.S., ATE, BORG & BECK, BOSCH, BSF, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FOMAR, fri.tech., GIRLING, HANS PRIES, HELLA, HELLA PAGID, ICER, KAGER, KAMOKA, KRAFT, LPR, MAGNETI MARELLI, MALÒ, MAPCO, METELLI, METZGER, MINTEX, OPEN PARTS, OPTIMAL, PAGID, R BRAKE, ROTINGER, STELLOX, TEMPLIN, TEXTAR, TRUSTING, TRW, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17740
ATE24012802131
BORG & BECKBBD4608
BOSCH0986479313, 0986479B99
BSF11497V
CIFAM800884C
DELPHIBG4060, BG4059
DENCKERMANNB130292
Dr!ve+DP1010110548
E.T.F.197412
FOMARFO2698
fri.tech.BD1224
GIRLING6047715
HANS PRIES722458
HELLA8DD355113691
HELLA PAGID8DD355113691
ICER78BD56222
KAGER371200
KAMOKA103139
KRAFT6045909
LPRP1009V
MAGNETI MARELLI360407100100
MALÒ1110126
MAPCO15332
METELLI230884C
METZGER6110354, 6101510
MINTEXMDC1849, MDC2685
OPEN PARTSBDA243820
OPTIMALBS8382
PAGID55750, 54572
R BRAKE78RBD25622
ROTINGERRT20657T5, RT20657
STELLOX60209956SX
TEMPLIN0311080365, 031102600080
TEXTAR92157200, 92275003, 92157203
TRUSTINGDF1224
TRWDF4771S
ZIMMERMANN230237320

Vehicle fitment / BREMBO 09A23520 Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (BREMBO 09A23520) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
110 Multijet 2
3 D
115 Multijet 2
0 D
120 Multijet 2
3 D
120 Multijet 2
3 D 4x4
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
150 Multijet 3
0 D
160 Multijet 3
0 D
180 Multijet 3
0 D
2006/07 - 250A1.000 116 hp 85 kW 2 L Diesel
250A2.000 116 hp 85 kW 2 L Diesel
4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AE3481G 113 hp 83 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CFA401A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 156 hp 115 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
