BREMBO 09.A417.11 (09A41711) Brake Disc

BREMBO part 09.A417.11 (09A41711) Brake Disc

BREMBO 09.A417.11 (09A41711) Brake Disc

by BREMBO

Manufacturer Part Number: 09.A417.11 (09A41711)

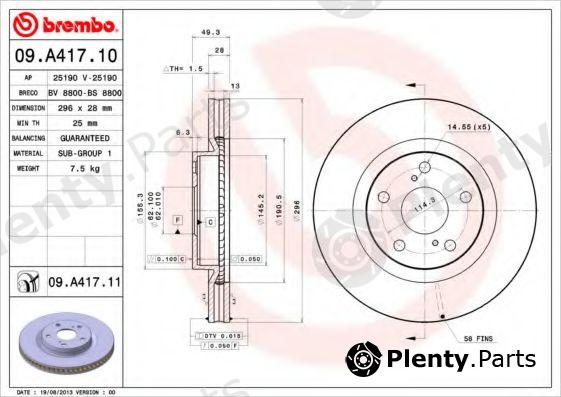

Сharacteristics:
  • for article number: 09.A417.11
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 296
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Height [mm]: 49,3
  • Centering Diameter [mm]: 62
  • Number of Holes: 5
  • Tightening Torque [Nm]: 103
  • Surface: Coated

Product Details

BrandBREMBO
BREMBO article (MPN)09.A417.11 (09A41711)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA4351202250, 4351206090, 4351233130, 4351233140, 4351242090, 4351206140, 4351242050

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.A417.11 (09A41711) Brake Disc offered by A.B.S., ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, Brake ENGINEERING, BREMBO, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, FOMAR, GIRLING, G.U.D, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JP GROUP, KAGER, MAGNETI MARELLI, MALÒ, METELLI, METZGER, MEYLE, MINTEX, NIPPARTS, OPEN PARTS, OPTIMAL, PAGID, PATRON, R BRAKE, ROTINGER, STARLINE, TEXTAR, TRW, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17807
ASHUKI09904612
ATE24012801591
BENDIX562621BC
BLUE PRINTADT343206
BORG & BECKBBD4606
Brake ENGINEERINGDI956407
BREMBO09A41711, 09.A417.10
CIFAM800946C
DELPHIBG4192, BG4114
DENCKERMANNB130604
Dr!ve+DP1010110511
FOMARFO4097
GIRLING6048285
G.U.DGDB128159
HELLA8DD355118561
HELLA PAGID8DD355118561
HERTH+BUSS JAKOPARTSJ3302011
ICER78BD31072
JP GROUP4863101809
KAGER371262, 371409
MAGNETI MARELLI600000086890, 360406078800
MALÒ1110117
METELLI230946C
METZGER6118910, 6110355
MEYLE30155210065PD
MINTEXMDC1850
NIPPARTSN3302164
OPEN PARTSBDR242420
OPTIMALBS-8498
PAGID54688
PATRONPBD4828
R BRAKE78RBD23107
ROTINGERRT20490, RT20490T5
STARLINEPB20490C
TEXTAR92168803
TRWDF4828S
ZIMMERMANN590281052, 590281020

Vehicle fitment / BREMBO 09.A417.11 (09A41711) Brake Disc compatibility

This product fits the following models: LEXUS ES, TOYOTA AURIS, TOYOTA AURIS S, TOYOTA BLADE, TOYOTA CAMRY, TOYOTA COROLLA, TOYOTA PRIUS ALPHA, TOYOTA PRIUS PLUS, TOYOTA PRIUS V, TOYOTA RAV 4 III, TOYOTA RAV 4 IV, etc. See all vehicles this product (BREMBO 09.A417.11 (09A41711)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSES
GSV4
ACV4
3.5
GSV40
2006/05 - 2012/062GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTAAURIS
NRE15
ZZE15
ADE15
ZRE15
NDE15
ZWE18
NZE18
ZRE18
1.8 Hybrid

ZWE186
2010/09 - 2ZR-FXE 99 hp 73 kW 1.8 L Hybrid
2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAAURIS S
ADE18
ZWE18
ZRE18
1.8 Hybrid
ZWE186
2013/07 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
TOYOTABLADE
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.8 Hybrid
2010/09 - 2012/092ZR-FXE 99 hp 73 kW 1.8 L Hybrid
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTACAMRY
XV4
2.0 VVT-i
2.4 VVTi
2.4 VVT-i Hybrid
2.4 VVTi Hybrid
2.5 VVTi
3.5
2006/01 - 2011/091AZ-FE 147 hp 108 kW 2 L Petrol
2AR-FE 175 hp 129 kW 2.5 L Petrol
2AZ-FE 158 hp 116 kW 2.4 L Petrol
2AZ-FE 167 hp 123 kW 2.4 L Petrol
2AZ-FE 173 hp 127 kW 2.4 L Petrol
2AZ-FXE 143 hp 105 kW 2.4 L Petrol
2AZ-FXE 150 hp 110 kW 2.4 L Hybrid
2GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTACOROLLA
NRE15
ZZE15
ADE15
ZRE15
NDE15
ZWE18
NZE18
ZRE18
1.8 Hybrid

ZWE186
2010/09 - 2ZR-FXE 99 hp 73 kW 1.8 L Hybrid
2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS ALPHA
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS PLUS
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS V
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTARAV 4 III
ACA3
ACE
ALA3
GSA3
ZSA3
2.0
2.0 4WD
2.0 VVT-i
2.0 VVT-i 4WD
2.2 D-4D
2.2 D-4D 4WD
2.2 D-CAT 4WD
2.4 VVTi
3.5 VVTi 4WD
2005/11 - 1AZ-FE 152 hp 112 kW 2 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 136 hp 100 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 177 hp 130 kW 2.2 L Diesel
2AZ-FE 170 hp 125 kW 2.4 L Petrol
2GR-FE 273 hp 201 kW 3.5 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
3ZR-FAE 158 hp 116 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTARAV 4 IV
WWA4
AVA4
ZSA4
ALA4
2.0 D4-D
2.0 D4-D 4WD
2.0 VVT-i 4WD
2.2 D4-D 4WD
2012/12 - 1AD-FTV 124 hp 91 kW 2 L Diesel
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
3ZR-FAE 151 hp 111 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
