BREMBO 09.A422.10 (09A42210) Brake Disc

BREMBO part 09.A422.10 (09A42210) Brake Disc

BREMBO 09.A422.10 (09A42210) Brake Disc

by BREMBO

Manufacturer Part Number: 09.A422.10 (09A42210)

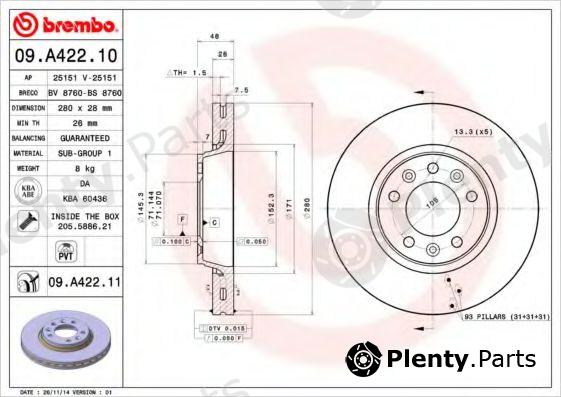

Сharacteristics:
  • for article number: 09.A422.10
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 280
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Height [mm]: 48
  • Centering Diameter [mm]: 71
  • Number of Holes: 5
  • Tightening Torque [Nm]: 100
  • Pillar venting technology. The innovative Brembo patented pillar venting technology boosts overall disc cooling and increases up to more than 40% resistance to thermal cracking

Product Details

BrandBREMBO
BREMBO article (MPN)09.A422.10 (09A42210)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA, TOYOTA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT424921, 424920, 424987, 4249J9
FIAT / LANCIA / ALFA9467548387, 1401416880, 9404249878
TOYOTASU001A1063

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.A422.10 (09A42210) Brake Disc offered by A.B.S., ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMSI, BSF, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, E.T.F., FERODO, fri.tech., GIRLING, HANS PRIES, HELLA, HELLA PAGID, JURATEK, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, LPR, MAGNETI MARELLI, MALÒ, METELLI, METZGER, MINTEX, MOTAQUIP, NATIONAL, OPEN PARTS, OPTIMAL, PAGID, PROTECHNIC, REMSA, ROADHOUSE, sbs, STARLINE, TEMPLIN, TEXTAR, TRUSTING, TRW, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17770
ATE24012802141
BLUE PRINTADT343298
BORG & BECKBBD4697
BOSCH0986479266
Brake ENGINEERINGDI956683
BREMSIDBB601V
BSF11517V
CIFAM800887C
DELPHIBG4084
DENCKERMANNB130507
Dr!ve+DP1010110552
E.T.F.192535
FERODODDF1601-1, DDF1601
fri.tech.BD1225
GIRLING6060205
HANS PRIES722486
HELLA8DD355113-661
HELLA PAGID8DD355113661
JURATEKCIT139
JURID562839JC
KAGER370733
KAMOKA103286
KAWE6105210
KEY PARTSKBD4697
LPRP1007V
MAGNETI MARELLI360406075600
MALÒ1110127
METELLI230887C
METZGER6105210, 6110655
MINTEXMDK0236, MDC1844
MOTAQUIPLVBD1289
NATIONALNBD1439
OPEN PARTSBDA238120
OPTIMALBS-8432
PAGID54569
PROTECHNICPRD2537
REMSA6105210
ROADHOUSE6105210
sbs1815203730, 17770, 1815201952
STARLINEPB4010
TEMPLIN0311080370
TEXTAR92156900
TRUSTINGDF1225
TRWDF6020S
VALEO197188
VEMA98720
WAGNER LOCKHEEDWGR16011
WOKINGD6105210
ZIMMERMANN440311600, 440311620

Vehicle fitment / BREMBO 09.A422.10 (09A42210) Brake Disc compatibility

This product fits the following models: CITROËN DISPATCH, CITROËN JUMPY, FIAT SCUDO, PEUGEOT EXPERT, PEUGEOT EXPERT TEPEE, TOYOTA PROACE, etc. See all vehicles this product (BREMBO 09.A422.10 (09A42210)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNDISPATCH
1.6 HDi 90 16V
1.6 HDi 90 8V
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
CITROËNJUMPY
1.6 HDi 90 16V
1.6 HDi 90 8V
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
FIATSCUDO
272
270
1.6 D Multijet
2007/01 - 9HU 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
PEUGEOTEXPERT

VF3A
VF3U
VF3X
1.6 HDi 90
1.6 HDi 90 16V
1.6 HDi 90 8V
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
PEUGEOTEXPERT TEPEE
VF3V
1.6 HDi 90 16V
1.6 HDi 90 8V
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
TOYOTAPROACE
1.6 D-4D
2.0 D-4D
2013/06 - 3WZ-TV 90 hp 66 kW 1.6 L Diesel
4WZ-FHV 163 hp 120 kW 2 L Diesel
4WZ-FTV 128 hp 94 kW 2 L Diesel
Front wheel
LCV / Van / Cargo / Small truck
