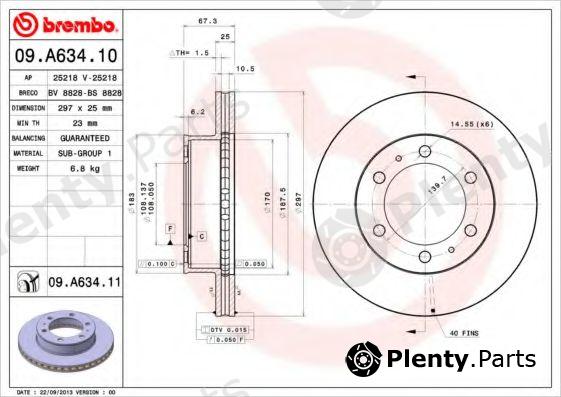

BREMBO 09.A634.10 (09A63410) Brake Disc

BREMBO part 09.A634.10 (09A63410) Brake Disc

BREMBO 09.A634.10 (09A63410) Brake Disc

by BREMBO

Manufacturer Part Number: 09.A634.10 (09A63410)

Сharacteristics:
  • for article number: 09.A634.10
  • Brake Disc Type: Internally Vented
  • Diameter [mm]: 297
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Height [mm]: 67,2
  • Centering Diameter [mm]: 108
  • Number of Holes: 6
  • Tightening Torque [Nm]: 112

Product Details

BrandBREMBO
BREMBO article (MPN)09.A634.10 (09A63410)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA435120K060, 43512-0K070

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for BREMBO 09.A634.10 (09A63410) Brake Disc offered by A.B.S., ASHUKI, ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BSF, CIFAM, DELPHI, FOMAR, fri.tech., GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, KAVO PARTS, LPR, MAGNETI MARELLI, METELLI, MINTEX, MOTAQUIP, NIBK, OPTIMAL, PAGID, PROTECHNIC, ROTINGER, TEMPLIN, TEXTAR, TRUSTING, TRW, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.18062
ASHUKIT60340
ATEDF4917
BLUE PRINTADT343211
BORG & BECKBBD4815
BOSCH0986479T10, 0986479A96
Brake ENGINEERINGDI956799
BSF11866V
CIFAM8001077C
DELPHIBG4211
FOMARFO4083
fri.tech.BD1289
GIRLING6049171
HELLA8DD355116821
HELLA PAGID8DD355116821
HERTH+BUSS JAKOPARTSJ3302001
KAVO PARTSBR9470, BR9470C
LPRT2066V
MAGNETI MARELLI360406094100, 600000086860
METELLI231077C
MINTEXMDC2184
MOTAQUIPLVBD1626
NIBKRN1319
OPTIMALBS9038
PAGID55226
PROTECHNICPRD2585
ROTINGERRT20410, RT20410T5
TEMPLIN0311028940
TEXTAR92222600
TRUSTINGDF1289
TRWDF4917
ZIMMERMANN590282020

Vehicle fitment / BREMBO 09.A634.10 (09A63410) Brake Disc compatibility

This product fits the following models: TOYOTA FORTUNER, TOYOTA HILUX, TOYOTA HILUX III, TOYOTA SW4, etc. See all vehicles this product (BREMBO 09.A634.10 (09A63410)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAFORTUNER
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2.7 VVTi
3.0 D
2004/06 - 2015/051KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 170 hp 125 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTAHILUX
VIGO III KUN
TGN
LAN
GGN
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2.7
2.7 4WD
3.0 D
3.0 D-4D 4WD
3.0 D 4WD

KUN16
KUN26
2005/08 - 1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 171 hp 126 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTAHILUX III
KUN
TGN
LAN
GGN
2.5 D-4D
2.5 D-4D 4WD
2.5 D 4WD
2.7
2.7 4WD
3.0 D
3.0 D-4D 4WD
3.0 D 4WD

KUN16
KUN26
2005/08 - 1KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 171 hp 126 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 120 hp 88 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2KD-FTV 144 hp 106 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Pickup truck / Pickup
TOYOTASW4
TGN6
KUN6
GGN6
TGN5
LAN5
KUN5
GGN5
2.5 D-4D 4WD
2.7 VVTi
3.0 D
2004/06 - 2015/051KD-FTV 163 hp 120 kW 3 L Diesel
1KD-FTV 170 hp 125 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2TR-FE 160 hp 118 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
