CAFFARO 05-06 (0506) Deflection/Guide Pulley, v-ribbed belt

CAFFARO part 05-06 (0506) Deflection/Guide Pulley, v-ribbed belt

CAFFARO 05-06 (0506) Deflection/Guide Pulley, v-ribbed belt

by CAFFARO

Manufacturer Part Number: 05-06 (0506)

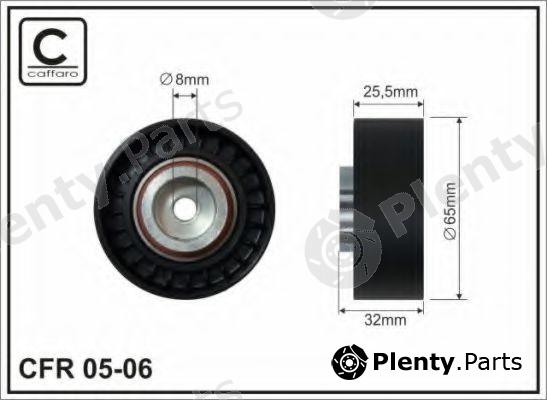

Сharacteristics:
  • Outer diameter [mm]: 65
  • Inner diameter [mm]: 8
  • Width [mm]: 25,5
  • Material: Plastic

Product Details

BrandCAFFARO
CAFFARO article (MPN)05-06 (0506)
Vehicle subsystemBelt Drive

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA, FORD, JAGUAR vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT1611423780, 5751.F1, 9678770180
FIAT / LANCIA / ALFA9658142680, 9678770180
FORD1117008, 1201178, 1731709, CC1Q19A216CA, XS7E19A216AC, XS7E19A216AD
JAGUARC2S27004, CC1Q19A216CA

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for CAFFARO 05-06 (0506) Deflection/Guide Pulley, v-ribbed belt offered by AUTLOG, BTA, DAYCO, FEBI BILSTEIN, GATES, INA, JP GROUP, MAGNETI MARELLI, OPTIMAL, RUVILLE, SKF, SWAG, TRICLO manufacturers

ManufacturerReference numbers
AUTLOGRT1351
BTAE2P5257BTA
DAYCOAPV2682
FEBI BILSTEIN24407
GATEST36124
INA532047010
JP GROUP1518302909
MAGNETI MARELLIMPQ0106
OPTIMAL0-N1392
RUVILLE55257
SKFVKM34030
SWAG50924407
TRICLO428855

Vehicle fitment / CAFFARO 05-06 (0506) Deflection/Guide Pulley, v-ribbed belt compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, FORD MONDEO III, FORD MONDEOIII, FORD MONDEO III CLIPPER, FORD NEO CUSTOM, FORD TRANSIT, FORD TRANSIT CUSTOM, FORD TRANSIT NEO, JAGUAR X-TYPE, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (CAFFARO 05-06 (0506)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2006/04 - 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.2 HDi 100
2.2 HDi 120
2.2 HDi 130
2006/04 - 4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
2006/07 - 4HV 100 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FORDMONDEO III
B4Y
B5Y
BWY
2.0 16V DI / TDDi / TDCi
2.0 16V TDDi / TDCi
2.0 TDCi
2.2 TDCi
2000/10 - 2007/03D5BA 90 hp 66 kW 2 L Diesel
SDBA 90 hp 66 kW 2 L Diesel
D6BA 115 hp 85 kW 2 L Diesel
HJBA 115 hp 85 kW 2 L Diesel
HJBB 115 hp 85 kW 2 L Diesel
HJBC 115 hp 85 kW 2 L Diesel
FMBA 130 hp 96 kW 2 L Diesel
N7BA 130 hp 96 kW 2 L Diesel
QJBA 155 hp 114 kW 2.2 L Diesel
QJBB 155 hp 114 kW 2.2 L Diesel
QJBC 150 hp 110 kW 2.2 L Diesel
QJBD 150 hp 110 kW 2.2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEOIII
B4Y
B5Y
BWY
2.0 16V DI / TDDi / TDCi
2.0 16V TDDi / TDCi
2.0 TDCi
2.2 TDCi
2000/10 - 2007/03D5BA 90 hp 66 kW 2 L Diesel
SDBA 90 hp 66 kW 2 L Diesel
D6BA 115 hp 85 kW 2 L Diesel
HJBA 115 hp 85 kW 2 L Diesel
HJBB 115 hp 85 kW 2 L Diesel
HJBC 115 hp 85 kW 2 L Diesel
FMBA 130 hp 96 kW 2 L Diesel
N7BA 130 hp 96 kW 2 L Diesel
QJBA 155 hp 114 kW 2.2 L Diesel
QJBB 155 hp 114 kW 2.2 L Diesel
QJBC 150 hp 110 kW 2.2 L Diesel
QJBD 150 hp 110 kW 2.2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
Sedan / Saloon
FORDMONDEO III CLIPPER
BWY
2.0 16V DI / TDDi / TDCi
2.0 16V TDDi / TDCi
2.0 TDCi
2.2 TDCi
2000/10 - 2007/03D5BA 90 hp 66 kW 2 L Diesel
SDBA 90 hp 66 kW 2 L Diesel
D6BA 115 hp 85 kW 2 L Diesel
HJBA 115 hp 85 kW 2 L Diesel
HJBB 115 hp 85 kW 2 L Diesel
HJBC 115 hp 85 kW 2 L Diesel
FMBA 130 hp 96 kW 2 L Diesel
N7BA 130 hp 96 kW 2 L Diesel
QJBA 155 hp 114 kW 2.2 L Diesel
QJBB 155 hp 114 kW 2.2 L Diesel
QJBC 150 hp 110 kW 2.2 L Diesel
QJBD 150 hp 110 kW 2.2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
FORDNEO CUSTOM
2.2 TDCi
2012/04 - CVFF 155 hp 114 kW 2.2 L Diesel
CYF4 125 hp 92 kW 2.2 L Diesel
CYFF 125 hp 92 kW 2.2 L Diesel
DRF4 100 hp 74 kW 2.2 L Diesel
DRFF 100 hp 74 kW 2.2 L Diesel
DRFG 100 hp 74 kW 2.2 L Diesel
Front wheel
Passenger Van / Wagon / Minibus
FORDTRANSIT

FA
FD
FB
FS
FZ
FC
FM
FN
2.0 DI
2.0 TDCi
2.2 TDCi

FAE
FAF
FAG
FE
FF
FE
FF
FG
FF
FE
FG
2000/08 - 2014/08ABFA 100 hp 74 kW 2 L Diesel
D3FA 75 hp 55 kW 2 L Diesel
F3FA 86 hp 63 kW 2 L Diesel
CYFA 125 hp 92 kW 2.2 L Diesel
CYFB 125 hp 92 kW 2.2 L Diesel
CYFC 125 hp 92 kW 2.2 L Diesel
CYFD 125 hp 92 kW 2.2 L Diesel
DRFA 100 hp 74 kW 2.2 L Diesel
DRFB 100 hp 74 kW 2.2 L Diesel
DRFC 100 hp 74 kW 2.2 L Diesel
DRFD 100 hp 74 kW 2.2 L Diesel
DRFE 100 hp 74 kW 2.2 L Diesel
P8FA 85 hp 63 kW 2.2 L Diesel
P8FB 85 hp 63 kW 2.2 L Diesel
PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 130 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
UHFC 140 hp 103 kW 2.2 L Diesel
FIFA 125 hp 92 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FORDTRANSIT CUSTOM
2.2 TDCi
2012/04 - CVFF 155 hp 114 kW 2.2 L Diesel
CYF4 125 hp 92 kW 2.2 L Diesel
CYFF 125 hp 92 kW 2.2 L Diesel
DRF4 100 hp 74 kW 2.2 L Diesel
DRFF 100 hp 74 kW 2.2 L Diesel
DRFG 100 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
FORDTRANSIT NEO
2.2 TDCi
2006/07 - 2014/08PGFA 140 hp 103 kW 2.2 L Diesel
PGFB 140 hp 103 kW 2.2 L Diesel
QVFA 110 hp 81 kW 2.2 L Diesel
QWFA 131 hp 96 kW 2.2 L Diesel
SRFA 115 hp 85 kW 2.2 L Diesel
SRFB 115 hp 85 kW 2.2 L Diesel
SRFC 115 hp 85 kW 2.2 L Diesel
SRFD 115 hp 85 kW 2.2 L Diesel
SRFE 115 hp 85 kW 2.2 L Diesel
UHFA 140 hp 103 kW 2.2 L Diesel
UHFB 140 hp 103 kW 2.2 L Diesel
Front wheel
Passenger Van / Wagon / Minibus
JAGUARX-TYPE
CF1
CF1
2.0 D
2.2 D
2003/07 - 2009/12FMBA 130 hp 96 kW 2 L Diesel
FMBB 130 hp 96 kW 2 L Diesel
R4-X404 130 hp 96 kW 2 L Diesel
LJ46G 146 hp 107 kW 2.2 L Diesel
LJ46G 150 hp 110 kW 2.2 L Diesel
LJ46G 155 hp 114 kW 2.2 L Diesel
Front wheel
Front wheel
Rear wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
PEUGEOTBOXER
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2006/04 - 120 hp 88 kW 2.2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2006/04 - 120 hp 88 kW 2.2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
