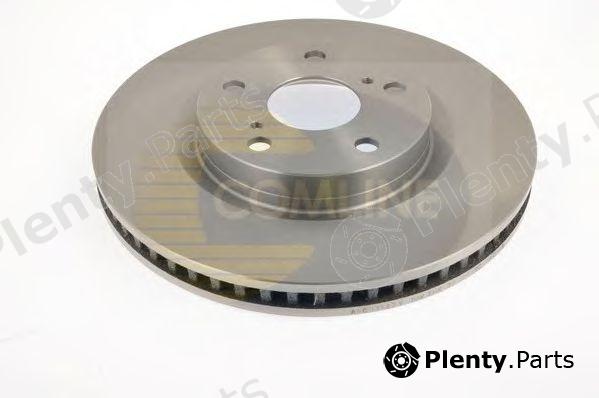

COMLINE ADC01147V Brake Disc

COMLINE part ADC01147V Brake Disc

COMLINE ADC01147V Brake Disc

by COMLINE

Manufacturer Part Number: ADC01147V

Сharacteristics:
  • Fitting Position: Front Axle
  • Height [mm]: 49,3
  • Brake Disc Type: Internally Vented
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25
  • Number of Bores: 2
  • Outer diameter [mm]: 296
  • Number of Holes: 5
  • Centering Diameter [mm]: 62
  • Bolt Hole Circle Ø [mm]: 114,3
  • Surface: Coated

Product Details

BrandCOMLINE
COMLINE article (MPN)ADC01147V
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA435122090, 4351242050

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for COMLINE ADC01147V Brake Disc offered by ACDelco, APEC braking, ASHIKA, ASHUKI, ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, DELPHI, FENOX, FERODO, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JAPANPARTS, JP GROUP, JURATEK, KAVO PARTS, LPR, MAGNETI MARELLI, MDR, MINTEX, MOTAQUIP, NATIONAL, NIPPARTS, NK, OPTIMAL, PAGID, PROFIT, QUINTON HAZELL, REMSA, sbs, TEXTAR, TRUSTING, TRW, VAICO, ZIMMERMANN manufacturers

ManufacturerReference numbers
ACDelcoAC3309D
APEC brakingDSK2514, DK6253
ASHIKA60-02-2006
ASHUKI09904612
ATE24.0128-0159.1
BLUE PRINTADT343206
BORG & BECKBBD4606
BOSCH986479428, 0986479768, 0986479428
Brake ENGINEERINGDI956407
DELPHIBG4192, BG4114
FENOXTB219005
FERODODDF1646
HELLA8DD355118561
HELLA PAGID8DD355118561
HERTH+BUSS JAKOPARTSJ3302011
JAPANPARTSDI-2006
JP GROUP4863101809
JURATEKTOY170
KAVO PARTSBR9472C, BR9472
LPRT2032V
MAGNETI MARELLI600000086890
MDRMFD22006, MFD22020
MINTEXMDC1850
MOTAQUIPLVBD1250Z
NATIONALNBD1455
NIPPARTSN3302164
NK2045117
OPTIMALBS8498
PAGID54688
PROFIT50101646
QUINTON HAZELLBDC5574
REMSA61189.1
sbs2045117, 18152045117
TEXTAR92168803
TRUSTINGDF1210
TRWDF4828S
VAICOV70-80030
ZIMMERMANN590281020, 590281052

Vehicle fitment / COMLINE ADC01147V Brake Disc compatibility

This product fits the following models: LEXUS ES, TOYOTA AURIS, TOYOTA AURIS S, TOYOTA BLADE, TOYOTA CAMRY, TOYOTA COROLLA, TOYOTA PRIUS ALPHA, TOYOTA PRIUS PLUS, TOYOTA PRIUS V, TOYOTA RAV 4 III, TOYOTA RAV 4 IV, etc. See all vehicles this product (COMLINE ADC01147V) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
LEXUSES
GSV4
ACV4
3.5
GSV40
2006/05 - 2012/062GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTAAURIS
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.8 Hybrid
2010/09 - 2012/092ZR-FXE 99 hp 73 kW 1.8 L Hybrid
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAAURIS S
ADE18
ZWE18
ZRE18
1.3
1.4 D-4D
1.6
1.8 Hybrid
2.0 D-4D
ADE186
NDE180
NRE180
ZRE185
ZWE186
2013/07 - 1AD-FTV 124 hp 91 kW 2 L Diesel
1ND-TV 90 hp 66 kW 1.4 L Diesel
1NR-FE 99 hp 73 kW 1.3 L Petrol
1ZR-FAE 132 hp 97 kW 1.6 L Petrol
2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
TOYOTABLADE
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.8 Hybrid
2010/09 - 2012/092ZR-FXE 99 hp 73 kW 1.8 L Hybrid
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTACAMRY
AVV5
XV5
MCV3
ACV3
XV3
XV4
2.0 VVT-i
2.4 VVTi
2.4 VVTi Hybrid
2.5
2.5 Altise
3.5
3.5 VVTi XLE

ASV50
2006/01 - 1AZ-FE 147 hp 108 kW 2 L Petrol
2AR-FE 181 hp 133 kW 2.5 L Petrol
2AZ-FE 158 hp 116 kW 2.4 L Petrol
2AZ-FE 167 hp 123 kW 2.4 L Petrol
2AZ-FXE 143 hp 105 kW 2.4 L Petrol
2GR-FE 268 hp 197 kW 3.5 L Petrol
2GR-FE 277 hp 204 kW 3.5 L Petrol
Front wheel
Sedan / Saloon
TOYOTACOROLLA
NRE15
ZZE15
ADE15
ZRE15
NDE15
1.8 Hybrid
2010/09 - 2012/092ZR-FXE 99 hp 73 kW 1.8 L Hybrid
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS ALPHA
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS PLUS
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTAPRIUS V
ZVW4
1.8 Hybrid
2011/05 - 2ZR-FXE 99 hp 73 kW 1.8 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
TOYOTARAV 4 III
ACA3
ACE
ALA3
GSA3
ZSA3
2.0
2.0 4WD
2.0 VVT-i
2.0 VVT-i 4WD
2.2 D-4D
2.2 D-4D 4WD
2.2 D-CAT 4WD
2.4 VVTi
2.4 VVTi 4WD
3.5 VVTi 4WD
2005/11 - 1AZ-FE 152 hp 112 kW 2 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 136 hp 100 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
2AD-FHV 177 hp 130 kW 2.2 L Diesel
2AZ-FE 170 hp 125 kW 2.4 L Petrol
2GR-FE 273 hp 201 kW 3.5 L Petrol
3ZR-FAE 148 hp 109 kW 2 L Petrol
3ZR-FAE 158 hp 116 kW 2 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
TOYOTARAV 4 IV
WWA4
AVA4
ZSA4
ALA4
2.0 D4-D 4WD
2.0 VVT-i 4WD
2.2 D4-D 4WD
2012/12 - 1AD-FTV 124 hp 91 kW 2 L Diesel
2AD-FHV 150 hp 110 kW 2.2 L Diesel
2AD-FTV 150 hp 110 kW 2.2 L Diesel
3ZR-FAE 151 hp 111 kW 2 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
