DELCO REMY 19024122 Starter
DELCO REMY 19024122 Starter
by DELCO REMYManufacturer Part Number: 19024122
- Version: Cat: KB Interch.
- Flange Hole Diameter [mm]: 146
- Bore Ø 3 [mm]: 15,5
- Flange Ø [mm]: 115
- Distance / Ø [mm]: 24,5
- Radius [mm]: 73
- Diameter [mm]: 127
- Voltage [V]: 24
- Rated Power [kW]: 6,6
- Rotation Direction: Clockwise rotation
- Number of Teeth: 11
- Material: Steel
- Length [mm]: 323,5
- Connector / Clamp: with 50(Jet) clamp
- Number of Thread Bores: 0
- Number of Bores: 3
- Polarity: Grounded
- Ground: G
- Module: 3
- Pressure Angle: 20
- Switch Position: 0
- SAE: 3
- Mounting: Flange
- Terminal 30: M12
- Terminal 31: M10
- Terminal 50: M6
- Treatment: oil sealed

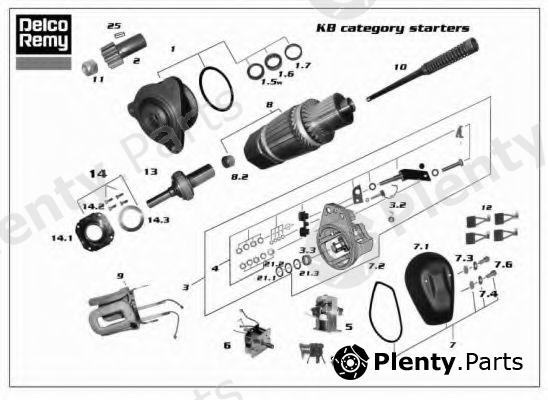

- See pictures, etc...
Product Details
| Brand | DELCO REMY |
| DELCO REMY article (MPN) | 19024122 |
| Vehicle subsystem | Starter System |
Original (OEM) part numbers
Suitable for IVECO vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| IVECO | 04839041, 2995124, 42498620, 4839041 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for DELCO REMY 19024122 Starter offered by ARTEC, AUTOTEAM, BOSCH, CASCO, CEVAM, DELCO REMY, EDR, ERA, EUROTEC, FARCOM, GKN-SPIDAN, HELLA, ISKRA, LAUBER, LETRIKA, LUCAS ELECTRICAL, MAGNETI MARELLI, MESSMER, MONARK, PRESTOLITE ELECTRIC, SANDO, STELLOX manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ARTEC | 48212163 |
| AUTOTEAM | SBO649A |
| BOSCH | 0986017853, 0986017850, 1785, 0001417064 |
| CASCO | CST10649RS, CST10649AS |
| CEVAM | 8118 |
| DELCO REMY | 19024124, DRS7850, 11790013 |
| EDR | 917850 |
| ERA | 220283 |
| EUROTEC | 11017850 |
| FARCOM | 103656 |
| GKN-SPIDAN | 4601 |
| HELLA | 8EA737676001, 737676-001 |
| ISKRA | 11139137, AZK5484 |
| LAUBER | 281163 |
| LETRIKA | AZK5484, 11139137 |
| LUCAS ELECTRICAL | LRS1906 |
| MAGNETI MARELLI | 943252690010, 943252690 |
| MESSMER | 220283 |
| MONARK | 081467064 |
| PRESTOLITE ELECTRIC | 860513, 860513GB |
| SANDO | 60106492, 60106490, 60106493 |
| STELLOX | 8802059SX |
Vehicle fitment / DELCO REMY 19024122 Starter compatibility
This product fits the following models: IVECO EUROSTAR, IVECO EUROTECH MP, IVECO EUROTRAKKER, etc. See all vehicles this product (DELCO REMY 19024122) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| IVECO | EUROSTAR | LD 190 E 42 LD 190 E 42 P LD 190 E 47 LD 240 E 42 FS LD 240 E 42 PS LD 240 E 47 PS LD 260 E 42 P LD 260 E 47 LD 400 E 42 TX/P LD 440 E 42 TX/P LD 440 E 42 T/P LD 440 E 42 TZ LD 440 E 47 T/P LD 440 E 47 TZ | 1993/01 - 2002/02 | 8210.42L.400 420 hp 309 kW L Diesel 8210.42L(TCA) 420 hp 309 kW L Diesel 8210.42L. 420 hp 309 kW L Diesel 8210.42L. 420 hp 309 kW L Diesel 8210.42L(TCA) 420 hp 309 kW L Diesel 8210.42M.TCA 469 hp 345 kW L Diesel | 4x2 6x2/2/4 6x2/4 6x4 | Flatbed Truck/Chassis: 18t. Flatbed Truck/Chassis: 26t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 18t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 24.5t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 26t. |
| IVECO | EUROTECH MP | 180 E 42 190 E 42 190 E 42 /P 240 E 42 260 E 42 400 E 42 T 440 E 42 T 440 E 42 T/P 440 E 42 TZ | 1992/01 - | 8210.42L.400 420 hp 309 kW L Diesel 8210.42L.400 420 hp 309 kW L Diesel 8210.42L(TCA) 420 hp 309 kW L Diesel | 4x2 6x2/2/4 6x4 | Flatbed Truck/Chassis: 18t. Flatbed Truck/Chassis: 19t. Flatbed Truck/Chassis: 26t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 18t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 26t. |
| IVECO | EUROTRAKKER | MP 190 E 37 H MP 190 E 37 W MP 190 E 42 H MP 190 E 42 W MP 260 E 37 H MP 260 E 37 W MP 260 E 42 H MP 260 E 42 W MP 340 E 37 H MP 340 E 42 H MP 380 E 37 H MP 380 E 37 W MP 380 E 42 H MP 380 E 42 W MP 400 E 37 HT MP 400 E 37 WT MP 400 E 42 HT MP 400 E 42 WT MP 410 E 37 H MP 410 E 42 H MP 410 E 42 W MP 440 E 37 HT MP 440 E 42 HT MP 720 E 37 HT MP 720 E 37 WT MP 720 E 42 HT MP 720 E 42 WT MP 720 E 47 HT | 1993/01 - 2004/11 | 8210.42K. 370 hp 272 kW L Diesel 8210.42K. 370 hp 272 kW L Diesel 8210.42K(TCA) 370 hp 272 kW L Diesel 8210.42L. 420 hp 309 kW L Diesel 8210.42L. 420 hp 309 kW L Diesel 8210.42L(TCA) 420 hp 309 kW L Diesel 8210.42M.TCA 469 hp 345 kW L Diesel | 4x2 4x4 6x4 6x6 8x4/4 8x8/4 | Dump truck: 18т. Dump truck: 26т. Dump truck: 32т. Dump truck: 33т. Dump truck: 33т. Flatbed Truck/Chassis: 33t. Dump truck: 40т. Flatbed Truck/Chassis: 40t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 18t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 26t. Heavy-duty truck / Truck Tractor / Semitrailer Truck : 33t. |
