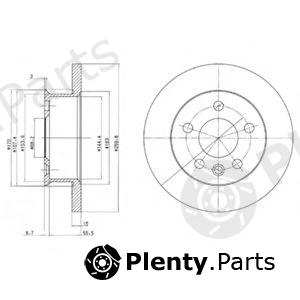

DELPHI BG2716 Brake Disc

DELPHI part BG2716 Brake Disc

DELPHI BG2716 Brake Disc

by DELPHI

Manufacturer Part Number: BG2716

Сharacteristics:
  • Diameter [mm]: 260
  • Brake Disc Type: Solid
  • Brake Disc Thickness [mm]: 16
  • Minimum thickness [mm]: 13
  • Number of Holes: 5
  • Centering Diameter [mm]: 68
  • Mounting Type: Bolted
  • Depth [mm]: 64,5

Product Details

BrandDELPHI
DELPHI article (MPN)BG2716
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG701615301C, 701615301, 7O16153O1, 7O16153O1C

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG2716 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CASALS, CIFAM, COMLINE, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, INTERBRAKE, JP GROUP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, MEYLE, MGA, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STELLOX, STOP, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16082, 16O82
ACDelcoAC2353D
AP14353
APEC brakingDSK591
ATE24.0116-0108.1, 24-O116-O1O8-1-O1, 24.O116-O1O8.1, 4161O8, 24-0116-0108-1-01, 416108
AUTOMEGA306150301701C
BENDIX5616O9, 561609BC, 5616O9B, 561609B, 561609
BORG & BECKBBD4962
BOSCHO986478547, 0986478547
Brake ENGINEERING955171, DI955171
BRECOBS7424
BREMBOO8.5497.1O, 08.5497.10
BREMSIDBA426S
CAR142.731
CASALS55434
CIFAM800-293, 8OO-293, 800507
COMLINEADC1466
FEBI BILSTEIN06547, O6547
FENOXTB215250
FERODODDF426, RT2818, DDF4261
FIRST LINEFBD45O, FBD450
FOMARFO2353
FREMAXBD-3013, BD-3O13
fri.tech.DF22O, DF220, BD0220
FTEBS3788, BS3788B
GIRLING6015933, 6O15933
GRAFDF29437, DF29293
HANS PRIES104086
HELLA8DD355102621
HELLA PAGID8DD355102621
INTERBRAKEVW.19.1P
JP GROUP1163100600, 1163100609
JURID561609J, 561609JC, 5616O9J
KAGER37-OO69, 37-OO96, 37-0069, 37-0096
KAMOKA103201
KAWE641400
KRAFT6040190
LEMFÖRDER1441301, 14413O1, 14413
LPRV2191P
LUCAS ELECTRICALDF1593, DF1593T
MAGNETI MARELLI353615837240, 35361583724O
METELLI230507, 23-0293, 23-O293
MEYLE1155211015, 1155211O15
MGAD1O93, D1093
MINTEXMDC912
NATIONALNBD3O6, NBD306
NECTOWN596
NK314732, 2O4732, 204732
OPEN PARTSBDA158810, BDR158810
OPTIMALBS-4140, BS-414O
PAGID53919
PATRONPBD1593
PEX14.O628, 14.0628
PILENGA525O, 5250
PROTECHNICPRD1136
QUINTON HAZELLBDC3788P, BDC3788, BSF3788
REMSA641.4OO, 641.400
ROADHOUSE6414.OO, 6414.00
ROTINGERRT1374T5, RT1374
ROULUNDS BRAKINGD2353
sbs18152O4732, 1815314732, 815424216, 1815204732
STELLOX60204732SX
STOP561609S
SWAG30906547
TEMPLIN0311084720
TEXTAR92055900, 92O559OO
TRUSTINGDF22O, DF220
TRWDF1593, DF1593S, DF1593T
VAICOV10-40023, V1O-4OO23
VALEO186314, 197327, 297327
WOKINGP6414.OO, P6414.00, D641400
ZIMMERMANN6OO.16O4.OO, 600.1604.00

Vehicle fitment / DELPHI BG2716 Brake Disc compatibility

This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (DELPHI BG2716) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWEURO CARAVELLE IV
70XB
70XC
7DB
7DW
7DK
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWEURO IV
70XA
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
VWTRANER CARAVELLEIV
70XB
70XC
7DB
7DW

1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER CARAVELLE IV
70XB
70XC
7DB
7DW
7D
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER IV
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWTRANERIV
70XA
70XD
1.9 D
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWTRANER MULTI IV
70XB
70XC
7DB
7DW
7DK
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER T4
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
