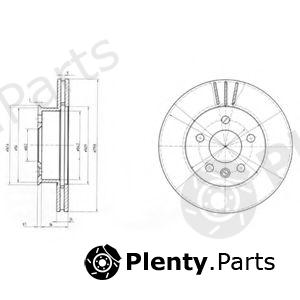

DELPHI BG2717 Brake Disc
DELPHI BG2717 Brake Disc
by DELPHIManufacturer Part Number: BG2717
- Diameter [mm]: 280
- Brake Disc Type: Vented
- Brake Disc Thickness [mm]: 24
- Minimum thickness [mm]: 20
- Number of Holes: 5
- Centering Diameter [mm]: 68,1
- Mounting Type: Bolted
- Depth [mm]: 64,7
Product Details
| Brand | DELPHI |
| DELPHI article (MPN) | BG2717 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 701615301A, 701615301D, 7O16153O1A, 7O16153O1D |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for DELPHI BG2717 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, COMLINE, DENCKERMANN, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, INTERBRAKE, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, STELLOX, SWAG, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16O83, 16083 |
| ACDelco | AC2412D |
| AP | 24357 |
| APEC braking | DSK560, DSK56O |
| ATE | 24.0124-0118.1, 24-O124-O118-1-O1, 24.O124-O118.1, 424118, 24-0124-0118-1-01 |
| AUTOMEGA | 306150301701D |
| BARUM | BAR24118 |
| BENDIX | 56161OB, 561610, 561610B, 56161O, 561610BC |
| BORG & BECK | BBD4963 |
| BOSCH | 0986478548, 0986479S80, O986478548 |
| Brake ENGINEERING | DI955172, DI955114, 955114 |
| BRECO | BS8O53, BS8053 |
| BREMBO | O9.5566.1O, 09.5566.10 |
| BREMSI | DBA427V |
| BSF | 11209V |
| CAR | 142.732 |
| CIFAM | 800-437, 8OO-437 |
| COMLINE | ADC1411V |
| DENCKERMANN | B130251 |
| EUROBRAKE | 5815204733 |
| FEBI BILSTEIN | 08072, O8O72 |
| FENOX | TB217153 |
| FERODO | DRF427S, DDF427, RT2821, DDF427C, DDF427C1, DDF4271 |
| FIRST LINE | FBD451 |
| FOMAR | FO2412 |
| FREMAX | BD-3014, BD-3O14 |
| fri.tech. | BD1443 |
| FTE | BS3787B, BS3787 |
| GIRLING | 6O15961, 6015961 |
| GRAF | DF29437 |
| HANS PRIES | 104087, 1O4O87 |
| HELLA | 8DD355122392, 8DD355102631 |
| HELLA PAGID | 8DD355102631, 8DD355122392 |
| INTERBRAKE | VW.32.1V |
| JP GROUP | 1163104300, 1163104309 |
| JURATEK | VAG108, VAG1O8 |
| JURID | 56161OJ, 561610JC, 561610J |
| KAGER | 37-O195, 37-0195 |
| KAMOKA | 103854 |
| KAWE | 641610 |
| KRAFT | 6040180 |
| LEMFÖRDER | 1441202, 14412O2, 14412 |
| LPR | V2321V |
| LUCAS ELECTRICAL | DF1596T, DF2809T, DF1596 |
| MAGNETI MARELLI | 35361582224O, 353615822240 |
| METELLI | 23-0437, 23-O437 |
| METZGER | 6110484, 24357 |
| MEYLE | 1155211O35, 1155211035/PD, 1155211035 |
| MGA | D1237 |
| MINTEX | MDC913 |
| MOTAQUIP | LVBD897Z, VBD897 |
| NATIONAL | NBD307, NBD3O7 |
| NECTO | WN7OO, WN700 |
| NIBK | RN1281 |
| NK | 2O4733, 204733, 314733 |
| OPEN PARTS | BDR158810, BDA158810 |
| OPTIMAL | BS-416O, BS-4160 |
| PAGID | 53936 |
| PATRON | PBD1596 |
| PEX | 14.O629, 14.0629 |
| PILENGA | V153 |
| PROTECHNIC | PRD2120 |
| QUINTON HAZELL | BDC3787P, BSF3787, BDC3787 |
| REMSA | 641.61O, 641.610 |
| ROADHOUSE | 6416.1O, 6416.10 |
| ROTINGER | RT2723, RT2723T5 |
| ROULUNDS BRAKING | D2412 |
| sbs | 815424215V, 1815204733, 1815314733, 18152O4733 |
| STELLOX | 60204733VSX |
| SWAG | 30908072 |
| TEXTAR | 92056000, 92O56OOO |
| TRUSTING | DF1443 |
| TRW | DF28O9T, DF2809T, DF1596T, DF1596 |
| VAICO | V10-80060, V1O-8OO6O |
| VALEO | 186315 |
| WOKING | P6416.1O, D641610, P6416.10 |
| ZIMMERMANN | 600160552, 600160520, 6OO.16O5.OO, 600.1605.00 |
Vehicle fitment / DELPHI BG2717 Brake Disc compatibility
This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (DELPHI BG2717) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 1.9 D 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/07 - 2003/04 | 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 1.9 D 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/07 - 2003/04 | 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
