DELPHI BG3383 Brake Disc

DELPHI part BG3383 Brake Disc

DELPHI BG3383 Brake Disc

by DELPHI

Manufacturer Part Number: BG3383

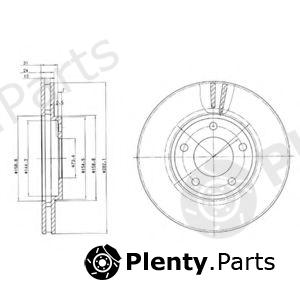

Сharacteristics:
  • Diameter [mm]: 282
  • Brake Disc Type: Vented
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 22,4
  • Number of Holes: 5
  • Centering Diameter [mm]: 73,5
  • Mounting Type: Bolted
  • Depth [mm]: 38

Product Details

BrandDELPHI
DELPHI article (MPN)BG3383
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CHRYSLERO472182OAE, 4721820, 4683260, 4721820AE, 4683432, 4423368, 4523368, 4721821, 04721820AE, 4509340, 45O934O, 468326O, 472182O, 472182OAE
FIAT / LANCIA / ALFADR6942

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3383 Brake Disc offered by A.B.S., AP, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, BSF, CAR, CIFAM, DENCKERMANN, E.T.F., EUROBRAKE, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAVO PARTS, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16241
AP24727E, 24493
APEC brakingDSK796
ASHIKA6000096, 6000099
ASHUKIUS104303
ATE24.O124-O153.1, 24.0124-0153.1, 24.0124-0178.1, 424154, 24.O124-O193.1, 24-0124-0154-1-02, 24.O124-O154.1, 24.0124-0193.1, 24.O124-O178.1, 24.0124-0154.1, 24-O124-O154-1-O2
BENDIX56195O, 561950BC, 562137, 56195OB, 561950B, 561950
BLUE PRINTADA104303, ADA1O43O3
BORG & BECKBBD4122
BOSCH0986478983, O986478983
Brake ENGINEERINGDI955536, 955536, DI956681
BRECOBS8135
BREMBOO9.7367.1O, O9.58O1.1O, 09.7367.10, DP11001, 09.5801.10, 09.7367.14, DP11OO1, O9.7367.14
BREMSIDBA366V
BSF11211V
CAR142.147
CIFAM8OO-473, 800-473, 8OO-331, 800-331
DENCKERMANNB130279
E.T.F.19-5346
EUROBRAKE5815209301
FENOXTB217614
FERODODDF1059, DDF366, DDF3661, DDF1O59
FOMARFO2491, FO4243
fri.tech.BD0361
FTEBS4414
GIRLING6026781, 6026503, 6O26781, 6O265O3, 6O45O81, 6045081
GRAFDF29473, DF29331
HELLA8DD355113381, 8DD355107931
HELLA PAGID8DD355107931, 8DD355113381
JAPANPARTSDI099, DI-096
JAPKO60099, 60096
JP GROUP5063100109
JURID561950JC, 56195OJ, 561950J
KAGER37-0298, 371172, 37-O298
KAVO PARTSBR-7216
KRAFT6048550
LPRD1271V
LUCAS ELECTRICALDF4508, DF2678T, DF2678
MAGNETI MARELLI3536112O524O, 3536112O324O, 360406019900, 360406020000, 353611205240, 353611203240
MAXGEAR190913
METELLI23-O331, 230473, 23-0331
METZGER6110708, 656410
MEYLE44-155210003/PD, 44-155210006/PD
MGAD1131, D1273
MINTEXMDC127O, MDC1270, MDC1973
MOTAQUIPVBE14O, VBE140
NATIONALNBD757
NECTOWN946, WN549
NK319302, 2O93O1, 2O93O2, 209301, 319301, 209302
OPTIMALBS-5640, BS-4190
PAGID54531, 5O336, 50336
PATRONPBD2678, PBD5373
PEX14.0142, 14.O142
PILENGAV614, V613
PROTECHNICPRD2426, PRD2260
QUINTON HAZELLBSF4414, BDC4414, BDC4414P
REMSA6419.1O, 6419.10
ROADHOUSE6419.1O, 6564.1O, 6419.10, 6564.10
ROTINGERRT2174T5, RT2170T5, RT2174, RT2170
ROULUNDS BRAKINGD2491
SASIC9004392J
sbs1815209301, 1815319302, 18152O93O2, 18152O93O1, 1815209302, 1815319301
TEXTAR92153100, 89013200, 92108700
TRUSTINGDF361
TRWDF2678, DF45O8, DF4508, DF2678S, DF2678T
VAICOV10-40017, V1O-4OO17, V3380006, V3380001, V3380004
VALEO186730, 18627O, 18657O, 186270, 186570, 18673O
WOKINGP6419.1O, P6419.10
ZIMMERMANN155.39O1.OO, 155.3901.00

Vehicle fitment / DELPHI BG3383 Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER III, CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGER II, CHRYSLER VOYAGERII, CHRYSLER VOYAGER III, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, etc. See all vehicles this product (DELPHI BG3383) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER III
GS
2.0 i
2.4 i
2.5 TD
3.0
3.3 i
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EFA 152 hp 112 kW 3 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
3.3
3.3 AWD
3.8 AWD
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
3.3
3.3 AWD
3.8 AWD
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER II
ES
2.5 i
2.5 TD
3.0
3.0 i
3.3 i
3.3 i AWD
1990/08 - 1995/0909B 118 hp 87 kW 2.5 L Diesel
M00 118 hp 87 kW 2.5 L Diesel
300 147 hp 108 kW 3 L Petrol
6G72 147 hp 108 kW 3 L Petrol
EFA 141 hp 104 kW 3 L Petrol
EGA 150 hp 110 kW 3.3 L Petrol
EGA 163 hp 120 kW 3.3 L Petrol
EGA 150 hp 110 kW 3.3 L Petrol
R00 163 hp 120 kW 3.3 L Petrol
K00 98 hp 72 kW 2.5 L Petrol
K 101 hp 74 kW 2.5 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERII
GS
2.0 i
2.4 i
2.5 TD
3.0
3.3 i
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EFA 152 hp 112 kW 3 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER III
GS
2.0 i
2.4 i
2.5 TD
3.0
3.3 i
3.8 i AWD
1995/01 - 2001/03425CLIRS/X 116 hp 85 kW 2.5 L Diesel
ENC 116 hp 85 kW 2.5 L Diesel
B00 151 hp 111 kW 2.4 L Petrol
C00 133 hp 98 kW 2 L Petrol
EFA 152 hp 112 kW 3 L Petrol
EGH 178 hp 131 kW 3.8 L Petrol
L00 166 hp 122 kW 3.8 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
3.3
3.3 AWD
3.8 AWD
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
3.3
3.3 AWD
3.8 AWD
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
