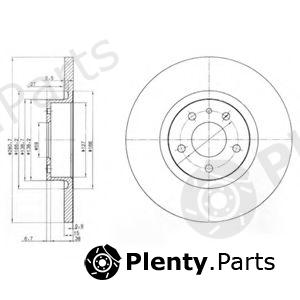

DELPHI BG3420 Brake Disc

DELPHI part BG3420 Brake Disc

DELPHI BG3420 Brake Disc

by DELPHI

Manufacturer Part Number: BG3420

Сharacteristics:
  • Diameter [mm]: 281
  • Brake Disc Type: Solid
  • Brake Disc Thickness [mm]: 15
  • Minimum thickness [mm]: 13,2
  • Number of Holes: 5
  • Centering Diameter [mm]: 59
  • Mounting Type: Bolted
  • Depth [mm]: 44,7

Product Details

BrandDELPHI
DELPHI article (MPN)BG3420
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA60617106, 60653487, 60658567, 6O6171O6, 6O653487, 6O658567

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3420 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CAR, CIFAM, COMLINE, DENCKERMANN, E.T.F., EUROBRAKE, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAXGEAR, METELLI, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STELLOX, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.16949
ACDelcoAC2223D
AP15368
APEC brakingDSK8O2, DSK802
ATE24-O115-O1O8-1-O2, 24.0115-0108.1, 24.O115-O1O8.1, 415108, 4151O8, 24-0115-0108-1-02
BENDIX562O61, 562061B, 562061BC, 562061, 562O61B
BORG & BECKBBD4083
BOSCH0986478668, O986478668
Brake ENGINEERINGDI955842, 955842
BREMBOFS.020.000, FS.O2O.OOO, FD.020.000, FD.O2O.OOO, 08.7354.10, 08.7354.75, O8.7354.75, O8.7354.11, 08.7354.11, O8.7354.1O
BREMSIDBB057S
BSF11372
CAR142.O13, 142.013
CIFAM8OO-472, 800-472
COMLINEADC1807, ADC18O7
DENCKERMANNB130466
E.T.F.19-8567
EUROBRAKE5815201017
FERODODDF10571, DDF1057, DDF1O57, DRF1O57, DRF1057
FOMARFO2223
FREMAXBD-8567
fri.tech.DF654, BD0654
FTEBS4769, BS4769B
GIRLING6040253, 6O4O253
GRAFDF29472
HELLA8DD355106-451
HELLA PAGID8DD355106451
JP GROUP3063100509
JURATEKALF100
JURID562061J, 562O61J, 562061JC
KAGER37-1010, 37-1O1O
KAMOKA1032114
KRAFT6046810
LPRA2291P
LUCAS ELECTRICALDF4025T, DF4025
MAGNETI MARELLI4316O2O4118O, 353610022140, 35361OO2214O, 431602041190, 431602041180
MAXGEAR190991
METELLI23-O472, 23-0472
MEYLE215521OO13, 2155210013
MGAD1272
MINTEXMDC983
MOTAQUIPVBE130, VBE13O
NATIONALNBD948
NECTOWN972
NK2O1O17, 201017, 311017
OPEN PARTSBDA166110, BDR166110
OPTIMALBS-5120
PAGID5O252, 50252
PATRONPBD4025
PEX14.OO14, 14.0014
PILENGA5025, 5O25
PROTECHNICPRD1233
QUINTON HAZELLBDC4769, BSF4769, BDC4769P
REMSA6512.OO, 6512.00
ROADHOUSE6512.00, 6512.OO
ROTINGERRT1478, RT1478T5
ROULUNDS BRAKINGD2223
SASIC9004503J
sbs18152O1O17, 1815311017, 1815201017
STELLOX60201017SX
TEMPLIN0311011200
TEXTAR92O964OO, 92096400
TRUSTINGDF654
TRWDF4025, DF4025T, DF4O25T, DF4O25
VAICOV2440006
VALEO1866O5, 186605
WAGNER LOCKHEEDWGR10571
ZIMMERMANN11O.2211.OO, 110221120, 110.2211.00

Vehicle fitment / DELPHI BG3420 Brake Disc compatibility

This product fits the following models: ALFA ROMEO 147, ALFA ROMEO 156, etc. See all vehicles this product (DELPHI BG3420) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
ALFA ROMEO147
937
1.6 16V T.SPARK
1.6 16V T.SPARK ECO
1.9 JTD
1.9 JTD 16V
1.9 JTDM
1.9 JTDM 16V
1.9 JTDM 8V

937AXA1A
937AXB1A
937AXD1A
2001/01 - 2010/03182B9.000 101 hp 74 kW 1.9 L Diesel
192A5.000 140 hp 103 kW 1.9 L Diesel
192B1.000 136 hp 100 kW 1.9 L Diesel
937A4.000 126 hp 93 kW 1.9 L Diesel
937A2.000 115 hp 85 kW 1.9 L Diesel
937A3.000 120 hp 88 kW 1.9 L Diesel
937A5.000 150 hp 110 kW 1.9 L Diesel
937A6.000 170 hp 125 kW 1.9 L Diesel
939A7.000 115 hp 85 kW 1.9 L Diesel
AR32104 120 hp 88 kW 1.6 L Petrol
AR37203 105 hp 77 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
ALFA ROMEO156
932
1.6 16V T.SPARK
1.6 16V T.SPARK.
1.8 16V T.SPARK
1.9 JTD
1.9 JTD 16V
1.9 JTD 16V Q4

932A2B
932A2B
932A2C
932A3
932A31
932A4
932B2
932B2B
932B2B
932B2C
932B31
1997/09 - 2006/05192A5.000 140 hp 103 kW 1.9 L Diesel
192B1.000 136 hp 100 kW 1.9 L Diesel
937A4.000 126 hp 93 kW 1.9 L Diesel
937A5.000 150 hp 110 kW 1.9 L Diesel
937A2.000 115 hp 85 kW 1.9 L Diesel
937A5.000 150 hp 110 kW 1.9 L Diesel
AR32102 120 hp 88 kW 1.6 L Petrol
AR32103 120 hp 88 kW 1.6 L Petrol
AR32104 120 hp 88 kW 1.6 L Petrol
AR67601 120 hp 88 kW 1.6 L Petrol
AR32201 144 hp 106 kW 1.8 L Petrol
AR32205 140 hp 103 kW 1.8 L Petrol
AR32302 105 hp 77 kW 1.9 L Diesel
AR37101 110 hp 81 kW 1.9 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
