DELPHI BG3504 Brake Disc

DELPHI part BG3504 Brake Disc

DELPHI BG3504 Brake Disc

by DELPHI

Manufacturer Part Number: BG3504

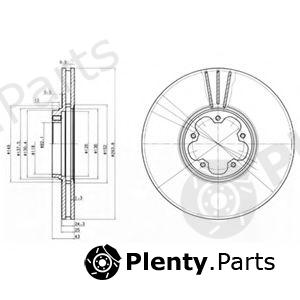

Сharacteristics:
  • Diameter [mm]: 294
  • Brake Disc Type: Vented
  • Brake Disc Thickness [mm]: 24,5
  • Minimum thickness [mm]: 22,1
  • Number of Holes: 5
  • Centering Diameter [mm]: 82,08
  • Mounting Type: Bolted
  • Depth [mm]: 43

Product Details

BrandDELPHI
DELPHI article (MPN)BG3504
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD vehicles

OE manufacturerOEM reference numbers
FORD4041428, 1387781, 4O41428

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3504 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CAR, CASALS, CIFAM, COMLINE, DENCKERMANN, DITAS, Dr!ve+, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KEY PARTS, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MENSAN, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, PROTECHNIC, QUINTON HAZELL, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STELLOX, SWAG, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17115
ACDelcoAC2614D
AP24806E, 248O6E
APEC brakingDSK2O35, DSK2035
ATE24.0124-0168.1, 424168, 24-0124-0168-1-02, 24.O124-O168.1, 24-O124-O168-1-O2
BENDIX56214O, 562140, 562140BC, 56214OB, 562140B
BORG & BECKBBD4221
BOSCH0986478303, O9864783O3, 0986479B29
Brake ENGINEERINGDI956008, DI956OO8
BREMBO09.8837.14, DP24020, O9.8837.1O, 09.8317.10, O9.8317.1O, DP24O18, 09.8837.10, DP24018, O9.8837.14, DP24O2O
BREMSIDBB112V
BSF11378V
CAR142.228
CASALS55256, 55251
CIFAM8OO-7O2, 800-702
COMLINEADC1213V
DENCKERMANNB130153
DITASDFD1014
Dr!ve+DP1010110764
E.T.F.19-5613
FEBI BILSTEIN19515
FENOXTB219071
FERODODDF11121, DDF1112C, DDF1112
FOMARFO2614
fri.tech.BD0810, DF810, DF81O
FTEBS5214
GIRLING6O42171, 6042171
GRAFDF297O2, DF29702
HANS PRIES302087, 3O2O87
HELLA8DD355107311, 8DD355107301
HELLA PAGID8DD355107311, 8DD355107301
JP GROUP1563100700, 1563100709
JURATEKFOR1O9, FOR109
JURID56214OJ, 562140JC, 562140J
KAGER37-0202, 37-O2O2
KAMOKA1032224
KEY PARTSKBD4221
KRAFT6042350
LPRF1OO2V, F1002V
LUCAS ELECTRICALDF4217
MAGNETI MARELLI360406026300, 360704001100, 35361176124O, 353611761240, 361302040170
MENSAN020201
METELLI230702
METZGER6110405
MEYLE7155217O21, 7155217021
MGAD1400, D14OO
MINTEXMDK0117, MDC1082, MDC1O82
MOTAQUIPVBE221
NATIONALNBD994
NECTOWN1139
NK2O2544, 202544, 312544
OPEN PARTSBDA194620
OPTIMALBS-6040
PAGID54O38, 54038
PATRONPBD4217
PILENGAV252
PROFIT50101112
PROTECHNICPRD2602
QUINTON HAZELLBDC5214, BDC5214P
ROADHOUSE66O8.1O, 6608.10
ROTINGERRT2711, RT2711T5
ROULUNDS BRAKINGD2614
SASIC9004827J
sbs1815202544, 18152O2544, 1815312544
STELLOX60202544VSX
SWAG50919515
TEXTAR89007200, 921O38OO, 92103803, 92103800
TRUSTINGDF81O, DF810
TRWDF4217BP, DF4217
VAICOV2580015
VALEO186710, 18671O
WAGNER LOCKHEEDWGR11121
WOKINGP66O8.1O, P6608.10
ZIMMERMANN25O.1349.OO, 250.1349.00, 250134920

Vehicle fitment / DELPHI BG3504 Brake Disc compatibility

This product fits the following models: FORD TRANSIT, etc. See all vehicles this product (DELPHI BG3504) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDTRANSIT
FA
FD
FB
FS
FZ
FC
FM
FN
2.0 DI
2.0 TDCi
2.3
2.3 16V
2.3 16V [RWD]
2.4 DI
2.4 DI [RWD]
2.4 TD
2.4 TDCi
2.4 TDdi
2.4 TDE

FAA
FAB
FAC
FAA
FAB
FAC
FAD
FAE
FAF
FAG
FA
FB
FC
FD
FB
FC
FA
FE
FF
2000/01 - 2006/05D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D2FA 90 hp 66 kW 2.4 L Diesel
D2FB 90 hp 66 kW 2.4 L Diesel
D2FE 90 hp 66 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
D3FA 75 hp 55 kW 2 L Diesel
F3FA 86 hp 63 kW 2 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
D4FA 120 hp 88 kW 2.4 L Diesel
F4FA 75 hp 55 kW 2.4 L Diesel
DOFA 125 hp 92 kW 2.4 L Diesel
FXFA 115 hp 85 kW 2.4 L Diesel
E5FA 145 hp 107 kW 2.3 L Petrol
E5FC 143 hp 105 kW 2.3 L Petrol
E5FA 146 hp 107 kW 2.3 L Petrol
E5FC 146 hp 107 kW 2.3 L Petrol
F4FA 75 hp 55 kW 2.4 L Diesel
FIFA 125 hp 92 kW 2 L Diesel
H9FA 137 hp 101 kW 2.4 L Diesel
Front wheel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
