DELPHI BG3513 Brake Disc

DELPHI part BG3513 Brake Disc

DELPHI BG3513 Brake Disc

by DELPHI

Manufacturer Part Number: BG3513

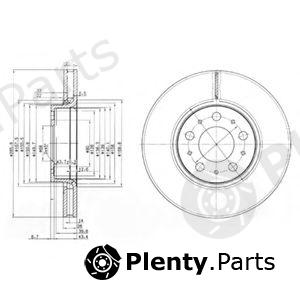

Сharacteristics:
  • Diameter [mm]: 286
  • Brake Disc Type: Vented
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Number of Holes: 5
  • Centering Diameter [mm]: 68
  • Mounting Type: Bolted
  • Depth [mm]: 50,3

Product Details

BrandDELPHI
DELPHI article (MPN)BG3513
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO272403, 2724032, 2724037, 946133, 2724O3, 2724O32, 2724O37, 31262706, 312627O6

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3513 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, CIFAM, COMLINE, DENCKERMANN, Dr!ve+, E.T.F., EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KEY PARTS, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NIBK, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, ScanTech, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17404, 174O4
ACDelcoAC2424D
AP24795V, 24795
APEC brakingDSK2O51, DSK2051
ATE24-0126-0122-1-02, 426122, 24.O126-O122.1, 24-O126-O122-1-O2, 24.0126-0122.1
BARUMBAR26122
BENDIX562244BC, 562244B
BORG & BECKBBD4179
BOSCH0986479210, O98647921O
Brake ENGINEERINGDI956025, DI956040, 956O25, DI956O25, DI956O4O, 956025
BREMBO09863375, O9.8633.11, 09863311, O9.8633.1O, 09.8633.10, O9.8633.75
BREMSIDBB163V
CIFAM8OO-56O, 800-560, 800560C
COMLINEADC1907V, ADC19O7V
DENCKERMANNB130395
Dr!ve+DP1010110334
E.T.F.19-4O46, 19-4046
EUROBRAKE5815204841
FEBI BILSTEIN18044, 18O44
FENOXTB217264
FERODODDF1163C, DDF11631, DDF1163
FOMARFO2424
fri.tech.BD0804, DF8O4, DF804
FTEBS5226, BS5226B
GIRLING6042381, 6O42381
GRAFDF29560, DF2956O
G.U.DGDB126122
HELLA8DD355107051, 8DD355107041
HELLA PAGID8DD355107041, 8DD355107051
JP GROUP4963100709
JURATEKVOL127
JURID562244JC, 562244J
KAGER37-1140, 37-114O, 371411
KAMOKA1032326
KEY PARTSKBD4179
KRAFT6046391
LPRV1484V
LUCAS ELECTRICALDF4238
MAGNETI MARELLI353616032240, 360406052100, 353616O3224O
MAPCO15999
MAXGEAR191296
METELLI230560C
METZGER6110561, 24795V
MEYLE5155215O23, 5155215023, 5155215023PD
MGAD1454
MINTEXMDC1432
MOTAQUIPVBE263
NATIONALNBD1O71, NBD1071
NECTOWN1179
NIBKRN1167
NK2O4841, 314841, 204841
OPEN PARTSBDR191020
OPTIMALBS-7430, BS-633O, BS-743O, BS-6330
PAGID50282, 5O282
PATRONPBD4238
PILENGAV264
PROTECHNICPRD2634
QUINTON HAZELLBDC5226, BDC5226P
ROADHOUSE6619.1O, 6619.10
ROTINGERRT20045, RT20045T5
ROULUNDS BRAKINGD2424
sbs1815314841, 18152O4841, 1815204841
ScanTech20.2403, 2O.24O3
STELLOX60204841VSX
SWAG55918044
TEMPLIN0311029685, 0311029680
TEXTAR92100500, 921OO5OO, 92100503
TRUSTINGDF8O4, DF804
TRWDF4238
VAICOV9580010, V95-80004, V95-8OOO4
VALEO186789
WAGNER LOCKHEEDWGR11631
WOKINGP6619.1O, P6619.10
ZIMMERMANN610370120, 61O.37O1.OO, 610370152, 610.3701.00, 610370170

Vehicle fitment / DELPHI BG3513 Brake Disc compatibility

This product fits the following models: VOLVO S60 I, VOLVO S70, VOLVO S80 I, VOLVO V70  , VOLVO V70 I, VOLVO V70 II, VOLVO V70II, VOLVO V70 XC, VOLVO XC70 CROSS COUNTRY, etc. See all vehicles this product (DELPHI BG3513) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVOS60 I
2.0 T
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
R 2
5 T
R 2
5 T AWD
T5

CNG
2000/07 - 2010/04B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B5254T4 300 hp 221 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T2 130 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS70
LS
2.0
2.0 Turbo
2.3
2.3 T-5
2.3 T5 AWD
2.3 Turbo
2.4
2.4 AWD
2.4 Blu-Fuel
2.4 T5 AWD
2.4 Turbo
2.5
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
1996/11 - 2000/11B5202FS 126 hp 93 kW 2 L Petrol
B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5252FS 144 hp 106 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.5 L Petrol
GB5252S 144 hp 106 kW 2.5 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOS80 I
TS
XY
2.0
2.0 T
2.4
2.4 Bifuel
2.4 D5
2.4 LTP
2.4 T
2.4 T5 AWD
2.5 T
2.5 T AWD
2.5 TDI
2.8 T6

CNG
1998/05 - 2006/07B5204T3 226 hp 166 kW 2 L Petrol
B5204T5 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T4 179 hp 132 kW 2.4 L Petrol
B5254T2 210 hp 154 kW 2.5 L Petrol
B6284T 272 hp 200 kW 2.8 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Sedan / Saloon
VOLVOV70
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 AWD
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 I
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 AWD
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 TDi AWD
2.5 Turbo AWD
1996/11 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 II
SW
2.0 T
2.3 AWD
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70II
SW
2.0 T
2.3 AWD
2.3 T5
2.4
2.4 AWD
2.4 Bifuel
2.4 D
2.4 D5
2.4 D5 AWD
2.4 T
2.4 T5
2.4 T AWD
2.5 T
2.5 T AWD
2.5 TDI

CNG
2000/03 - 2007/08B5204T5 180 hp 132 kW 2 L Petrol
B5234T3 250 hp 184 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T3 200 hp 147 kW 2.4 L Petrol
B5244T5 260 hp 191 kW 2.4 L Petrol
B5254S 165 hp 121 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T2 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
D5244T5 163 hp 120 kW 2.4 L Diesel
D5244T2 131 hp 96 kW 2.4 L Diesel
D5244T7 126 hp 93 kW 2.4 L Diesel
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 XC
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
2000/03 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
VOLVOXC70 CROSS COUNTRY
2.4 D5 AWD
2.4 D5 XC AWD
2.4 T XC AWD
2.5 T XC AWD
2000/03 - 2007/08B5244T3 200 hp 147 kW 2.4 L Petrol
B5254T2 209 hp 154 kW 2.5 L Petrol
D5244T 163 hp 120 kW 2.4 L Diesel
D5244T4 185 hp 136 kW 2.4 L Diesel
AWD / 4WD
Estate / Turnier / Vario / Wagon
