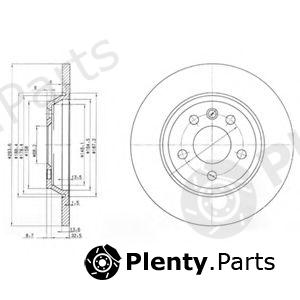

DELPHI BG3518 Brake Disc
DELPHI BG3518 Brake Disc
by DELPHIManufacturer Part Number: BG3518
- Diameter [mm]: 294
- Brake Disc Type: Solid
- Brake Disc Thickness [mm]: 13,5
- Minimum thickness [mm]: 11,5
- Number of Holes: 5
- Centering Diameter [mm]: 68
- Mounting Type: Bolted
- Depth [mm]: 41
Product Details
| Brand | DELPHI |
| DELPHI article (MPN) | BG3518 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for FORD, VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| FORD | 1110251, 1140278, 111O251, 114O278 |
| VAG | 7DO6156O1C, 7DO6156O1A, 7D0615601C, 7D0615601A |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for DELPHI BG3518 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CAR, CIFAM, COMLINE, DENCKERMANN, E.T.F., EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KEY PARTS, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STELLOX, SWAG, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 1719O, 17190 |
| ACDelco | AC2564D |
| AP | 14821 |
| APEC braking | DSK2159 |
| ATE | 24.O113-O194.1, 24012601151, 24.0113-0194.1, 24-O113-O194-1-O2, 24-0113-0194-1-02, 413194, 24032601151 |
| AUTOMEGA | 3061506017D0C |
| BARUM | BAR26115, BAR13194 |
| BENDIX | 562448B, 562448BC |
| BORG & BECK | BBD4278 |
| BOSCH | 0986478569, 0986478498, O986478569 |
| Brake ENGINEERING | DI956O33, 95611O, DI95611O, DI956033, 956110, DI956152, DI956110 |
| BREMBO | 08.9176.10, 08.9176.11, O8.9176.1O, O8.9176.11 |
| BREMSI | DBB158S |
| BSF | 11474 |
| CAR | 142.283 |
| CIFAM | 800-767, 8OO-767 |
| COMLINE | ADC144O, ADC1440 |
| DENCKERMANN | B130337, B130447 |
| E.T.F. | 19-5609, 19-56O9 |
| EUROBRAKE | 5815202552 |
| FEBI BILSTEIN | 23564 |
| FENOX | TB218033 |
| FERODO | DDF1158C, DDF1158, DDF1158C1, DDF11581 |
| FOMAR | FO2564 |
| fri.tech. | DF766, BD0766 |
| FTE | BS5216, BS5216B |
| GIRLING | 6042084, 6O42O84 |
| GRAF | DF29767 |
| G.U.D | GDB126115 |
| HANS PRIES | 107692 |
| HELLA | 8DD355106661, 8DD355106662, 8DD355106651 |
| HELLA PAGID | 8DD355106662, 8DD355106651, 8DD355106661 |
| JP GROUP | 1163202409 |
| JURATEK | VAG113 |
| JURID | 562448JC, 562448J |
| KAGER | 370993, 371154 |
| KAMOKA | 103198 |
| KEY PARTS | KBD4278 |
| KRAFT | 6040410, 6050510 |
| LPR | V2002P |
| LUCAS ELECTRICAL | DF4208 |
| MAGNETI MARELLI | 360406050400, 353615840540, 35361584O54O |
| METELLI | 230767 |
| METZGER | 6110275 |
| MEYLE | 1155231052/PD, 1155231052, 1155231O52 |
| MGA | D1473 |
| MINTEX | MDC1436 |
| MOTAQUIP | VBE287 |
| NATIONAL | NBD1075, NBD1O75 |
| NECTO | WN1176 |
| NK | 202552, 312552, 2O2552 |
| OPEN PARTS | BDR189710, BDA189710 |
| OPTIMAL | BS-7972, BS7972C |
| PAGID | 53975 |
| PATRON | PBD4208 |
| PILENGA | 5873 |
| PROTECHNIC | PRD5219 |
| QUINTON HAZELL | BDC5216, BDC5216P |
| ROADHOUSE | 6659.OO, 6659.00 |
| ROTINGER | RT1547T5, RT1547 |
| ROULUNDS BRAKING | D2564 |
| SASIC | 6106031 |
| sbs | 18152O2552, 1815312552, 1815202552 |
| STELLOX | 60202552SX |
| SWAG | 30923564 |
| TEXTAR | 92098103, 92098105, 92098100, 92O981OO |
| TRUSTING | DF766 |
| TRW | DF42O8, DF4208 |
| VAICO | V10-40080, V1O-4OO8O |
| VALEO | 186801, 1868O1 |
| WOKING | P6659.OO, P6659.00 |
| ZIMMERMANN | 6OO.3216.OO, 600321620, 600321652, 600.3216.00 |
Vehicle fitment / DELPHI BG3518 Brake Disc compatibility
This product fits the following models: FORD GALAXY, SEAT ALHAMBRA, VW EURO CARAVELLE IV, VW EURO IV, VW SHARAN, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (DELPHI BG3518) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| FORD | GALAXY WGR | 2.8 V6 | 2000/04 - 2006/05 | AYL 204 hp 150 kW 2.8 L Petrol | Front wheel | MPV / Van / Minivan |
| SEAT | ALHAMBRA 7V8 7V9 | 1.8 T 20V 1.9 TDI 2.8 V6 2.8 V6 4motion | 1996/04 - 2010/03 | 1Z 90 hp 66 kW 1.9 L Diesel AHU 90 hp 66 kW 1.9 L Diesel ANU 90 hp 66 kW 1.9 L Diesel ASZ 131 hp 96 kW 1.9 L Diesel AUY 115 hp 85 kW 1.9 L Diesel BVK 115 hp 85 kW 1.9 L Diesel AJH 150 hp 110 kW 1.8 L Petrol AWC 150 hp 110 kW 1.8 L Petrol AUE 204 hp 150 kW 2.8 L Petrol AYL 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | MPV / Van / Minivan |
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.9 TD 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1992/10 - 2003/04 | AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | SHARAN 7M8 7M9 7M6 | 1.8 T 20V 1.9 TDI 4motion 2.8 V6 24V 2.8 V6 24V 4motion | 1997/09 - 2010/03 | AJH 150 hp 110 kW 1.8 L Petrol AWC 150 hp 110 kW 1.8 L Petrol AUY 115 hp 85 kW 1.9 L Diesel BVK 115 hp 85 kW 1.9 L Diesel AYL 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | MPV / Van / Minivan |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.9 TD 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1992/10 - 2003/04 | AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.9 TD 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1992/10 - 2003/04 | AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 TD 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.9 TD 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 | 1992/10 - 2003/04 | AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 TD 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 | 1990/07 - 2003/04 | AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AET 115 hp 85 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
