DELPHI BG3688 Brake Disc

DELPHI part BG3688 Brake Disc

DELPHI BG3688 Brake Disc

by DELPHI

Manufacturer Part Number: BG3688

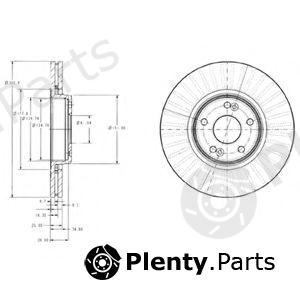

Сharacteristics:
  • Diameter [mm]: 300
  • Brake Disc Type: Vented
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 22,8
  • Number of Holes: 5
  • Centering Diameter [mm]: 61
  • Mounting Type: Bolted
  • Depth [mm]: 47

Product Details

BrandDELPHI
DELPHI article (MPN)BG3688
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701206614, 8200007122, 77O12O6614, 82OOOO7122

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3688 Brake Disc offered by A.B.S., ACDelco, AP, APEC braking, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CAR, CIFAM, COMLINE, DENCKERMANN, Dr!ve+, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FREMAX, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KEY PARTS, KLAXCAR FRANCE, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, SASIC, sbs, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17154
ACDelcoAC26O7D, AC2607D
AP24827
APEC brakingDSK2102, DSK21O2
ATE24-O126-O123-1-O2, 24.0126-0123.1, 24.O126-O123.1, 24.0326-0123.1, 426123, 24-0126-0123-1-02
AUTOMEGA30820000070122
BENDIX562381BC, 562381B, 562183, 562183B
BORG & BECKBBD4271
BOSCH0986478743, 0986479B47, O986478743
Brake ENGINEERING956172, DI956172
BREMBO09.9074.11, DP68O25, DP68025, 09.9074.10, O9.9O74.1O, O9.9O74.11
BREMSIDBB205V
BSF11433V
CAR142.364
CIFAM8OO-675, 800-675
COMLINEADC1537V
DENCKERMANNB130156
Dr!ve+DP1010110343
EUROBRAKE5815203932
FEBI BILSTEIN23333
FENOXTB219192
FERODODDF1205, DDF12051, DDF12O5
FREMAXBD-2235
fri.tech.DF815, BD0815
FTEBS5169B, BS5169
GIRLING6042295
GRAFDF29675
G.U.DGDB126123
HANS PRIES700645
HELLA8DD355109301, 8DD355109291
HELLA PAGID8DD355109301, 8DD355109291
JP GROUP4363100609
JURATEKREN153
JURID562381J, 562183J, 562381JC
KAGER371395, 371168
KAMOKA1032410
KEY PARTSKBD4271
KLAXCAR FRANCE25812Z
KRAFT6045420
LPRR1002V
LUCAS ELECTRICALDF4229, DF4229S
MAGNETI MARELLI351404720500, 3514O472O5OO
METELLI230675
METZGER6110478, 24827V
MEYLE16-155210015, 16-15521OO15
MGAD1426
MINTEXMDC1535, MDK0189
MOTAQUIPVBE343
NATIONALNBD1167
NECTOWN1226
NK313932, 203932, 2O3932
OPEN PARTSBDR195920, BDRS195925
OPTIMALBS-627O, BS-6270
PAGID5419O, 54190
PATRONPBD4229
PILENGAV749
PROTECHNICPRD2628
QUINTON HAZELLBDC5169, BDC5169P
REMSA6612.1O, 6612.10
ROADHOUSE6612.1O, 6612.10
SASIC4004299J
sbs1815313932, 18152O3932, 1815203932
STELLOX6020-3932V-SX
SWAG60923333
TEMPLIN0311025325, 0311025320
TEXTAR89014200, 92119000, 92119003, 92119OOO
TRUSTINGDF815
TRWDF4229, DF4229S
VAICOV4680012
VALEO186716, 186839, 197221
WAGNER LOCKHEEDWGR12051
WOKINGP6612.10, P6612.1O
ZIMMERMANN470241452, 470241420

Vehicle fitment / DELPHI BG3688 Brake Disc compatibility

This product fits the following models: RENAULT LAGUNA II, etc. See all vehicles this product (DELPHI BG3688) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTLAGUNA II
BG0/1
KG0/1
1.6 16V
1.8 16V
1.9 dCi
1.9 dCI
2.0 16V
2.0 16V IDE
2.0 16V Turbo
2.0 dCi
2.2 dCi
3.0 V6 24V

BG00
BG0K
BG0P
BG0W
BG01
BG02
BG0D
BG0Y
BG04
BG0B
BG0C
BG0V
BG05
BG06
BG0J
BG0M
BG08
BG0G
BG09
BG0A
BG0L
BG0B
BG0C
BG0J
BG0M
BG0V
BG0B
BG0M
BG0E
BG0F
BG0N
BG0R
BG0S
BG0Z
BG1L
BG1M
BG14
BG1S
BG1A
BG1V
BG1A
BG1W
BG1G
BG1H
BG1T
KG00
KG0K
KG0W
KG05
KG09
KG0A
KG0L
KG0B
KG0M
KG0D
KG0E
KG0E
KG0R
KG0F
KG0G
KG0J
KG0N
KG0S
KG0Z
KG1L
KG1M
KG1A
KG1W
KG1S
KG1T
KG1V
2001/03 - F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P773 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 116 hp 85 kW 1.8 L Petrol
F4P771 116 hp 85 kW 1.8 L Petrol
F4P774 116 hp 85 kW 1.8 L Petrol
F4P775 116 hp 85 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P774 121 hp 89 kW 1.8 L Petrol
F4P770 117 hp 86 kW 1.8 L Petrol
F4P774 117 hp 86 kW 1.8 L Petrol
F4P770 120 hp 88 kW 1.8 L Petrol
F4P773 120 hp 88 kW 1.8 L Petrol
F4P770 121 hp 89 kW 1.8 L Petrol
F4P772 121 hp 89 kW 1.8 L Petrol
F4R712 135 hp 99 kW 2 L Petrol
F4R713 135 hp 99 kW 2 L Petrol
F4R714 135 hp 99 kW 2 L Petrol
F4R715 135 hp 99 kW 2 L Petrol
F4R764 163 hp 120 kW 2 L Petrol
F4R765 163 hp 120 kW 2 L Petrol
F4R786 163 hp 120 kW 2 L Petrol
F4R787 163 hp 120 kW 2 L Petrol
F4R784 170 hp 125 kW 2 L Petrol
F4R786 170 hp 125 kW 2 L Petrol
F4R787 170 hp 125 kW 2 L Petrol
F4R886 204 hp 150 kW 2 L Petrol
F4R887 204 hp 150 kW 2 L Petrol
F5R700 140 hp 103 kW 2 L Petrol
F5R701 140 hp 103 kW 2 L Petrol
F9Q650 120 hp 88 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q664 92 hp 68 kW 1.9 L Diesel
F9Q670 120 hp 88 kW 1.9 L Diesel
F9Q674 120 hp 88 kW 1.9 L Diesel
F9Q750 120 hp 88 kW 1.9 L Diesel
F9Q674 110 hp 81 kW 1.9 L Diesel
F9Q758 110 hp 81 kW 1.9 L Diesel
F9Q718 107 hp 79 kW 1.9 L Diesel
F9Q754 107 hp 79 kW 1.9 L Diesel
F9Q752 100 hp 74 kW 1.9 L Diesel
F9Q752 105 hp 77 kW 1.9 L Diesel
F9Q754 100 hp 74 kW 1.9 L Diesel
F9Q758 130 hp 96 kW 1.9 L Diesel
F9Q759 130 hp 96 kW 1.9 L Diesel
G9T600 116 hp 85 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T605 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T600 140 hp 102 kW 2.2 L Diesel
G9T706 140 hp 102 kW 2.2 L Diesel
G9T707 140 hp 102 kW 2.2 L Diesel
G9T700 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
G9T702 150 hp 110 kW 2.2 L Diesel
K4M710 107 hp 79 kW 1.6 L Petrol
K4M714 107 hp 79 kW 1.6 L Petrol
K4M716 112 hp 82 kW 1.6 L Petrol
L7X731 207 hp 152 kW 3 L Petrol
M9R740 150 hp 110 kW 2 L Diesel
M9R760 173 hp 127 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
