DELPHI BG3716 Brake Disc

DELPHI part BG3716 Brake Disc

DELPHI BG3716 Brake Disc

by DELPHI

Manufacturer Part Number: BG3716

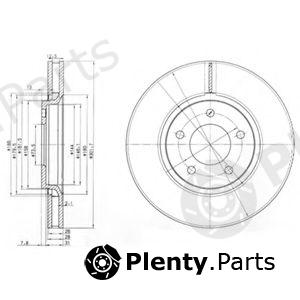

Сharacteristics:
  • Diameter [mm]: 301
  • Brake Disc Type: Vented
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26,5
  • Number of Holes: 5
  • Centering Diameter [mm]: 73,6
  • Mounting Type: Bolted
  • Depth [mm]: 39,1

Product Details

BrandDELPHI
DELPHI article (MPN)BG3716
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CHRYSLER vehicles

OE manufacturerOEM reference numbers
CHRYSLER04683918AB, 04863918AB, 4683918, 4683918AB, O4683918AB, O4863918AB

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG3716 Brake Disc offered by A.B.S., AP, APEC braking, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CAR, CIFAM, COMLINE, DENCKERMANN, Dr!ve+, EUROBRAKE, FEBI BILSTEIN, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JAPANPARTS, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KRAFT, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTAQUIP, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROTINGER, sbs, STARLINE, STELLOX, SWAG, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, VALEO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17354
AP24964
APEC brakingDSK21O6, DSK2106
ASHIKA60-09-992, 6O-O9-992
ASHUKIUS104301
ATE24.0128-0147.1, 428147, 24-0128-0147-1-02, 24.O128-O147.1, 24-O128-O147-1-O2
BENDIX562292BC, 562292B
BLUE PRINTADA104301, ADA1O43O1
BORG & BECKBBD4275
BOSCH0986479117, O986479117
Brake ENGINEERINGDI956146, DI956146S
BREMBO09.9743.11, O9.9743.11, O9.9743.1O, 09.9743.10
BREMSIDBB372V
BSF11445V
CAR142.336
CIFAM800-780, 8OO-78O, 800780C
COMLINEADC2305V, ADC23O5V
DENCKERMANNB130443
Dr!ve+DP1010110368
EUROBRAKE5815209312
FEBI BILSTEIN28171
FERODODDF1372-1, DDF1372, DDF1372C, DDF1459
FOMARFO4005
FREMAXBD-3918
fri.tech.BD0971
FTEBS5337, BS5337H, BS5337B
GIRLING6043461, 6O43461
GRAFDF2978O, DF29780
HELLA8DD355107881, 8DD355115841
HELLA PAGID8DD355107-881, 8DD355115841
ICER78BD39182
JAPANPARTSDI-992
JP GROUP5063100409
JURATEKCHR1O2, CHR102
JURID562292JC, 562292J
KAGER371115
KAMOKA103269
KRAFT6048570
LPRC3002V
LUCAS ELECTRICALDF4346
MAGNETI MARELLI360406087400
METELLI230780C
METZGER6110622, 660210
MEYLE44-155210001, 44-15521OOO1
MGAD1583
MINTEXMDC1554, MDC2097
MOTAQUIPVBE362
NATIONALNBD1154
NECTOWN1341
NK319312, 209312, 2O9312
OPEN PARTSBDR198120, BDA198120
OPTIMALBS-7650, BS-765O
PAGID50331, 54815, 5O331
PATRONPBD4346
PILENGAV642
PROTECHNICPRD2667, PRD2708
QUINTON HAZELLBDC5337, BDC5337P
R BRAKE78RBD23918
REMSA66O.21O, 660.210
ROTINGERRT20160, RT20160T5
sbs18152O9312, 1815209312, 1815319312
STARLINEPB20918C
STELLOX60209987SX
SWAG14928171
TEMPLIN0311013730
TEXTAR92108200, 92181503, 92108203
TRUSTINGDF971
TRWDF4346
VAICOV3380003
VALEO197233
WAGNER LOCKHEEDWGR13721
WOKINGP66O2.1O, P6602.10
ZIMMERMANN155390220, 155390252

Vehicle fitment / DELPHI BG3716 Brake Disc compatibility

This product fits the following models: CHRYSLER GRAND VOYAGER III, CHRYSLER GRAND VOYAGER IV, CHRYSLER TOWN & COUNTRY IV, CHRYSLER VOYAGERII, CHRYSLER VOYAGER III, CHRYSLER VOYAGERIII, CHRYSLER VOYAGER IV, JEEP CHEROKEE, JEEP LIBERTY, etc. See all vehicles this product (DELPHI BG3716) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CHRYSLERGRAND VOYAGER III
GS
2.4 i
3.3 i
1995/01 - 2001/03B00 151 hp 111 kW 2.4 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
Front wheel
MPV / Van / Minivan
CHRYSLERGRAND VOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.8
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
ENJ 141 hp 105 kW 2.5 L Diesel
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERTOWN & COUNTRY IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.8
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
ENJ 141 hp 105 kW 2.5 L Diesel
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERII
GS
2.4 i
3.3 i
1995/01 - 2001/03B00 151 hp 111 kW 2.4 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER III
GS
2.4 i
3.3 i
1995/01 - 2001/03B00 151 hp 111 kW 2.4 L Petrol
R00 158 hp 116 kW 3.3 L Petrol
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGERIII
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.8
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
ENJ 141 hp 105 kW 2.5 L Diesel
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
CHRYSLERVOYAGER IV
RG
RS
2.4
2.5 CRD
2.8 CRD
3.3
3.3 AWD
3.8
2000/02 - 2008/12EDZ 147 hp 108 kW 2.4 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGA 174 hp 128 kW 3.3 L Petrol
EGM 174 hp 128 kW 3.3 L Petrol
EGH 218 hp 160 kW 3.8 L Petrol
ENJ 141 hp 105 kW 2.5 L Diesel
ENR 150 hp 110 kW 2.8 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
JEEPCHEROKEE
KJ
2.4 4x4
2.4 Laredo
2.5 CRD 4x4
2.8 CRD 4x4
3.7 4x4
3.7 Laredo
2001/09 - 2008/01ED1 147 hp 108 kW 2.4 L Petrol
EKG 204 hp 150 kW 3.7 L Petrol
EKG 204 hp 150 kW 3.7 L Petrol
EKG 211 hp 155 kW 3.7 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
ENR 163 hp 120 kW 2.8 L Diesel
R425DOHC 143 hp 105 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
JEEPLIBERTY
KJ
2.4 4x4
2.4 Laredo
2.5 CRD 4x4
2.8 CRD 4x4
3.7 4x4
3.7 Laredo
2001/09 - 2008/01ED1 147 hp 108 kW 2.4 L Petrol
EKG 204 hp 150 kW 3.7 L Petrol
EKG 204 hp 150 kW 3.7 L Petrol
EKG 211 hp 155 kW 3.7 L Petrol
ENR 150 hp 110 kW 2.8 L Diesel
ENR 163 hp 120 kW 2.8 L Diesel
R425DOHC 143 hp 105 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
