DELPHI BG9053RS Brake Disc

DELPHI part BG9053RS Brake Disc

DELPHI BG9053RS Brake Disc

by DELPHI

Manufacturer Part Number: BG9053RS

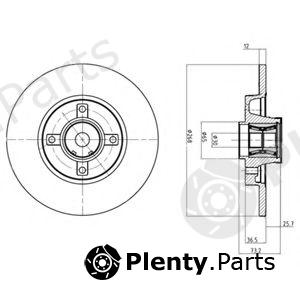

Сharacteristics:
  • Diameter [mm]: 268
  • Brake Disc Type: Solid
  • Brake Disc Thickness [mm]: 12
  • Minimum thickness [mm]: 10
  • Number of Holes: 4
  • Centering Diameter [mm]: 30
  • Mounting Type: Bolted
  • Depth [mm]: 73,2
  • Supplementary Article/Info 2: with wheel hub

Product Details

BrandDELPHI
DELPHI article (MPN)BG9053RS
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4249.45, 4249.46

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for DELPHI BG9053RS Brake Disc offered by A.B.S., APEC braking, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BSF, CAR, CASALS, CIFAM, FEBI BILSTEIN, FERODO, FOMAR, GIRLING, HELLA, HELLA PAGID, ICER, JP GROUP, JURATEK, JURID, KAGER, KAMOKA, KAWE, LPR, MAGNETI MARELLI, METELLI, METZGER, MGA, MINTEX, MOTAQUIP, PAGID, PROTECHNIC, R BRAKE, REMSA, ROADHOUSE, ROTINGER, SASIC, SNR, SWAG, TEMPLIN, TEXTAR, TRW, VAICO, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17835C
APEC brakingDSK2628
ATE24011201942
BENDIX562611B
BLUE PRINTADP1543O5, ADP154305
BORG & BECKBBD5842S
BOSCHO986479387, O986479383, 0986479387, 0986479383
Brake ENGINEERINGDI956768, DI956925S, DI956925
BREMBO08A72917, O8.A729.17
BSF11543R
CAR142.1387, 1421388
CASALS55570
CIFAM8001395
FEBI BILSTEIN37680
FERODODDF1735, DDF17351
FOMARFO4206
GIRLING6061286
HELLA8DD355114741
HELLA PAGID8DD355114741
ICER78BD50231
JP GROUP4163201709
JURATEKCIT145C, CIT145
JURID562611J
KAGER370988
KAMOKA1031079
KAWE6105820
LPRC1015PCA
MAGNETI MARELLI360704005700
METELLI231395
METZGER6110726
MGAD1740R
MINTEXMDC2O3O, MDC2030
MOTAQUIPLVBD1254
PAGID54687
PROTECHNICPRD5276B
R BRAKE78RBD15023
REMSA6105820
ROADHOUSE61O58.OO, 61058.00, 6105820
ROTINGERRT3230BST5, RT3230BS
SASIC6100009
SNRKF15960U, KF15962U, KF159.6OU
SWAG62937680
TEMPLIN0311013141
TEXTAR92168700, 921687OO
TRWDF6128BS
VAICOV4240009
VALEO197117
WOKINGD6105820, P61058.00, P61058.20
ZIMMERMANN180.3024.00, 18O.3O24.OO

Vehicle fitment / DELPHI BG9053RS Brake Disc compatibility

This product fits the following models: CITROËN C4, CITROËN C4 GRAND PICASSO I, CITROËN C4 II, CITROËN C4 PALLAS, CITROËN C4 PICASSO I, PEUGEOT 3008, PEUGEOT 308, PEUGEOT 308 CC, PEUGEOT 308 SW, PEUGEOT 5008, PEUGEOT GRAND RAID, PEUGEOT PARTNER, PEUGEOT PARTNER TEPEE, PEUGEOT RANCH, etc. See all vehicles this product (DELPHI BG9053RS) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC4
1.6 16V
1.6 HDi
2.0 16V
2006/07 - 9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
Front wheel
Sedan / Saloon
CITROËNC4 GRAND PICASSO I
UA
1.6 16V
1.6 HDi
1.6 HDi 110
1.6 THP 155
1.6 VTi 120
1.8 i 16V
2.0 HDi 138
2.0 HDi 150
2.0 HDi 165
2.0 i 16V
2006/10 - 5FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
6FY(EW7A) 125 hp 92 kW 1.8 L Petrol
9HL(DV6C) 112 hp 82 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHJ(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
CITROËNC4 II
B7
1.4 VTi 95
1.6 HDi 110
1.6 HDi 90
1.6 THP 155
1.6 VTi 120
2.0 BlueHDi 150
2009/11 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
8FP(EP3) 95 hp 70 kW 1.4 L Petrol
9HP(DV6DTED) 92 hp 68 kW 1.6 L Diesel
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
CITROËNC4 PALLAS
1.6 16V
1.6 HDi
2.0 16V
2006/07 - 9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
Front wheel
Sedan / Saloon
CITROËNC4 PICASSO I
UD
1.6 16V
1.6 HDi
1.6 HDi 110
1.6 THP 140
1.6 THP 155
1.6 VTi 120
1.8 Bifule
1.8 i 16V
2.0 HDi 138
2.0 HDi 150
2.0 HDi 165
2.0 i 16V
2007/02 - 2013/085FT(EP6DT) 140 hp 103 kW 1.6 L Petrol
5FV(EP6CDT) 156 hp 115 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
6FY(EW7A) 125 hp 92 kW 1.8 L Petrol
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HY(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHJ(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
PEUGEOT3008
1.6 HDi
1.6 THP
1.6 VTi
2.0 HDi
2.0 HDi 150 / BlueHDi 150
2.0 HDi Hybrid4
2009/06 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
5FV(EP6DT) 156 hp 115 kW 1.6 L Petrol
5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHC(DW10CTED4) 165 hp 120 kW 2 L Hybrid
RHH(DW10CTED4) 165 hp 120 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
PEUGEOT308
4A
4C
2.0 HDi
2007/09 - RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 140 hp 103 kW 2 L Diesel
Front wheel
Hatchback / Sportback / Sport hatch
PEUGEOT308 CC
1.6 16V
1.6 HDi
2.0 HDi
2009/04 - 5FX(EP6DT) 150 hp 110 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
9HR(DV6C) 112 hp 82 kW 1.6 L Diesel
RHF(DW10BTED4) 140 hp 103 kW 2 L Diesel
Front wheel
Convertible / cabrio
PEUGEOT308 SW
1.4 16V
1.6 16V
1.6 HDi
2.0 HDi
2007/09 - 5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
8FS(EP3) 95 hp 70 kW 1.4 L Petrol
9HV(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
RHR(DW10BTED4) 140 hp 103 kW 2 L Diesel
Front wheel
Estate / Turnier / Vario / Wagon
PEUGEOT5008
1.6 16V
1.6 HDi
2.0 HDi
2.0 HDi 150 / BlueHDi 150
2009/06 - 5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
5FW(EP6) 120 hp 88 kW 1.6 L Petrol
EP6 120 hp 88 kW 1.6 L Petrol
EP6CDT 156 hp 115 kW 1.6 L Petrol
9HZ(DV6TED4) 110 hp 80 kW 1.6 L Diesel
AHX(DW10FD) 150 hp 110 kW 2 L Diesel
RHE(DW10CTED4) 150 hp 110 kW 2 L Diesel
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
PEUGEOTGRAND RAID
1.6
1.6 HDi
1.6 HDi 16V
2008/04 - 5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
9HL(DV6C) 112 hp 82 kW 1.6 L Diesel
9HN(DV6ETED4) 75 hp 55 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HS(DV6TED4BU) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
PEUGEOTPARTNER
1.6
1.6 HDi
1.6 HDi 16V
2008/04 - 5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
9HS(DV6TED4BU) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
PEUGEOTPARTNER TEPEE
1.6
1.6 HDi
1.6 HDi 16V
2008/04 - 5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
9HL(DV6C) 112 hp 82 kW 1.6 L Diesel
9HN(DV6ETED4) 75 hp 55 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
PEUGEOTRANCH
1.6
1.6 HDi
1.6 HDi 16V
2008/04 - 5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
5FS(EP6C) 120 hp 88 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
5FK(EP6CB) 98 hp 72 kW 1.6 L Petrol
NFR(TU5JP4B) 90 hp 66 kW 1.6 L Petrol
NFU(TU5JP4) 109 hp 80 kW 1.6 L Petrol
9HL(DV6C) 112 hp 82 kW 1.6 L Diesel
9HN(DV6ETED4) 75 hp 55 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HS(DV6TED4BU) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
9HT(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HW(DV6BTED4) 75 hp 55 kW 1.6 L Diesel
9HZ(DV6TED4) 109 hp 80 kW 1.6 L Diesel
9HV(DV6TED4) 90 hp 66 kW 1.6 L Diesel
9HX(DV6ATED4) 90 hp 66 kW 1.6 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
