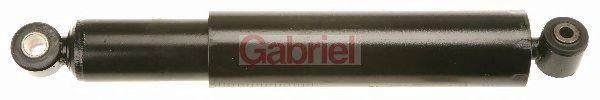

GABRIEL 83247 Shock Absorber

GABRIEL part 83247 Shock Absorber

GABRIEL 83247 Shock Absorber

by GABRIEL

Manufacturer Part Number: 83247

Сharacteristics:
  • Fitting Position: Rear Axle
  • Shock Absorber Type: Oil Pressure
  • Shock Absorber Design: Telescopic Shock Absorber
  • Shock Absorber System: Twin-Tube
  • Shock Absorber Mounting Type: Top eye
  • Shock Absorber Mounting Type: Bottom eye
  • Diameter [mm]: 49
  • Reinforced Version:
  • Length 1 [mm]: 568
  • Length 2 [mm]: 360
  • Piston conrod diameter [mm]: 14
  • Quantity per Axle: 2

Product Details

BrandGABRIEL
GABRIEL article (MPN)83247
Vehicle subsystemSuspension

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, DEUTZ, FIAT / LANCIA / ALFA, IVECO, MAGIRUS-DEUTZ, RENAULT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT5206AK, 4439194, 5983928, 520635, 5206AG, 5206AJ, 5206X8, 5206AF, 5206AH, 5206Y0, 7562124, 908321294, 90838165, 520628, 520629, 520652
DEUTZ71712492
FIAT / LANCIA / ALFA4434811, 71712484, 4434812, 5983928, 71712492, 71712483, 71712485, 4439194
IVECO4434812, 71712492, 5983928
MAGIRUS-DEUTZ71712492
RENAULT8671006077

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for GABRIEL 83247 Shock Absorber offered by AL-KO, BENDIX, BILSTEIN, BOGE, DELPHI, DIPASPORT, KYB, MAGNETI MARELLI, MGA, MONROE, NK, QUINTON HAZELL, SACHS, TRW manufacturers

ManufacturerReference numbers
AL-KO2852, 200940, 2094, 208520
BENDIX062396HB
BILSTEINBNE6561, BNE6562, 19-065625, 19-065618
BOGE328660, 325510
DELPHID2253370, D2253371, D2253922
DIPASPORTSSB7011HN
KYB445022, 445092
MAGNETI MARELLI357011080000
MGAAM5445H, AM5545H, AM5447H
MONROEV2301, V2037, V2027
NK60992852
QUINTON HAZELL127130, 127221
SACHS110498, 110568
TRWJHE221S

Vehicle fitment / GABRIEL 83247 Shock Absorber compatibility

This product fits the following models: CITROËN C25, FIAT DUCATO, FIAT DUCATO PANORAMA, FIAT TALENTO, PEUGEOT J5, etc. See all vehicles this product (GABRIEL 83247) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNC25
280
290
1.8
1.8 E
1.9 D
1.9 D 1400
1.9 DT
1.9 TD
2.0
2.0 4x4
2.0 E
2.5 D
2.5 D 4x4
2.5 DT
2.5 DT 4x4
2.5 D Turbo
2.5 D Turbo 4x4
1981/09 - 1994/03169(XM7T) 68 hp 50 kW 1.8 L Petrol
169(XM7T) 69 hp 51 kW 1.8 L Petrol
170A(XN1T) 79 hp 58 kW 2 L Petrol
170B(XN1T) 79 hp 58 kW 2 L Petrol
170C(XN1T) 84 hp 62 kW 2 L Petrol
170C(XN1T) 84 hp 62 kW 2 L Petrol
78 hp 57 kW 2 L Petrol
75 hp 55 kW 2.5 L Diesel
75 hp 55 kW 2.5 L Diesel
CRD93L(U25-661) 73 hp 54 kW 2.5 L Diesel
78 hp 57 kW 2 L Petrol
82 hp 60 kW 1.9 L Diesel
84 hp 62 kW 2 L Petrol
CRD93LS(U25-673) 95 hp 70 kW 2.5 L Diesel
CRD93L(U25-661) 73 hp 54 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
D9B(XUD9A/U) 69 hp 51 kW 1.9 L Diesel
DJY(XUD9A) 69 hp 51 kW 1.9 L Diesel
M705 82 hp 60 kW 1.9 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
280
290
1.8
1.9 D
1.9 TD
2.0
2.0 4x4
2.4 D
2.5 D
2.5 D 4x4
2.5 TD
2.5 TD 4x4
1982/01 - 1994/05149B1.000 71 hp 52 kW 1.9 L Diesel
169B 67 hp 49 kW 1.8 L Petrol
170B 75 hp 55 kW 2 L Petrol
170D 84 hp 62 kW 2 L Petrol
XN1T 75 hp 55 kW 2 L Petrol
170B 75 hp 55 kW 2 L Petrol
170D 84 hp 62 kW 2 L Petrol
XN1T 79 hp 58 kW 2 L Petrol
170D 84 hp 62 kW 2 L Petrol
170D 86 hp 63 kW 2 L Petrol
280A1.000 82 hp 60 kW 1.9 L Diesel
8140.27 92 hp 68 kW 2.5 L Diesel
8140.27 95 hp 70 kW 2.5 L Diesel
8140.61 72 hp 53 kW 2.5 L Diesel
8140.61 75 hp 55 kW 2.5 L Diesel
8144.61 75 hp 55 kW 2.5 L Diesel
8144.21 92 hp 68 kW 2.5 L Diesel
8144.61 72 hp 53 kW 2.4 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
FIATDUCATO PANORAMA
280
290
1.8
1.9 D
1.9 TD
2.0
2.0 4x4
2.4 D
2.5 D
2.5 D 4x4
2.5 TD
2.5 TD 4x4
1982/07 - 1994/05149B1.000 71 hp 52 kW 1.9 L Diesel
170D 84 hp 62 kW 2 L Petrol
170D 84 hp 62 kW 2 L Petrol
170D 86 hp 63 kW 2 L Petrol
170D 86 hp 63 kW 2 L Petrol
280A1.000 82 hp 60 kW 1.9 L Diesel
8140.27 95 hp 70 kW 2.5 L Diesel
8144.21.220 92 hp 68 kW 2.5 L Diesel
8144.21 92 hp 68 kW 2.5 L Diesel
8144.61 72 hp 53 kW 2.4 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
8144.67 75 hp 55 kW 2.5 L Diesel
CRD93L(U25-661) 75 hp 55 kW 2.5 L Diesel
XM7T 69 hp 51 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
FIATTALENTO
290
1.9 D
2.0
290U4
290UA4
290UAK
290UTK
290UEH4
290UEHK
290UK
1989/03 - 1994/03149B1.000 71 hp 52 kW 1.9 L Diesel
170B 75 hp 55 kW 2 L Petrol
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTJ5
280L
280P
290L
290P
1.8
1.9 D
2.0
2.5 D
2.5 D 4x4
2.5 DT
2.5 TD
2.5 TD 4x4
1981/09 - 1994/03169B(XM7T) 69 hp 51 kW 1.8 L Petrol
170B(XN1T) 75 hp 55 kW 2 L Petrol
170(XN1T) 79 hp 58 kW 2 L Petrol
170D(XN1TACP) 84 hp 62 kW 2 L Petrol
170D(XN1TACP) 84 hp 62 kW 2 L Petrol
XN1TA 84 hp 62 kW 2 L Petrol
69 hp 51 kW 1.8 L Petrol
CRD93 73 hp 54 kW 2.5 L Diesel
CRD93L 95 hp 70 kW 2.5 L Diesel
CRD93LS(U25/673) 95 hp 70 kW 2.5 L Diesel
CRD93(U25/661) 73 hp 54 kW 2.5 L Diesel
D9B(XUD9A) 69 hp 51 kW 1.9 L Diesel
XUD9 69 hp 51 kW 1.9 L Diesel
D9B(XUD9A) 70 hp 51 kW 1.9 L Diesel
XN1P 79 hp 58 kW 2 L Petrol
XN1T 75 hp 55 kW 2 L Petrol
XN1TA 94 hp 69 kW 2 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
