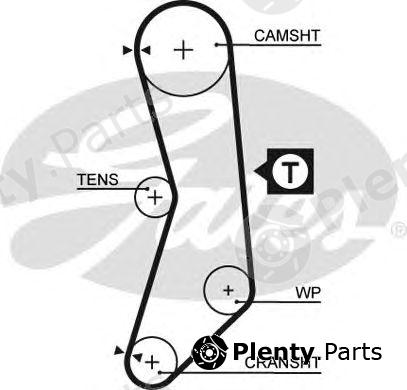

GATES 5544XS Timing Belt

GATES part 5544XS Timing Belt

GATES 5544XS Timing Belt

by GATES

Manufacturer Part Number: 5544XS
Alternative GATES part number(s): K015544XS, KP15544XS, KP15544XS-2

Сharacteristics:
  • Number of Teeth: 125
  • Width [mm]: 15
  • Part number of the recommended special tools: STT-1

Product Details

BrandGATES
GATES article (MPN)5544XS Alternative GATES part number(s): K015544XS, KP15544XS, KP15544XS-2
Vehicle subsystemBelt Drive

Original (OEM) part numbers

Suitable for FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
FIAT / LANCIA / ALFA46736501, 46750865, 55203786, 71746353, 71736719

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for GATES 5544XS Timing Belt offered by ACDelco, AE, AIRTEX, AUTEX, AUTOKIT, AUTOTEAM, BEHR HELLA SERVICE, BGA, BOSCH, BREDA LORETT, BRT Bearings, CALIBER, COMLINE, CONTITECH, CORTECO, DAYCO, FAI AutoParts, FEBI BILSTEIN, FLENNOR, GK, GKN-SPIDAN, GOODYEAR, GRAF, HELLA, HEPU, HUTCHINSON, INA, IPD, JP GROUP, KLAXCAR FRANCE, KM International, KWP, LEMFÖRDER, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MGA, MOTAQUIP, OPTIBELT, OPTIMAL, PROCODIS FRANCE, QUINTON HAZELL, ROULUNDS RUBBER, RUVILLE, Saleri SIL, SASIC, SKF, SNR, SWAG, TREVI AUTOMOTIVE, TRISCAN, VALEO, VEYANCE, WILMINK GROUP manufacturers

ManufacturerReference numbers
ACDelcoAB11127S
AETBK314, TB676
AIRTEXWPK161601, TB0083
AUTEX791041, K985264B
AUTOKIT045045
AUTOTEAMKAT1259, KATW1259
BEHR HELLA SERVICE9XR376818-041, 8MP376803-821
BGATB2207K
BOSCH1987948080, 1987949528, 1987948911, 1987946570, 1987948799
BREDA LORETTKCD0586, KPA0586A
BRT BearingsPBTKW10128, PBTK128
CALIBER0186KF, 0186KFW
COMLINECTBK082
CONTITECHCT997, CT997WP1, CT997K1
CORTECO289008, 289097
DAYCOKTB292, 125P8SD150H, 94861, 125P8S150H, KTBWP2920
FAI AutoPartsTBK188, 80125, DTTWDFAI
FEBI BILSTEIN17815, 19657
FLENNORF904433V, 4433V, FP04433V, FP04433V-2
GKK985094D, 791041, K985264B
GKN-SPIDAN447671
GOODYEAR125H8P150, G1524H
GRAFKP7392
HELLA9XR376818-041, 8MP376803-821
HEPUPK10641, 29-0036, PK00943
HUTCHINSONKH146WP23, 125AHPP15, 125AHP15, KH146, KH146WP40, KH116WP23
INA536025710, 530020510, 530020530
IPDPK10641, 290036
JP GROUP3312102709
KLAXCAR FRANCE40084Z
KM InternationalKFI186, WKFI186
KWPKW7392
LEMFÖRDER2572601
MAGNETI MARELLI341404810001, 341304810000, 341311301201, 340018181130
MAPCO43005, 23005
METELLI3007392
METZGERWM94861, WMZ025, WMZ2920WP
MEYLE2510490010
MGA739K2, 286K4
MOTAQUIPVTB792, VTT203
OPTIBELTZRK1438, HR40002X15MM, KT1324
OPTIMALSK1421AQ1, SK1421, R-1476
PROCODIS FRANCE09CD97, KTD1062
QUINTON HAZELLQBPK6490, QTB646, QBPK6491, QBK649
ROULUNDS RUBBERRR1130K1, RR1130, TBK251, 125HG150
RUVILLE55801741, 555838, 55801742, 5601571, 5580174
Saleri SILK2PA983A
SASIC1766014, 1756018, 3906018
SKFVKMC022101, VKMC02210, VKMC02210-2, VKMA02210
SNRKD45835
SWAG70919657, 70020063
TREVI AUTOMOTIVEKD1205S1, KD1205S, KD1205
TRISCAN86455544XS, 864715033
VALEO614530
VEYANCEK1G1524H, 125H8P150, G1524H
WILMINK GROUPWG1251441, WG1152055, WG1151927, WG1238116, WG1151613, WG1092967, WG1173508, WG1238463, WG1254080

Vehicle fitment / GATES 5544XS Timing Belt compatibility

This product fits the following models: FIAT CINQUECENTO, FIAT PANDA, FIAT PUNTO, FIAT SEICENTO 600, FIAT UNO, LANCIA Y, etc. See all vehicles this product (GATES 5544XS) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FIATCINQUECENTO
170
1.1 Sporting
170AH
1994/10 - 1998/01176B2.000 54 hp 40 kW 1.1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
FIATPANDA
141
141A
169
1000 i.e
1000 i.e. KAT
1.1
1100
1100 4x4
1100 Trekking 4x4
1987/10 - 141C2.000 45 hp 33 kW 1 L Petrol
156A2.246 45 hp 33 kW 1 L Petrol
156A2.246 45 hp 33 kW 1 L Petrol
156C.046 50 hp 37 kW 1.1 L Petrol
156C.046 50 hp 37 kW 1.1 L Petrol
176B2.000 54 hp 40 kW 1.1 L Petrol
187A1.000 54 hp 40 kW 1.1 L Petrol
156C.046 50 hp 37 kW 1.1 L Petrol
187A1.000 54 hp 40 kW 1.1 L Petrol
176B2.000 54 hp 40 kW 1.1 L Petrol
187A1.000 54 hp 40 kW 1.1 L Petrol
AWD / 4WD
Front wheel
Front wheel
AWD / 4WD
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
FIATPUNTO
176
176L
1.1
55 1.1
1993/09 - 2000/02176A6.000 54 hp 40 kW 1.1 L Petrol
176B2.000 54 hp 40 kW 1.1 L Petrol
176B2.000 54 hp 40 kW 1.1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
FIATSEICENTO 600
187
287
1.1
187AXB
187AXB1A
187CXB/C
1998/01 - 2010/01176B2.000 54 hp 40 kW 1.1 L Petrol
176B2.000 54 hp 40 kW 1.1 L Petrol
187A1.000 54 hp 40 kW 1.1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LCV / Van / Cargo
FIATUNO
146A/E
1.0
1.0 iE
1.1
45 1.0
45 i.e. 1.0
50 1.1
50 i.e. 1.1

146A.ED
1984/04 - 2006/06146C3.000 49 hp 36 kW 1.1 L Petrol
156A2.000 42 hp 31 kW 1 L Petrol
156A2.048 44 hp 32 kW 1 L Petrol
156A2.100 44 hp 32 kW 1 L Petrol
156A2.246 45 hp 33 kW 1 L Petrol
156A2.246 46 hp 34 kW 1 L Petrol
156C.046 50 hp 37 kW 1.1 L Petrol
160A3.000 56 hp 41 kW 1.1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
LANCIAY
840A
1.1
840AE
1995/11 - 2003/09176B2.000 54 hp 40 kW 1.1 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
