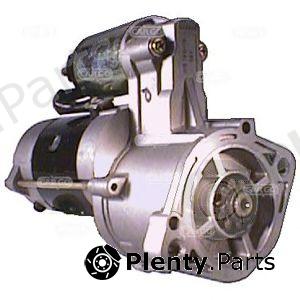

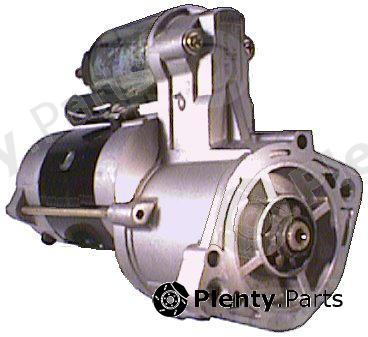

HC-Cargo 110809 Starter

HC-Cargo 110809 Starter

Manufacturer Part Number: 110809

Сharacteristics:

Voltage [V]: 12
Rated Power [kW]: 2
Rotation Direction: Clockwise rotation
Flange Ø [mm]: 76,9
Number of Teeth: 10
Number of Teeth: 12
Number of Teeth: 13
Number of mounting bores: 2
Pinion Rest Position [mm]: 0

Product Details

Brand	HC-Cargo
HC-Cargo article (MPN)	110809
Vehicle subsystem	Starter System

Original (OEM) part numbers

Suitable for HYUNDAI / KIA (MOBIS), MITSUBISHI vehicles

OE manufacturer	OEM reference numbers
HYUNDAI / KIA (MOBIS)	3610042011, 3610042010
MITSUBISHI	MD050205, MD061154, MD069166, MD070934, MD084414, MD162975, MD164975, MD191433, HSG120500, M002T56171, M002T56181, M002T56182, M002T56185, M002T57271, M002T62971, M003T61071, M2T56171, M2T56181, M2T56182, M2T56185, M2T57271, M2T57273, M2T62971, M3T61071, MD156986, MD191435, M002T57273

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for HC-Cargo 110809 Starter offered by AD KÜHNER, AS-PL, BLUE PRINT, BOSCH, CASCO, DELCO REMY, DRI, ELSTOCK, ERA, FARCOM, FRIESEN, GKN-SPIDAN, HELLA, LESTER (WAIglobal), LUCAS ELECTRICAL, MAGNETI MARELLI, MESSMER, POWER MAX, SANDO, UNIPOINT, VALEO, WAI manufacturers

Manufacturer	Reference numbers
AD KÜHNER	20344
AS-PL	S5005
BLUE PRINT	ADC41237, ADC41218, ADC412503, ADC41217, ADC41209, ADC41218NS, ADC41215
BOSCH	0986014141
CASCO	CST35100GS
DELCO REMY	DRS3036, DRS4141, DRS3036N
DRI	326.014.102, 626.017.102, 326.005.102, 326.004.102
ELSTOCK	25-0466, 25-0436, 25-0434, 25-1343
ERA	220013
FARCOM	103234
FRIESEN	27-52.502, 27-52.506, 8052506, 27-52.514
GKN-SPIDAN	1110
HELLA	8EA726436-001, 8EA011611-131
LESTER (WAIglobal)	103-391, 103-347, 16853, 103-212
LUCAS ELECTRICAL	LRS00896, LRS00439, 61924100
MAGNETI MARELLI	063522623, 943203441010, 063522623010
MESSMER	220013
POWER MAX	8212468
SANDO	60351001
UNIPOINT	STR-2901
VALEO	MG120413, M000A025, MG120906, TM000A06101, 438123, 455905
WAI	2-1169-MI

Vehicle fitment / HC-Cargo 110809 Starter compatibility

This product fits the following models: HYUNDAI GALLOPER I, HYUNDAI GALLOPER II, HYUNDAI GRACE, HYUNDAI H-1, HYUNDAI H100, HYUNDAI H100 GRACE, HYUNDAI H 150, HYUNDAI H-1 STAREX, HYUNDAI H 200, HYUNDAI PORTER, HYUNDAI SATELLITE, MITSUBISHI ASPIRE VI, MITSUBISHI CHARIOT, MITSUBISHI COLT III, MITSUBISHI COLTIII, MITSUBISHI COLTRODEO, MITSUBISHI DELICA, MITSUBISHI ETERNA IV, MITSUBISHI ETERNA V, MITSUBISHI GALANT II, MITSUBISHI GALANTII, MITSUBISHI GALANT IV, MITSUBISHI GALANTIV, MITSUBISHI GALANT V, MITSUBISHI GALANTV, MITSUBISHI GALANT VI, MITSUBISHI GALANTVI, MITSUBISHI L 200, MITSUBISHI L200 STORM, MITSUBISHI L 300, MITSUBISHI L300 EXPRESS, MITSUBISHI L300 STAR, MITSUBISHI L 300 STAR, MITSUBISHI LANCER V, MITSUBISHI LANCERV, MITSUBISHI LEGNUM VI, MITSUBISHI LIBERO V, MITSUBISHI MIGHTY MAX, MITSUBISHI MONTERO , MITSUBISHI MONTERO II, MITSUBISHI NIMBUS, MITSUBISHI PAJERO I, MITSUBISHI PAJERO I CANVAS TOP, MITSUBISHI PAJERO II, MITSUBISHI PAJERO II CANVAS TOP, MITSUBISHI PAJERO SFX SHOGUN II, MITSUBISHI PAJEROSHOGUN , MITSUBISHI PAJEROSHOGUN I, MITSUBISHI PAJEROSHOGUNII, MITSUBISHI PAJEROSHOGUN II, MITSUBISHI RVR, MITSUBISHI SHOGUN II, MITSUBISHI SPACE, MITSUBISHI SPACE RUNNER, MITSUBISHI TRITON, PROTON PERSONA, PROTON PERSONA 400, PROTON WIRA, etc. See all vehicles this product (HC-Cargo 110809) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
HYUNDAI	GALLOPER I	2.5 TD	1991/08 - 1998/07	4D56T 85 hp 62 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HYUNDAI	GALLOPER II JK-01	2.5 TCi D 2.5 TD	1998/08 - 2003/12	D4BA 88 hp 65 kW 2.5 L Diesel D4BH 105 hp 77 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HYUNDAI	GRACE P	2.5 D	1993/07 - 1994/12	D4BA 75 hp 55 kW 2.5 L Diesel D4BX 75 hp 55 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
HYUNDAI	H-1	2.5 TD	2000/03 - 2004/04	D4BF 80 hp 59 kW 2.5 L Diesel D4BH 101 hp 74 kW 2.5 L Diesel D4BH 99 hp 73 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo
HYUNDAI	H100 P	2.5 D	1993/07 - 1994/12	D4BA 75 hp 55 kW 2.5 L Diesel D4BX 75 hp 55 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
HYUNDAI	H100 GRACE P	2.5 D	1993/07 - 1994/12	D4BA 75 hp 55 kW 2.5 L Diesel D4BX 75 hp 55 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
HYUNDAI	H 150 P	2.5 D	1993/07 - 1994/12	D4BA 75 hp 55 kW 2.5 L Diesel D4BX 75 hp 55 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
HYUNDAI	H-1 STAREX	2.5 D 2.5 TD 2.5 TD 4WD	1997/06 - 2004/04	D4BF 78 hp 57 kW 2.5 L Diesel D4BF 80 hp 59 kW 2.5 L Diesel	AWD / 4WD Rear wheel	MPV / Van / Minivan
HYUNDAI	H 200	2.5 D 2.5 TD 2.5 TD 4WD	1997/06 - 2004/04	D4BF 78 hp 57 kW 2.5 L Diesel D4BF 80 hp 59 kW 2.5 L Diesel D4BF 80 hp 59 kW 2.5 L Diesel D4BH 101 hp 74 kW 2.5 L Diesel D4BH 99 hp 73 kW 2.5 L Diesel	AWD / 4WD Rear wheel	LCV / Van / Cargo MPV / Van / Minivan
HYUNDAI	PORTER	2.5 TD	1994/07 - 2004/04	D4BA 78 hp 57 kW 2.5 L Diesel	Rear wheel	Passenger Van / Wagon / Minibus
HYUNDAI	SATELLITE	2.5 D 2.5 TD 2.5 TD 4WD	1997/06 - 2004/04	D4BF 78 hp 57 kW 2.5 L Diesel D4BF 80 hp 59 kW 2.5 L Diesel	AWD / 4WD Rear wheel	MPV / Van / Minivan
MITSUBISHI	ASPIRE VI EA	2.0 TDI EA6A	1996/09 - 2004/10	4D68(SOHC) 90 hp 66 kW 2 L Diesel 4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Sedan / Saloon
MITSUBISHI	CHARIOT D0V/W N3W N4W	1.8 TD 2.0 TD D09V D09W N35W N38W	1986/06 - 1998/10	4D65T 75 hp 55 kW 1.8 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	MPV / Van / Minivan
MITSUBISHI	COLT III C5A	1.8 Diesel GLX C54A	1988/04 - 1992/05	4D65 60 hp 44 kW 1.8 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch
MITSUBISHI	COLTIII C5A	1.8 Diesel GLX C54A	1988/04 - 1992/05	4D65 60 hp 44 kW 1.8 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch
MITSUBISHI	COLTRODEO K3T K2T K1T K0T	2.5 D 2.5 D 4WD 2.5 TD 4WD K14T K24T K34T	1986/11 - 1996/10	4D56(8V) 70 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Pickup truck / Pickup
MITSUBISHI	DELICA LO3P/G L02P P0W P1W P0V P1V P2V P2W P0W P1W P2W	2.3 D 2.5 D 2.5 TD 4WD L038P P05V P05W P15V P25V P05W P05V P15V P15T P25W P25V	1983/04 -	4D55 68 hp 50 kW 2.3 L Diesel 4D56(8V) 69 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
MITSUBISHI	ETERNA IV E3A	1.8 Turbo-D E34A	1987/12 - 1992/10	4D65T 75 hp 55 kW 1.8 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
MITSUBISHI	ETERNA V E5A E7A E8A	2.0 GLSTD E57A	1992/11 - 1996/08	4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Sedan / Saloon
MITSUBISHI	GALANT II A16 A16V	2.3 Turbo-D A167 A167V	1980/09 - 1984/05	4D55T 84 hp 62 kW 2.3 L Diesel	Rear wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	GALANTII A16 A16V	2.3 Turbo-D A167 A167V	1980/09 - 1984/05	4D55T 84 hp 62 kW 2.3 L Diesel	Rear wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	GALANT IV E3A	1.8 Turbo-D E34A	1987/12 - 1992/10	4D65T 75 hp 55 kW 1.8 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
MITSUBISHI	GALANTIV E3A	1.8 Turbo-D E34A	1987/12 - 1992/10	4D65T 75 hp 55 kW 1.8 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
MITSUBISHI	GALANT V E5A E7A E8A	2.0 GLSTD E57A	1992/11 - 1996/08	4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
MITSUBISHI	GALANTV E5A E7A E8A	2.0 GLSTD E57A	1992/11 - 1996/08	4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
MITSUBISHI	GALANT VI EA	2.0 TDI EA6A EA6W	1996/09 - 2004/10	4D68(SOHC) 90 hp 66 kW 2 L Diesel 4D68(SOHC) 90 hp 66 kW 2 L Diesel 4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	GALANTVI EA	2.0 TDI EA6A EA6W	1996/09 - 2004/10	4D68(SOHC) 90 hp 66 kW 2 L Diesel 4D68(SOHC) 90 hp 66 kW 2 L Diesel 4D68T 90 hp 66 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	L 200 K3T K2T K1T K0T	2.5 D 2.5 D 4WD 2.5 TD 4WD K14T K24T K34T	1986/11 - 1996/10	4D56(8V) 70 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Pickup truck / Pickup
MITSUBISHI	L200 STORM K3T K2T K1T K0T	2.5 D 2.5 D 4WD 2.5 TD 4WD K14T K24T K34T	1986/11 - 1996/10	4D56(8V) 70 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Pickup truck / Pickup
MITSUBISHI	L 300 L03P LO3P/G L02P P0W P1W P0V P1V P2V P2W P0W P1W P2W	2.3 D 2.5 D 2.5 TD 4WD L038P L038P L068P L039P P05V P05W P15V P25V P05W P05V P15V P15T P25W P25V	1983/04 -	4D55 68 hp 50 kW 2.3 L Diesel 4D56(8V) 69 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
MITSUBISHI	L300 EXPRESS L03P SA SB SC SD SE P0W P1W SF SG SH SJ WA P0V P	2.3 D 2.5 D L038P L068P P05V P05W P15V	1983/09 - 2006/02	4D55 68 hp 50 kW 2.3 L Diesel 4D56(8V) 69 hp 51 kW 2.5 L Diesel	Rear wheel	LCV / Van / Cargo
MITSUBISHI	L300 STAR LO3P/G L02P SA SB SC SD SE	2.3 D L038P	1983/04 - 1986/10	4D55 68 hp 50 kW 2.3 L Diesel	Rear wheel	Passenger Van / Wagon / Minibus
MITSUBISHI	L 300 STAR P0W P1W P2W SD SE SF SG S	2.5 D 2.5 TD 4WD P25V P05W P05V P15V P15T P25W P25V	1986/11 -	4D56(8V) 69 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
MITSUBISHI	LANCER V CB/DA CB/DA CC CBW CDW CBW CDW CC CE	2.0 D 2.0 Diesel CB8A CB8W	1992/06 - 2003/10	4D68 68 hp 50 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	LANCERV CB/DA CBW CDW	2.0 D 2.0 Diesel CB8A CB8W	1992/06 - 2003/10	4D68 68 hp 50 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	LEGNUM VI EA	2.0 TDI EA6W	1996/09 - 2003/10	4D68(SOHC) 90 hp 66 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon
MITSUBISHI	LIBERO V CB/DA CBW CDW	2.0 D 2.0 Diesel CB8A CB8W	1992/06 - 2003/10	4D68 68 hp 50 kW 2 L Diesel	Front wheel	Estate / Turnier / Vario / Wagon Sedan / Saloon
MITSUBISHI	MIGHTY MAX K3T K2T K1T K0T	2.5 D 2.5 D 4WD 2.5 TD 4WD K14T K24T K34T	1986/11 - 1996/10	4D56(8V) 70 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Pickup truck / Pickup
MITSUBISHI	MONTERO L04G L04G L14G V2W V4W V3W V2W V4W	2.3 TD 2.5 TD 2.5 TD 4WD L043G L048G L044G L049G V24C V24W	1982/12 - 2000/04	4D55T 84 hp 62 kW 2.3 L Diesel 4D56T 84 hp 62 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel 4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	MONTERO II V3W V2W V4W	2.5 TD 4WD V24C V24W	1990/12 - 1999/10	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHI	NIMBUS D0V/W UA UB UC N3W N4W UF	1.8 TD 2.0 TD D09V D09W N35W N38W	1986/06 - 1998/10	4D65T 75 hp 55 kW 1.8 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	MPV / Van / Minivan
MITSUBISHI	PAJERO I L04G L14G L04G L14G NA NB NC ND NE NF NG	2.5 TD L044G L049G	1990/01 - 1991/12	4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHI	PAJERO I CANVAS TOP L04G	2.3 TD 2.5 TD L043G L048G L044G L049G	1982/12 - 1989/10	4D55T 84 hp 62 kW 2.3 L Diesel 4D56T 84 hp 62 kW 2.5 L Diesel	AWD / 4WD	SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	PAJERO II V3W V2W V4W V3W V2W V4W NH NJ NK NL	2.5 TD 4WD V24C V24W	1990/12 - 1999/10	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHI	PAJERO II CANVAS TOP V2W V4W	2.5 TD 4WD V24C V24W	1990/12 - 2000/04	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	PAJERO SFX SHOGUN II V3W V2W V4W	2.5 TD 4WD V24C V24W	1990/12 - 1999/10	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
MITSUBISHI	PAJEROSHOGUN L04G L14G V2W V4W	2.5 TD 2.5 TD 4WD L044G L049G V24C V24W	1990/01 - 2000/04	4D56T 87 hp 64 kW 2.5 L Diesel 4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	PAJEROSHOGUN I L04G L04G L14G	2.3 TD 2.5 TD L043G L048G L044G L049G	1982/12 - 1991/12	4D55T 84 hp 62 kW 2.3 L Diesel 4D56T 84 hp 62 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	PAJEROSHOGUNII L04G V3W V2W V4W	2.3 TD 2.5 TD 2.5 TD 4WD L043G L048G L044G L049G V24C V24W	1982/12 - 1999/10	4D55T 84 hp 62 kW 2.3 L Diesel 4D56T 84 hp 62 kW 2.5 L Diesel 4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	PAJEROSHOGUN II V2W V4W V3W V2W V4W	2.5 TD 4WD V24C V24W	1990/12 - 2000/04	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	RVR N1W N2W	2.0 TD N18W	1992/10 - 1999/08	4D68T 82 hp 60 kW 2 L Diesel	Front wheel	MPV / Van / Minivan
MITSUBISHI	SHOGUN II V2W V4W V3W V2W V4W	2.5 TD 4WD V24C V24W	1990/12 - 2000/04	4D56TD 99 hp 73 kW 2.5 L Diesel	AWD / 4WD	Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
MITSUBISHI	SPACE D0V/W N3W N4W	1.8 TD 2.0 TD D09V D09W N35W N38W	1986/06 - 1998/10	4D65T 75 hp 55 kW 1.8 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	MPV / Van / Minivan
MITSUBISHI	SPACE RUNNER N1W N2W	2.0 TD N18W	1992/10 - 1999/08	4D68T 82 hp 60 kW 2 L Diesel	Front wheel	MPV / Van / Minivan
MITSUBISHI	TRITON K3T K2T K1T K0T ME MF MG MH MJ	2.5 D 2.5 D 4WD 2.5 TD 4WD K14T K24T K34T	1986/11 - 1996/10	4D56(8V) 70 hp 51 kW 2.5 L Diesel 4D56T 87 hp 64 kW 2.5 L Diesel	AWD / 4WD Rear wheel	Pickup truck / Pickup
PROTON	PERSONA C9S	2 0 D 2 0 TD 420 GLS D 420 TD	1996/05 -	4D68 65 hp 48 kW 2 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	Sedan / Saloon
PROTON	PERSONA 400 C9C C9S C9S	2 0 D 2 0 TD 420 D 420 GLS D 420 TD	1996/05 -	4D68 65 hp 48 kW 2 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
PROTON	WIRA C9C C9S C9S	2 0 D 2 0 TD 420 D 420 GLS D 420 TD	1996/05 -	4D68 65 hp 48 kW 2 L Diesel 4D68T 82 hp 60 kW 2 L Diesel	Front wheel	Hatchback / Sportback / Sport hatch Sedan / Saloon
