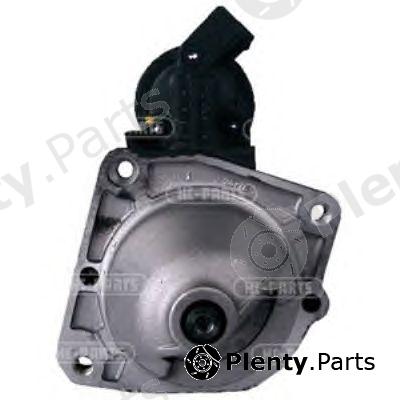

HC-Cargo CS1198 Starter

HC-Cargo CS1198 Starter

Manufacturer Part Number: CS1198
Alternative HC-Cargo part number(s): F032CS1198

Сharacteristics:

Voltage [V]: 12
Rated Power [kW]: 2,3
Rotation Direction: Clockwise rotation
Flange Ø [mm]: 81,5
Number of Teeth: 9
Number of mounting bores: 3
Pinion Rest Position [mm]: 23
Gear Reduction

Product Details

Brand	HC-Cargo
HC-Cargo article (MPN)	CS1198 Alternative HC-Cargo part number(s): F032CS1198
Vehicle subsystem	Starter System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA, IVECO vehicles

OE manufacturer	OEM reference numbers
CITROEN / PEUGEOT	5802Z0, 5802Z3
FIAT / LANCIA / ALFA	1329201080, 46758240
IVECO	8029647

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for HC-Cargo CS1198 Starter offered by AES, AS-PL, BOSCH, DELCO REMY, DEXEL, DRI, ELSTOCK, ERA, FARCOM, FRIESEN, GKN-SPIDAN, HELLA, HERTH+BUSS ELPARTS, LETRIKA, LUCAS ELECTRICAL, MAGNETI MARELLI, MAXGEAR, MESSMER, PIM, POWER MAX, UNIPOINT, VALEO, WAI manufacturers

Manufacturer	Reference numbers
AES	IS1269, 13130020
AS-PL	S0089
BOSCH	F032CS1198, 0001223013, 0986018960
DELCO REMY	DRS8960, DRS8960N
DEXEL	XST1248
DRI	318.079.092
ELSTOCK	25-3106
ERA	220033
FARCOM	104718
FRIESEN	8018960
GKN-SPIDAN	4655
HELLA	8EA737853-001
HERTH+BUSS ELPARTS	42018960
LETRIKA	IS1269, 11.131.476, AZE6513
LUCAS ELECTRICAL	LRS01592, LES0343
MAGNETI MARELLI	943253266010, 063522230130, 944280189600
MAXGEAR	550072R, 550072
MESSMER	220033
PIM	60750480
POWER MAX	8213011
UNIPOINT	STR-2358
VALEO	726920, 458486
WAI	2-2970-BO, 2-2568-BO, 33222N

Vehicle fitment / HC-Cargo CS1198 Starter compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, etc. See all vehicles this product (HC-Cargo CS1198) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
CITROËN	JUMPER 230 230L 230P 244 244 Z	2.8 HDi 2.8 HDi 4x4	2000/09 -	8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 126 hp 93 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel F28TDCR 128 hp 94 kW 2.8 L Diesel	AWD / 4WD Front wheel Front wheel AWD / 4WD	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
CITROËN	RELAY 230 230L 230P 244 244 Z	2.8 HDi 2.8 HDi 4x4	2000/09 -	8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 126 hp 93 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel F28TDCR 128 hp 94 kW 2.8 L Diesel	AWD / 4WD Front wheel Front wheel AWD / 4WD	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
FIAT	DUCATO 230 230L 244 244 Z	2.3 JTD 2.5 TDI 2.8 D 2.8 D 4x4 2.8 iDTD 4x4 2.8 JTD 2.8 JTD 4x4 2.8 JTD Power 2.8 TD 4x4 2.8 TDI 2.8 TDI 4x4	1994/03 -	8140.43 122 hp 90 kW 2.8 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S 128 hp 94 kW 2.8 L Diesel 8140.47 116 hp 85 kW 2.5 L Diesel 8140.63 87 hp 64 kW 2.8 L Diesel F1AE0481C 110 hp 81 kW 2.3 L Diesel	AWD / 4WD Front wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
PEUGEOT	BOXER 230L 230P 244 244 Z ZCT	2.8 HDi 2.8 HDI 2.8 HDi 4x4	2000/10 -	8140.43N 145 hp 107 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43N 146 hp 107 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel 8140.43S(F28DTCR) 126 hp 93 kW 2.8 L Diesel 8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel	AWD / 4WD Front wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
