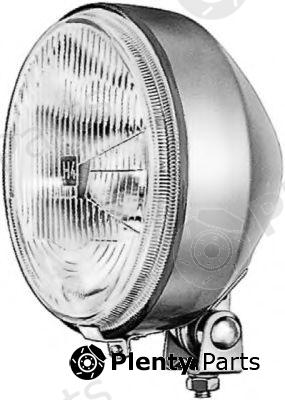

HELLA 1A7003099-011 (1A7003099011) Headlight

HELLA 1A7003099-011 (1A7003099011) Headlight

Manufacturer Part Number: 1A7003099-011 (1A7003099011)
Alternative HELLA part number(s): 012119, E124417

• Mounting Type: mounting
• Mounting Type: Bracket
• Bulb Type: H4
• Bulb Type: T4W
• Rated Voltage [V]: 12
• Rated Voltage [V]: 24

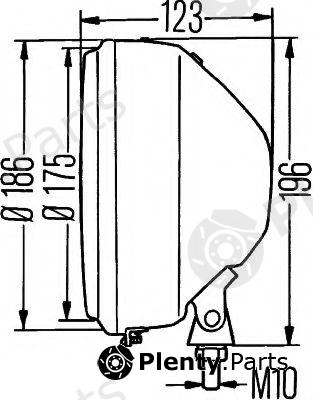

• Height [mm]: 196
• Depth [mm]: 123
• Number of light functions: 3
• Manufacturer Restriction: Ref. 25
• Overall Height [mm]: 196
• Supplementary Article/Info 2: without bulbs
• Fitting Position: Left
• Fitting Position: Right
• Illuminated Area [mm]: 175
• Material: Steel
• Diameter [mm]: 186
• Shape: Round
• Housing Colour: Silver
• Light Function: with low beam
• Light Function: with high beam
• Light Function: with position light
• Light Design: Halogen
• Left-hand / Right-hand Traffic: for right-hand traffic
• Surface: Painted
• Inspection Tag: E1 24417
• Protection Type (IP Code): IP5K4K
• With H4 main light. Silver-coloured housing. Universal bracket with M10 fixing screw. Additional attachment possibility with U-bracket 9XD 130 261-001. Type of protection: IP5K4K. Light aperture: 175 mm dia. H4 external-fitting headlamp without side light
• Only for spare parts requirement
