HELLA 1AB007145-007 (1AB007145007) Headlight

HELLA 1AB007145-007 (1AB007145007) Headlight

Manufacturer Part Number: 1AB007145-007 (1AB007145007)
Alternative HELLA part number(s): 089401, E144439

• Mounting Type: mounting
• Bulb Type: H4
• Bulb Type: T4W
• Rated Voltage [V]: 12

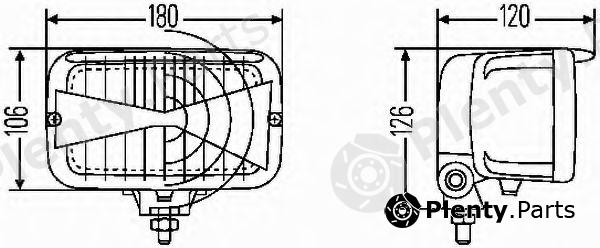

• Height [mm]: 106
• Depth [mm]: 120
• Number of light functions: 3
• Manufacturer Restriction: Ref. 10
• Overall Height [mm]: 126
• Supplementary Article/Info 2: without bulbs
• Fitting Position: Left
• Fitting Position: Right
• Colour: Black
• Housing Type: Synthetic Material Housing
• Illuminated Area [mm]: 148 x 84
• Quantity: 36
• Quantity Unit: Packing Unit
• Frame Colour: Black
• Frame Material: Plastic
• Diffusing Lens Material: Glass
• Width [mm]: 180
• Fastening Type: Suspended
• Fastening Type: Vertical
• Housing Colour: Black
• Light Function: with low beam
• Light Function: with high beam
• Light Function: with position light
• Light Design: Halogen
• Left-hand / Right-hand Traffic: for right-hand traffic
• Inspection Tag: E1 44439
• With H4 main light and side light. Black plastic housing and lens-retaining rim. Universal bracket with M10 fixing screw. Additional attachment possibility with U-bracket 9XD 130 261-001. For upright or pendant mounting. Light aperture: 148 x 84 mm. H4 external-fitting headlamp
