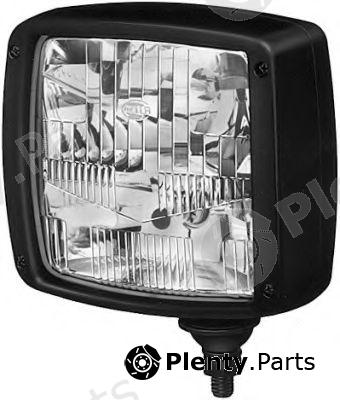

HELLA 1EA996127-001 (1EA996127001) Headlight

HELLA 1EA996127-001 (1EA996127001) Headlight

Manufacturer Part Number: 1EA996127-001 (1EA996127001)
Alternative HELLA part number(s): E49471, Modul120

• Mounting Type: AMP Coupling
• Mounting Type: mounting
• Mounting Type: Bracket
• Bulb Type: H7/H3
• Bulb Type: T4W
• Rated Voltage [V]: 12

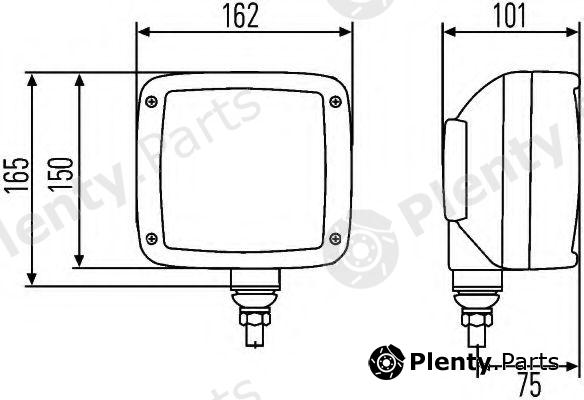

• Height [mm]: 165
• Depth [mm]: 101
• Number of light functions: 3
• Manufacturer Restriction: Ref. 12,5
• Overall Height [mm]: 162
• Supplementary Article/Info 2: with bulbs
• Fitting Position: Left
• Fitting Position: Right
• Fastening Type: Vertical
• Illuminated Area [mm]: 120 x 120
• Material: Plastic
• Number of Poles: 4
• Frame Colour: Black
• Frame Material: Plastic
• Width [mm]: 162
• Housing Colour: Black
• Light Function: with low beam
• Light Function: with high beam
• Light Function: with position light
• Light Design: Halogen
• Left-hand / Right-hand Traffic: for right-hand traffic
• Inspection Tag: E4 9471
• Protection Type (IP Code): IPX9K
• With H7 dipped-beam light, H3 driving-beam light and side light. Black housing. Black glass-fibre reinforced lens-retaining rim with extending edge to protect lens. Universal bracket with M12 fixing screws. Splash-proof in accordance with IPX9K. Light aperture: 120 x 120 mm. H7/H3 external-fitting headlamp with AMP 4-pole plug connector and 12V bulbs
• Only for spare parts requirement
