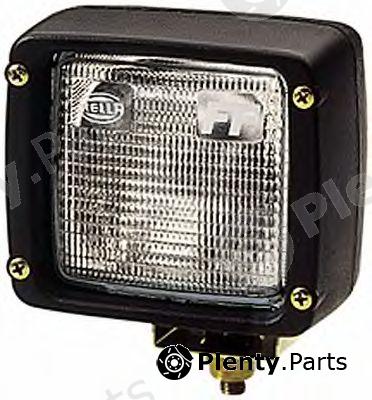

HELLA 1GA007506-001 (1GA007506001) Worklight

HELLA 1GA007506-001 (1GA007506001) Worklight

Manufacturer Part Number: 1GA007506-001 (1GA007506001)
Alternative HELLA part number(s): 015327

• Mounting Type: AMP Coupling
• Mounting Type: mounting
• Rated Voltage [V]: 12
• Rated Voltage [V]: 24

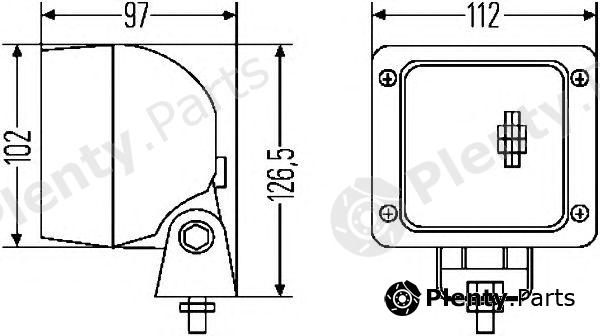

• Depth [mm]: 97
• Overall Height [mm]: 126,5
• Supplementary Article/Info 2: with cap
• Supplementary Article/Info 2: without bulbs
• Fastening Type: Suspended
• Fastening Type: Vertical
• Housing Type: Synthetic Material Housing
• Bulb Type: H3
• Illuminated Area [mm]: 83 x 83
• Light Distribution: Surface Lighting

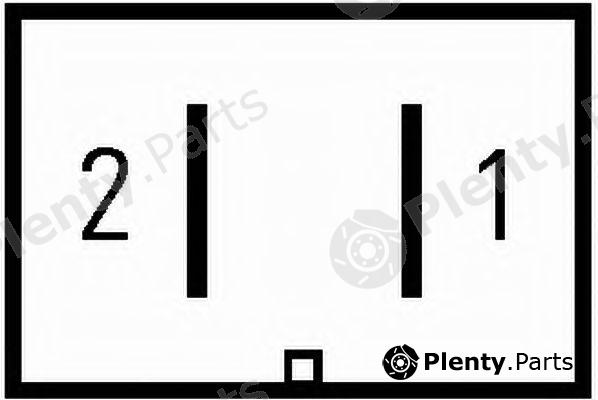

• Number of Poles: 2
• Protection Type (IP Code): IP6K4K
• Protection Type (IP Code): IPX9K
• Plug Type ID: AMP
• Diffusing Lens Type: Hardened diffusing lens
• Diffusing Lens Material: Glass
• Width [mm]: 112
• Housing Colour: Black
• Cable Length [mm]: 2000
• Light Design: FF
• Light Design: Halogen
• Reach [m]: 30
• Vibration: without vibration damper
• Plug Type: Blade Terminal Sleeve
• Lens pattern for extremely wide, intense close-range illumination. Recommended angle of inclination: 15° - 25°. Black fibre-glass reinforced plastic housing with extending edge to protect lens. With M10 fixing screw for upright or pendant mounting. Without vibration damping. Pivote range: vertical 130°. Suitable U-bracket for four-point mounting 9XD 130 261-001. Light aperture: 83 x 83 mm. With AMP plug connector and cap for 6.3 x 0.8 mm flat plug sleeves. Type of protection: IP6K4K and IPX9K.
