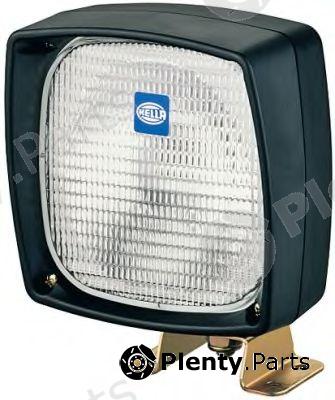

HELLA 1GA998532-011 (1GA998532011) Worklight

HELLA 1GA998532-011 (1GA998532011) Worklight

Manufacturer Part Number: 1GA998532-011 (1GA998532011)
Alternative HELLA part number(s): 015351

• Mounting Type: AMP Coupling
• Mounting Type: mounting
• Mounting Type: Plug Connection
• Rated Voltage [V]: 12
• Rated Voltage [V]: 24

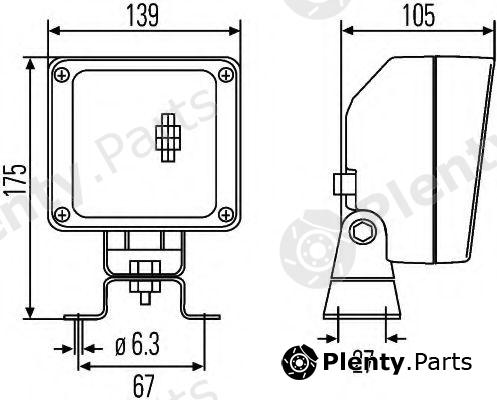

• Depth [mm]: 105
• Mounting bores distance [mm]: 67
• Overall Height [mm]: 175
• Supplementary Article/Info 2: without bulbs
• Fastening Type: Suspended
• Fastening Type: Vertical
• Supplementary Article/Supplementary Info: with holder
• Housing Type: Synthetic Material Housing
• Bulb Type: H3
• Illuminated Area [mm]: 123 x 123
• Light Distribution: Surface Lighting
• Number of Poles: 2
• Protection Type (IP Code): IP5K4K
• Plug Type ID: AMP
• Width [mm]: 139
• Housing Colour: Black
• Cable Length [mm]: 2000
• Light Design: FF
• Light Design: Halogen
• Reach [m]: 30
• Vibration: with vibration damper

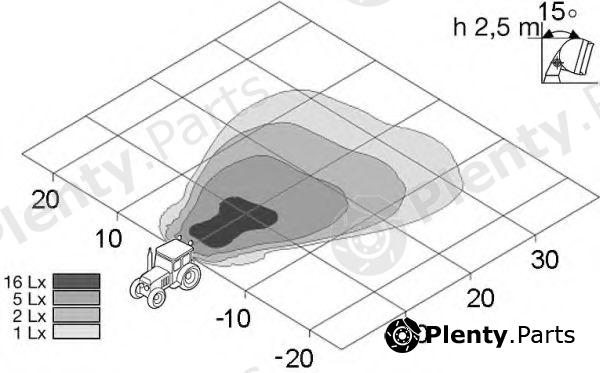

• Lens pattern for wide, intensive close-range illumination. Recommended angle of inclination: 15° - 25°. For upright, pendant or side mounting. Side possible with square reflector insert. Black plastic housing with extending edge to protect lens. With vibration damping for extreme impact stress. With 2-pole AMP plug connector. Mounting bracket for four-point mounting. Height of mounting bracket: 22 mm. Distance between screws: 27 mm or 67 mm. Type of protection: IP5K4K. Light aperture: 123 x 123 mm. FF-H3 work lamp
