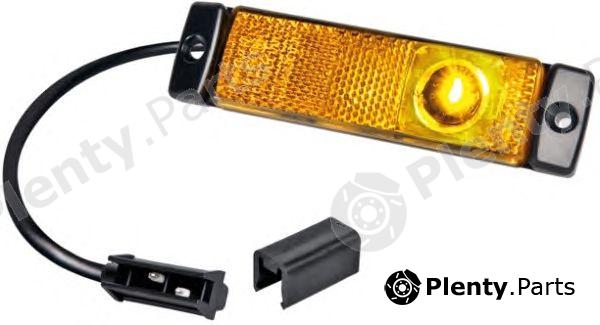

HELLA 2PS008645-611 (2PS008645611) Side Marker Light

HELLA 2PS008645-611 (2PS008645611) Side Marker Light

Manufacturer Part Number: 2PS008645-611 (2PS008645611)
Alternative HELLA part number(s): E11395, E11396

• Number of LEDs: 1
• Number of light functions: 2
• Fitting Position: Left
• Fitting Position: Right
• Cable Length [mm]: 300
• Rated Voltage [V]: 24
• Rated Current [A]: 0,05
• Width [mm]: 130
• Height [mm]: 32
• Mounting Type: mounting
• Fastening Type: for horizontal fastening
• Housing Colour: Black
• LED Colour: Yellow
• Power Consumption [W]: 1,2
• Light Function: with reflector
• Light Function: with side marker light (LED)
• Light Design: LED
• Lens Colour: Yellow
• Inspection Tag: E1 1395
• Inspection Tag: E1 1396
• Regarding single or double function lamps with LEDs without flasher function In connection with these low powers, which are very different from bulb versions, there can be problems during operation on various traction vehicles because further lighting functions are detected by some traction vehicles. This is a vehicle comfort function which is not required by legislation and does not release drivers from their obligation to see for themselves that the lighting equipment is working. Here, too, faulty diagnoses can be a result of the lower power levels involved (instrument panel in the driver cab indicates a bulb failure although the function is working). The functional ability of these light failure checks can only be established by the vehicle manufacturer. Operation of the light with alternating current or pulsed direct current is not permitted! The individual light functions may only be operated with a vehicle fuse of max. 3A. In the case of onboard current limitation with the values specified above by the onboard control unit an additional fuse for the lamp is not required.
