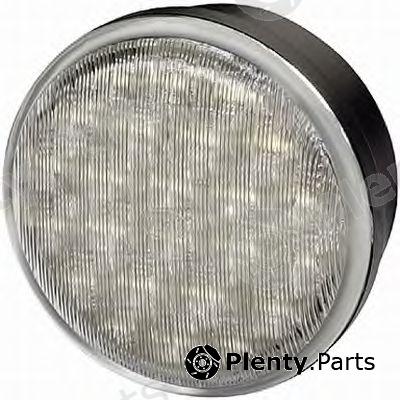

HELLA 2ZR959010-501 (2ZR959010501) Reverse Light

HELLA 2ZR959010-501 (2ZR959010501) Reverse Light

Manufacturer Part Number: 2ZR959010-501 (2ZR959010501)
Alternative HELLA part number(s): E411391

• Mounting Type: Fitting
• Number of LEDs: 12
• Number of light functions: 1
• Cable Length [mm]: 2500
• Light Design: LED
• Voltage from [V]: 9
• Voltage to [V]: 33

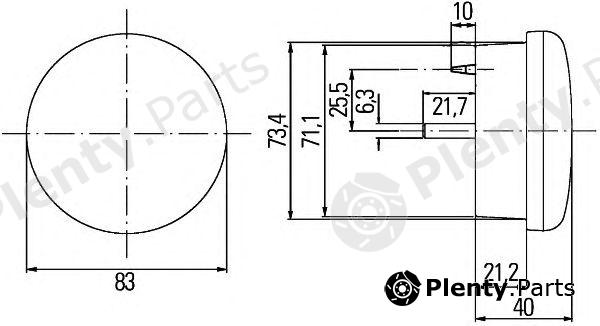

• Height [mm]: 40
• Diameter [mm]: 83
• Light Function: with reverse light (LED)
• Inspection Tag: E4 11391
• Inspection Tag: ECE/EMC
• Regarding single or double function lamps with LEDs without flasher function In connection with these low powers, which are very different from bulb versions, there can be problems during operation on various traction vehicles because further lighting functions are detected by some traction vehicles. This is a vehicle comfort function which is not required by legislation and does not release drivers from their obligation to see for themselves that the lighting equipment is working. Here, too, faulty diagnoses can be a result of the lower power levels involved (instrument panel in the driver cab indicates a bulb failure although the function is working). The functional ability of these light failure checks can only be established by the vehicle manufacturer. Operation of the light with alternating current or pulsed direct current is not permitted! The individual light functions may only be operated with a vehicle fuse of max. 3A. In the case of onboard current limitation with the values specified above by the onboard control unit an additional fuse for the lamp is not required.
