HELLA 8DB355017-181 (8DB355017181) Brake Pad Set, disc brake

HELLA part 8DB355017-181 (8DB355017181) Brake Pad Set, disc brake

HELLA 8DB355017-181 (8DB355017181) Brake Pad Set, disc brake

by HELLA

Manufacturer Part Number: 8DB355017-181 (8DB355017181)
Alternative HELLA part number(s): 23314, 7559D680, T3112

Сharacteristics:

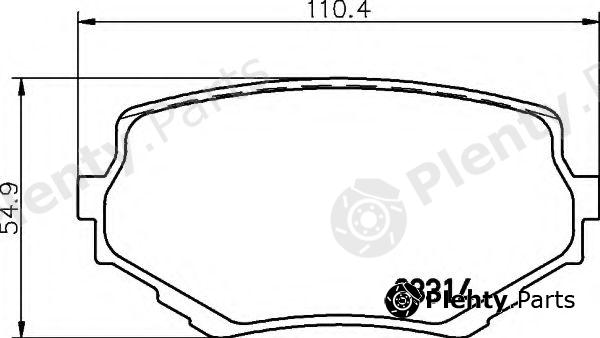

  • Width [mm]: 110
  • Height [mm]: 54,9
  • Thickness [mm]: 14,5
  • Wear Warning Contact: with acoustic wear warning
  • Number of wear indicators [per axle]: 2
  • WVA Number: 23314
  • Brake System: Sumitomo
  • Technical Information Number: T3112
  • Part number of recommended accessories: 8DZ 355 203-161

Product Details

BrandHELLA
HELLA article (MPN)8DB355017-181 (8DB355017181) Alternative HELLA part number(s): 23314, 7559D680, T3112
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for SUZUKI vehicles

OE manufacturerOEM reference numbers
SUZUKI5520065D00, 5520065D01, 5520065D10, 5520065D11, 5520065D20, 5520065D21, 5520065D30, 5520065D31, 5520077, 5520077E00, 5520077E00000, 5520077E01, 5520077E01000

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for HELLA 8DB355017-181 (8DB355017181) Brake Pad Set, disc brake offered by A.B.S., AKEBONO, APEC braking, ASHUKI, ATE, BENDIX, BENDIX-AU, BLUE PRINT, BOSCH, Brake ENGINEERING, BREMBO, COBREQ, COMLINE, DELPHI, Dr!ve+, FENOX, FERODO, FTE, GALFER, GIRLING, HELLA PAGID, HERTH+BUSS JAKOPARTS, ICER, JAPANPARTS, JURID, MAGNETI MARELLI, MAPCO, METZGER, MGA, MINTEX, MK Kashiyama, NIPPARTS, NISSHINBO, NK, NPS, OPTIMAL, PAGID, PROCODIS FRANCE, QUINTON HAZELL, REMSA, ROADHOUSE, TEXTAR, TRW, VALEO, WAGNER LOCKHEED manufacturers

ManufacturerReference numbers
A.B.S.36965
AKEBONOAN451K
APEC brakingPAD903
ASHUKIK01216A, K01217A, K01217
ATE13046058572, 605857
BENDIXDB1312, 572420B
BENDIX-AUDB1312
BLUE PRINTADK84219, ADK84222
BOSCH0986424669, BP385, 0986424251, F03B150043, F03B150021
Brake ENGINEERINGPA1399
BREMBOP79009
COBREQN1303
COMLINECBP3475, ADB31777, ADB3475
DELPHILP1015
Dr!ve+DP1010100073, DP1010100806
FENOXBP43263
FERODOFSL1565, FDB1565
FTEBL1643A2
GALFERB1G10212102
GIRLING6131329
HELLA PAGID355017181
HERTH+BUSS JAKOPARTSJ3608017
ICER181319
JAPANPARTSPA893AF
JURID572420J
MAGNETI MARELLI363700203112, 600000099370, T3112MM
MAPCO6763
METZGER1170415, 059402
MGA463
MINTEXMDB1750
MK KashiyamaD9024M
NIPPARTSJ3608017
NISSHINBOPF9301, PF9382
NK225214
NPSS360I16
OPTIMAL10079
PAGIDT3112
PROCODIS FRANCEPF1360
QUINTON HAZELLBP1178, 7051
REMSA059402
ROADHOUSE259402
TEXTAR2331401, TX0534
TRWGDB3132
VALEO598534
WAGNER LOCKHEEDWBP23314A

Vehicle fitment / HELLA 8DB355017-181 (8DB355017181) Brake Pad Set, disc brake compatibility

This product fits the following models: SUZUKI ESCUDO, SUZUKI GRAND ESCUDO I, SUZUKI GRAND VITARA, SUZUKI GRAND VITARA I, SUZUKI GRAND VITARA XL-7 I, SUZUKI SIDEKICK, SUZUKI VITARA, SUZUKI VITARA CABRIO, etc. See all vehicles this product (HELLA 8DB355017-181 (8DB355017181)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
SUZUKIESCUDO
ET
TA
1.6
1.6 i 16V
2.0 16V
2.0 TD
2.0 TD Intercooler
2.0 V6 24V
2.5 V6 24V
TD Intercooler
V6 24V

ET
ET
SV620
ET
TA02
ET
TA02
SE416
ET
TA51
ET
TA51
SV420
FT
TA
TA01
TA
TA01
SE416
1988/07 - 1999/03G16A(8V) 73 hp 54 kW 1.6 L Petrol
G16B 95 hp 70 kW 1.6 L Petrol
G16A(8V) 80 hp 59 kW 1.6 L Petrol
G16A(8V) 82 hp 60 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
H20A 136 hp 100 kW 2 L Petrol
H25A 160 hp 118 kW 2.5 L Petrol
J20A 132 hp 97 kW 2 L Petrol
RF 71 hp 52 kW 2 L Diesel
RF 87 hp 64 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
SUZUKIGRAND ESCUDO I
FT
1.6 4x4
2.0
2.0 4x4
2.0 HDI 110
2.0 HDI 110 16V
2.0 TD
2.0 TD 4x4
2.5 V6 24V
2.5 V6 24V 4x4
2.7
2.7 4x4

FT
FT
TD62
SQ625
SQ625
TX92
JA627
1998/03 - 2005/09G16B 94 hp 69 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
G16B 99 hp 73 kW 1.6 L Petrol
H25A 144 hp 106 kW 2.5 L Petrol
H25A 158 hp 116 kW 2.5 L Petrol
H27A 173 hp 127 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 140 hp 103 kW 2 L Petrol
RF 87 hp 64 kW 2 L Diesel
RFM 86 hp 63 kW 2 L Diesel
RHW 109 hp 80 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND VITARA
INC XL-7 I FT
1.6 4x4
2.0
2.0 4x4
2.0 HDI 110
2.0 HDI 110 16V
2.0 TD
2.0 TD 4x4
2.5 V6 24V
2.5 V6 24V 4x4
2.7
2.7 4x4

FT
FT
TD62
SQ625
SQ625
TX92
JA627
1998/03 - 2005/09G16B 94 hp 69 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
G16B 99 hp 73 kW 1.6 L Petrol
H25A 144 hp 106 kW 2.5 L Petrol
H25A 158 hp 116 kW 2.5 L Petrol
H27A 173 hp 127 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 140 hp 103 kW 2 L Petrol
RF 87 hp 64 kW 2 L Diesel
RFM 86 hp 63 kW 2 L Diesel
RHW 109 hp 80 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND VITARA I
FT
GT
1.6 4x4
2.0
2.0 4x4
2.0 HDI 110
2.0 HDI 110 16V
2.0 TD
2.0 TD 4x4
2.5 V6 24V
2.5 V6 24V 4x4
2.7
2.7 4x4

FT
FT
TD62
SQ625
SQ625
TX92
JA627
1998/03 - 2005/09G16B 94 hp 69 kW 1.6 L Petrol
G16B 94 hp 69 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
G16B 99 hp 73 kW 1.6 L Petrol
H25A 144 hp 106 kW 2.5 L Petrol
H25A 158 hp 116 kW 2.5 L Petrol
H27A 173 hp 127 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 140 hp 103 kW 2 L Petrol
RF 87 hp 64 kW 2 L Diesel
RFM 86 hp 63 kW 2 L Diesel
RHW 109 hp 80 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
AWD / 4WD
Convertible / cabrio
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND VITARA XL-7 I
FT
1.6 4x4
2.0
2.0 4x4
2.0 HDI 110
2.0 HDI 110 16V
2.0 TD
2.0 TD 4x4
2.5 V6 24V
2.5 V6 24V 4x4
2.7
2.7 4x4

FT
FT
TD62
SQ625
SQ625
TX92
JA627
1998/03 - 2005/09G16B 94 hp 69 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
G16B 99 hp 73 kW 1.6 L Petrol
H25A 144 hp 106 kW 2.5 L Petrol
H25A 158 hp 116 kW 2.5 L Petrol
H27A 173 hp 127 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
H27A 184 hp 135 kW 2.7 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 128 hp 94 kW 2 L Petrol
J20A 140 hp 103 kW 2 L Petrol
RF 87 hp 64 kW 2 L Diesel
RFM 86 hp 63 kW 2 L Diesel
RHW 109 hp 80 kW 2 L Diesel
RHZ 109 hp 80 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKISIDEKICK
ET
TA
1.6
1.6 i 16V
2.0 16V
2.0 TD
2.0 TD Intercooler
2.0 V6 24V
2.5 V6 24V
TD Intercooler
V6 24V

ET
ET
SV620
ET
TA02
ET
TA02
SE416
ET
TA51
ET
TA51
SV420
FT
TA
TA01
TA
TA01
SE416
1988/07 - 1998/12G16A(8V) 73 hp 54 kW 1.6 L Petrol
G16B 95 hp 70 kW 1.6 L Petrol
G16A(8V) 80 hp 59 kW 1.6 L Petrol
G16A(8V) 82 hp 60 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
H20A 136 hp 100 kW 2 L Petrol
H25A 160 hp 118 kW 2.5 L Petrol
J20A 132 hp 97 kW 2 L Petrol
RF 71 hp 52 kW 2 L Diesel
RF 87 hp 64 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIVITARA
ET
ET
TA
1.6
1.6 i 16V
2.0 16V
2.0 TD
2.0 TD Intercooler
2.0 V6 24V
2.5 V6 24V
HDI
TD Intercooler
V6 24V

ET
ET
SV620
ET
TA02
ET
TA02
SE416
ET
TA51
ET
TA51
SV420
FT
TA
TA01
TA
TA01
SE416
1988/07 - 2005/12G16A(8V) 73 hp 54 kW 1.6 L Petrol
G16B 95 hp 70 kW 1.6 L Petrol
G16A(8V) 80 hp 59 kW 1.6 L Petrol
G16A(8V) 82 hp 60 kW 1.6 L Petrol
G16B 97 hp 71 kW 1.6 L Petrol
H20A 136 hp 100 kW 2 L Petrol
H25A 160 hp 118 kW 2.5 L Petrol
J20A 132 hp 97 kW 2 L Petrol
RF 71 hp 52 kW 2 L Diesel
RF 87 hp 64 kW 2 L Diesel
RHP(DW10TD) 87 hp 64 kW 2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIVITARA CABRIO
ET
ET
TA
2.0 16V
2.0 HDI
1996/12 - 2005/12J20A 132 hp 97 kW 2 L Petrol
RHP(DW10TD) 87 hp 64 kW 2 L Diesel
AWD / 4WD
SUV hardtop / SUV softtop / SUV Sport / SUV cabrio
