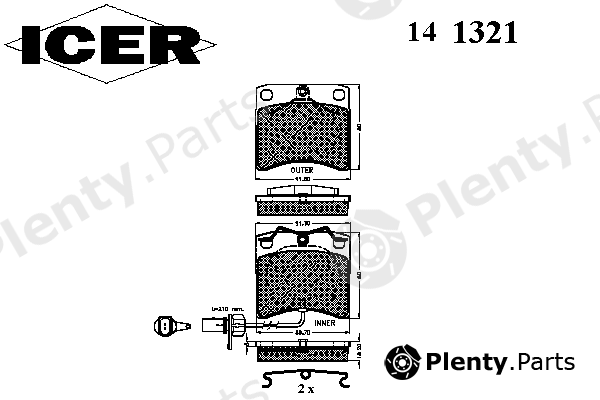

ICER 141321 Brake Pad Set, disc brake
ICER 141321 Brake Pad Set, disc brake
by ICERManufacturer Part Number: 141321
Alternative ICER part number(s): 23175, D703-7933, 20651, 21634, 21635, 23176, D703-7933
- Brake Type: Disc Brake
- Length [mm]: 89,7
- Height [mm]: 80
- Thickness [mm]: 18,2
- Quality: 639
- Weight [kg]: 1.718
- Axle Version: Front
- Technical Information Number: 141321
- Brake System: Lucas - Girling
- Inspection Tag: E1 90R-01217/316
- Wear Warning Contact: incl. wear warning contact
- Length 2 [mm]: 91,5
- Height 2 [mm]: 80,1
Product Details
| Brand | ICER |
| ICER article (MPN) | 141321 Alternative ICER part number(s): 23175, D703-7933, 20651, 21634, 21635, 23176, D703-7933 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 7D0698151C, 7D0698151H |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ICER 141321 Brake Pad Set, disc brake offered by A.B.S., ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, fri.tech., FTE, GALFER, GIRLING, GKN-SPIDAN, HELLA, HELLA PAGID, HP, ICER, JURATEK, JURID, KAGER, KAWE, KRAFT, LÖBRO, LUCAS DIESEL, LUCAS ELECTRICAL, LUCAS ENGINE DRIVE, LUCAS TVS, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MGA, MINTEX, MOTRIO, NECTO, NK, OPTIMAL, PAGID, PEX, PROCODIS FRANCE, PROTECHNIC, QH International, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, ROULUNDS RUBBER, SACHS, sbs, SIMER, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VILLAR, WEEN, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 37144 |
| ATE | 13.0460-2839.2, 602839 |
| AUTOMEGA | 3169801517D0C, 3169801517D0H |
| BENDIX | 573046, 573046B |
| BORG & BECK | BBP1702 |
| BOSCH | 0986494041, 0986424673 |
| Brake ENGINEERING | PA1567 |
| BREMBO | P85048 |
| BREMSI | BP2869 |
| CIFAM | 8221632 |
| DELPHI | LP1535 |
| DENCKERMANN | B110799 |
| E.T.F. | 120869 |
| FEBI BILSTEIN | 16463 |
| FENOX | BP43107 |
| FERODO | FDB1492, FVR1492 |
| FIRST LINE | 3331 |
| fri.tech. | 1662 |
| FTE | BL1118A2 |
| GALFER | B1G10205332 |
| GIRLING | 6113681 |
| GKN-SPIDAN | 32241 |
| HELLA | 8DB355018521 |
| HELLA PAGID | T5129, 8DB355018521 |
| HP | 7361, HP7361 |
| ICER | 141321 |
| JURATEK | JCP1439 |
| JURID | 573046, 573046JAS |
| KAGER | 351066 |
| KAWE | 038511 |
| KRAFT | 6000610 |
| LÖBRO | 32241 |
| LUCAS DIESEL | GDB1368 |
| LUCAS ELECTRICAL | GDB1368 |
| LUCAS ENGINE DRIVE | GDB1368 |
| LUCAS TVS | GDB1368 |
| MAGNETI MARELLI | 363702161092, 363710205129, 430216171092, BP1092, 363916060416 |
| MAPCO | 63831 |
| METELLI | 2201632 |
| METZGER | 1170664, 038511 |
| MGA | MGA588, 588 |
| MINTEX | MDB2095 |
| MOTRIO | 8671019137 |
| NECTO | FD6941V |
| NK | 224748 |
| OPTIMAL | 10482 |
| PAGID | T5129 |
| PEX | 7.532 |
| PROCODIS FRANCE | PF10641 |
| PROTECHNIC | PRP0503 |
| QH International | HP7361 |
| QUINTON HAZELL | BP1274, MBP1274 |
| RAICAM | RA04302 |
| R BRAKE | RB1321 |
| REMSA | 2385.11, 385.11, 038511 |
| ROADHOUSE | 2385.11 |
| ROULUNDS RUBBER | 602081 |
| SACHS | 111_0746, 111_0746 |
| sbs | 1501224748 |
| SIMER | 561.2, 0561.2 |
| SWAG | 30916463 |
| TEXTAR | 2317618215T437, 2317602 |
| TRISCAN | 811029027 |
| TRUSTING | 1662 |
| TRW | GDB1368 |
| VAICO | V1082341, V108234 |
| VALEO | 598807 |
| VILLAR | 6260984 |
| WEEN | 1511820 |
| WOKING | P285311 |
| ZIMMERMANN | 231761801 |
Vehicle fitment / ICER 141321 Brake Pad Set, disc brake compatibility
This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (ICER 141321) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR6 | 1990/07 - 2003/04 | 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR6 | 1990/07 - 2003/04 | 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.8 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol PD 67 hp 49 kW 1.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
