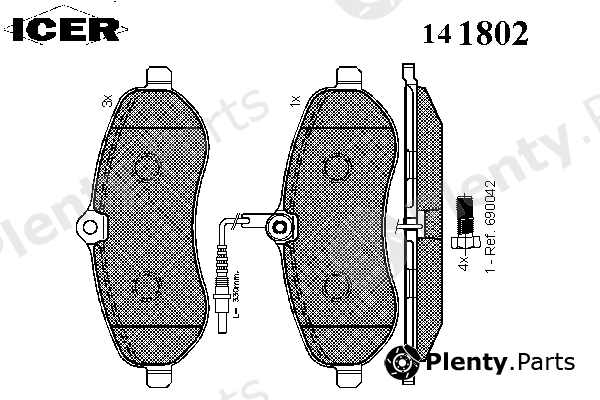

ICER 141802 Brake Pad Set, disc brake

ICER part 141802 Brake Pad Set, disc brake

ICER 141802 Brake Pad Set, disc brake

by ICER

Manufacturer Part Number: 141802
Alternative ICER part number(s): 24595, 24596, 24608

Сharacteristics:
  • Brake Type: Disc Brake
  • Length [mm]: 162,1
  • Height [mm]: 66,9
  • Thickness [mm]: 18,9
  • Quality: 300
  • Weight [kg]: 2.125
  • Axle Version: Front
  • Technical Information Number: 141802
  • Brake System: Trw
  • Inspection Tag: E9 90R-01111/2199
  • Wear Warning Contact: incl. wear warning contact

Product Details

BrandICER
ICER article (MPN)141802 Alternative ICER part number(s): 24595, 24596, 24608
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4253.66, 4253.64, 4253.63, 4253.65, 1611839880
FIAT / LANCIA / ALFA9467548988, 9467548888, 77364512, 77364511, 9467548887, 9467548987

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ICER 141802 Brake Pad Set, disc brake offered by A.B.S., ATE, BARUM, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, CIFAM, DELPHI, DENCKERMANN, Dr!ve+, DURON, E.T.F., EUROBRAKE, FEBI BILSTEIN, FERODO, FI.BA, FOMAR, fri.tech., FTE, GALFER, GIRLING, HELLA, HELLA PAGID, HP, JURID, KAGER, KAMOKA, KAWE, KEY PARTS, KRAFT, LUCAS DIESEL, LUCAS ELECTRICAL, LUCAS ENGINE DRIVE, LUCAS TVS, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTRIO, NECTO, NIBK, NK, OPTIMAL, PAGID, PROTECHNIC, QH International, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, sbs, SCT Germany, STARLINE, STOP, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WEEN, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.37589
ATE602738, 13.0460-2738.2
BARUMBA2329
BENDIX573280, 573280B
BLUE PRINTADT342207
BORG & BECKBBP2030
BOSCH0986TB3015, 0986494163, 0986494195
Brake ENGINEERINGPA1762
BREMBOP61096
BREMSIBP3283
CIFAM8227070
DELPHILP1995
DENCKERMANNB110950
Dr!ve+DP1010100743
DURONDBP341771
E.T.F.121283
EUROBRAKE5502221961
FEBI BILSTEIN16830
FERODOFVR1771, FDB1771, FSL1771
FI.BAFBP1415
FOMARFO931081
fri.tech.7230
FTEBL2063A4
GALFERB1G10209372
GIRLING6117191, 6117181
HELLA8DB355013411
HELLA PAGID8DB355013-411, T1708
HPHP7838, HP7848, HP7849, 7848, 7849
JURID573280J, 573280
KAGER351065
KAMOKAJQ1013542
KAWE129201
KEY PARTSKBP2030
KRAFT6005671
LUCAS DIESELGDB1718, GDB1719
LUCAS ELECTRICALGDB1719, GDB1718
LUCAS ENGINE DRIVEGDB1718, GDB1719
LUCAS TVSGDB1718, GDB1719
MAGNETI MARELLI363702161503, 363710201708, 363916060193
METELLI2207070
METZGER1170228, 129201
MEYLE0252459518W
MGAMGA878
MINTEXMDK0236, MDB2901
MOTRIO8671016713
NECTOFD7316V
NIBKPN0531W
NK221961
OPTIMAL12337
PAGID8DB355013-411, T1708
PROTECHNICPRP1229, PRP12293M
QH InternationalHP7849, HP7848, HP7838
QUINTON HAZELLBP1572, MBP1572
RAICAMRA09110
R BRAKERB1802
REMSA21292.01, 1292.01
ROADHOUSE21292.01
sbs1501221961
SCT GermanySP457PR
STARLINEBDS855P, BDS507
STOP573280S
SWAG62916830
TEXTAR2459518315, 2459502, 2459518325, 2459501
TRISCAN811010574
TRUSTING7230
TRWGDB1718, GDB1719
VAICOV420098
VALEO598899
VEMA839110
WAGNER LOCKHEEDWBP24595A
WEEN1512650
WOKINGP1392301
ZIMMERMANN24595.185.2, 245951851

Vehicle fitment / ICER 141802 Brake Pad Set, disc brake compatibility

This product fits the following models: CITROËN DISPATCH, CITROËN JUMPY, CITROËN SPACE, FIAT SCUDO, PEUGEOT , PEUGEOT EXPERT, PEUGEOT EXPERT TEPEE, TOYOTA PROACE, etc. See all vehicles this product (ICER 141802) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNDISPATCH
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 125
2.0 HDi 140
2.0 HDi 165
2.0 HDi 95
2.0 i
2007/01 - 128 hp 94 kW 2 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
CITROËNJUMPY

US
1.6 BlueHDi 115
1.6 BlueHDi 95
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 BlueHDi 120
2.0 BlueHDi 150
2.0 BlueHDi 180
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 125
2.0 HDi 140
2.0 HDi 165
2.0 HDi 95
2.0 i
2007/01 - 115 hp 85 kW 1.6 L Diesel
122 hp 90 kW 2 L Diesel
128 hp 94 kW 2 L Diesel
150 hp 110 kW 2 L Diesel
178 hp 130 kW 2 L Diesel
95 hp 70 kW 1.6 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
CITROËNSPACE
US
1.6 BlueHDi 115
1.6 BlueHDi 95
2.0 BlueHDi 150
2.0 BlueHDi 180
2016/04 - 115 hp 85 kW 1.6 L Diesel
150 hp 110 kW 2 L Diesel
178 hp 130 kW 2 L Diesel
95 hp 70 kW 1.6 L Diesel
Front wheel
MPV / Van / Minivan
FIATSCUDO
272
270
1.6 D Multijet
2.0 D Multijet
2007/01 - 9HU 90 hp 66 kW 1.6 L Diesel
DW10BTED4 136 hp 100 kW 2 L Diesel
RH02 163 hp 120 kW 2 L Diesel
RHH 163 hp 120 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
RHR 136 hp 100 kW 2 L Diesel
RH02 128 hp 94 kW 2 L Diesel
RH02 163 hp 120 kW 2 L Diesel
RHH 163 hp 120 kW 2 L Diesel
RHK 120 hp 88 kW 2 L Diesel
RHR 136 hp 100 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
MPV / Van / Minivan
With flatbed/undercarriage
PEUGEOT
US
1.6 BlueHDi 115
1.6 BlueHDi 95
2.0 BlueHDi 150
2.0 BlueHDi 180
2016/04 - 115 hp 85 kW 1.6 L Diesel
150 hp 110 kW 2 L Diesel
178 hp 130 kW 2 L Diesel
95 hp 70 kW 1.6 L Diesel
Front wheel
Passenger Van / Wagon / Minibus
PEUGEOTEXPERT

VF3A
VF3U
VF3X
1.6 HDi 90
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 16V
2.0 HDi 100
2.0 HDi 120
2.0 HDi 130
2.0 HDi 140
2.0 HDi 165
2007/01 - 98 hp 72 kW 2 L Diesel
9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
PEUGEOTEXPERT TEPEE
VF3V
1.6 HDi 90 16V
1.6 HDi 90 8V
2.0 16V
2.0 HDi 100
2.0 HDi 120
2.0 HDi 120 4x4
2.0 HDi 130
2.0 HDi 140
2.0 HDi 165
2007/01 - 9HH(DV6DUM) 90 hp 66 kW 1.6 L Diesel
9HM(DV6UC) 90 hp 66 kW 1.6 L Diesel
9HU(DV6UTED4) 90 hp 66 kW 1.6 L Diesel
AHY(DW10CE) 98 hp 72 kW 2 L Diesel
AHZ(DW10CD) 128 hp 94 kW 2 L Diesel
RFH(EW10A) 140 hp 103 kW 2 L Petrol
RFJ(EW10A) 140 hp 103 kW 2 L Petrol
RHH(DW10CTED4) 163 hp 120 kW 2 L Diesel
RHK(DW10UTED4) 120 hp 88 kW 2 L Diesel
RHR(DW10BTED4) 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
TOYOTAPROACE
1.6 D-4D
2.0 D-4D
2013/06 - 3WZ-TV 90 hp 66 kW 1.6 L Diesel
4WZ-FHV 163 hp 120 kW 2 L Diesel
4WZ-FTV 128 hp 94 kW 2 L Diesel
Front wheel
LCV / Van / Cargo / Small truck
