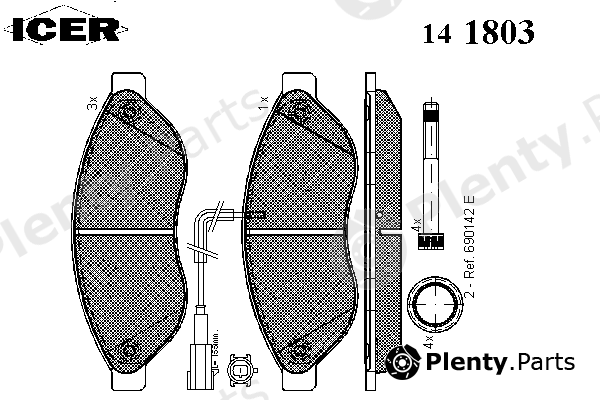

ICER 141803 Brake Pad Set, disc brake

ICER part 141803 Brake Pad Set, disc brake

ICER 141803 Brake Pad Set, disc brake

by ICER

Manufacturer Part Number: 141803
Alternative ICER part number(s): 24468, 24469, D1489-8689

Сharacteristics:
  • Brake Type: Disc Brake
  • Length [mm]: 168,9
  • Height [mm]: 61,7
  • Thickness [mm]: 19,2
  • Quality: 300
  • Weight [kg]: 2.365
  • Axle Version: Front
  • Technical Information Number: 141803
  • Brake System: Brembo
  • Inspection Tag: E9 90R-01111/1627
  • Wear Warning Contact: incl. wear warning contact

Product Details

BrandICER
ICER article (MPN)141803 Alternative ICER part number(s): 24468, 24469, D1489-8689
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4253.56, 4253.58, 4253.57, 1607878380, 1607878580, 4254.61, 4254.62, 4253.55
FIAT / LANCIA / ALFA77364160, 77366020, 77364014, 77366017, 77366018

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ICER 141803 Brake Pad Set, disc brake offered by A.B.S., ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, CASALS, CIFAM, COBREQ, DELPHI, DENCKERMANN, DITAS, Dr!ve+, E.T.F., EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GALFER, GIRLING, Good Will, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JURATEK, JURID, KAWE, KLAXCAR FRANCE, KRAFT, LUCAS DIESEL, LUCAS ELECTRICAL, LUCAS ENGINE DRIVE, LUCAS TVS, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTRIO, NECTO, NIBK, NK, OPTIMAL, PAGID, PROCODIS FRANCE, PROFIT, PROTECHNIC, QH International, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, ROULUNDS RUBBER, sbs, SCT Germany, STARLINE, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WEEN, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.37907, 37577
ATE604809, 13.0460-4807.2, 13.0460-4809.2, 604807
BARUMBA2275
BENDIX573260B, 573260
BORG & BECKBBP2001
BOSCH0986494591, 0986495293, 0986495096, 0986494111, 0986494581, 0986TB2944
Brake ENGINEERINGPA1754
BREMBOP61092, P61090
BREMSIBP3285
CASALSBKM468
CIFAM8227080
COBREQN1184
DELPHILP1992
DENCKERMANNB110937
DITASDFB2714
Dr!ve+DP1010100908
E.T.F.121285
EUROBRAKE5502221959
FEBI BILSTEIN16716
FENOXBP43118
FERODOFVR1923, FVR1924
FOMARFO924481
fri.tech.7240
FTEBL2018A4, BL2019A4
GALFERB1G10208722, B1G10207632
GIRLING6116814, 6117414
Good Will1089F
G.U.DGBP123701
HANS PRIES722513
HELLA8DB355012931
HELLA PAGID8DB355012-931, T1657
HPHP7785, 7785
ICER141803-207
JURATEKJCP021
JURID573260, 573260J
KAWE123701, 810094
KLAXCAR FRANCE24101Z
KRAFT6003423
LUCAS DIESELGDB1681, GDB1741
LUCAS ELECTRICALGDB1681, GDB1741
LUCAS ENGINE DRIVEGDB1741, GDB1681
LUCAS TVSGDB1741, GDB1681
MAGNETI MARELLI363702161467, 363710201657, 363916060189
METELLI2207080
METZGER123712, 1170348, 123701, 127501, 1170073, 1170248
MEYLE02524468191PD, 0252446819W2, 0252446819W1, 02524468192PD
MGA847, MGA847
MINTEXMDB2846
MOTRIO8671016687
NECTOFD7266V, FD7267V
NIBKPN0474W
NK221959
OPTIMAL12299
PAGID8DB355012-931, T1657
PROCODIS FRANCEPF1439
PROFIT50001923, 50001923C
PROTECHNICPRP1230, PRP12303M
QH InternationalHP7785
QUINTON HAZELLBP1573, MBP1573
RAICAMRA08850
R BRAKERB1803
REMSA21237.12, 1237.01, 21237.01, 1237.12
ROADHOUSE21237.12, 21237.01
ROULUNDS RUBBER845481
sbs1501221959
SCT GermanySP477PR
STARLINEBDS847P, BDS406
SWAG62916716
TEXTAR2446802, 2446801
TRISCAN811010562
TRUSTING7240
TRWGDB1681, GDB1741
VAICOV420093
VALEO301568, 598891, 598568, 301891
WEEN1512624
WOKINGP1337301
ZIMMERMANN244681902, 244681903, 244681901

Vehicle fitment / ICER 141803 Brake Pad Set, disc brake compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (ICER 141803) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 110 hp 81 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 110 hp 81 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
110 Multijet 2
3 D
115 Multijet 2
0 D
120 Multijet 2
3 D
120 Multijet 2
3 D 4x4
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
150 Multijet 3
0 D
160 Multijet 3
0 D
180 Multijet 2
3 D
180 Multijet 3
0 D
2006/07 - 250A1.000 116 hp 85 kW 2 L Diesel
250A2.000 116 hp 85 kW 2 L Diesel
4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AGL411A 150 hp 110 kW 2.3 L Diesel
F1AGL411C 150 hp 110 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AGL411C 150 hp 110 kW 2.3 L Diesel
F1AE3481G 113 hp 83 kW 2.3 L Diesel
F1AGL411B 177 hp 130 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CFA401A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 110 hp 81 kW 2 L Diesel
120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 110 hp 81 kW 2 L Diesel
120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
