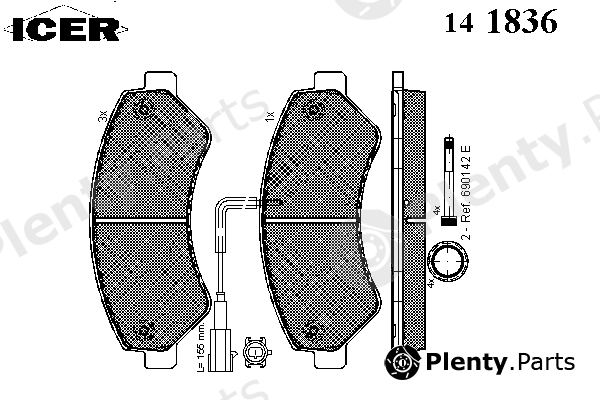

ICER 141836 Brake Pad Set, disc brake

ICER part 141836 Brake Pad Set, disc brake

ICER 141836 Brake Pad Set, disc brake

by ICER

Manufacturer Part Number: 141836
Alternative ICER part number(s): 24466, 24467, 22022, D1540-8748

Сharacteristics:
  • Brake Type: Disc Brake
  • Length [mm]: 169,1
  • Height [mm]: 69,4
  • Thickness [mm]: 19,1
  • Quality: 300
  • Weight [kg]: 2.620
  • Axle Version: Front
  • Technical Information Number: 141836
  • Brake System: Brembo
  • Inspection Tag: E9 90R-01111/2243
  • Wear Warning Contact: incl. wear warning contact

Product Details

BrandICER
ICER article (MPN)141836 Alternative ICER part number(s): 24466, 24467, 22022, D1540-8748
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4253.73, 4253.76, 4253.75, 4254.63, 1607878980, 4254.64, 4253.74
FIAT / LANCIA / ALFA77364319, 77366021, 77364015, 77364161, 77364318, 77366022, 77366024

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ICER 141836 Brake Pad Set, disc brake offered by A.B.S., ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, BREMSI, BSF, CASALS, CIFAM, DELPHI, DITAS, Dr!ve+, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FOMAR, fri.tech., FTE, GIRLING, Good Will, G.U.D, HELLA, HELLA PAGID, HP, JURATEK, JURID, KAWE, LPR, LUCAS DIESEL, LUCAS ELECTRICAL, LUCAS ENGINE DRIVE, LUCAS TVS, MAGNETI MARELLI, METELLI, METZGER, MEYLE, MGA, MINTEX, MOTRIO, NECTO, NIBK, NK, OPTIMAL, PAGID, PROCODIS FRANCE, PROTECHNIC, QH International, QUINTON HAZELL, RAICAM, R BRAKE, REMSA, ROADHOUSE, ROULUNDS RUBBER, sbs, SCT Germany, STARLINE, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, WEEN, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.37908, 37576
ATE13.0460-4810.2, 604811, 13.0460-4811.2, 604810
BARUMBA2328
BENDIX573261, 573261B
BORG & BECKBBP2020
BOSCH0986TB3029, 0986494109, 0986495095
Brake ENGINEERINGPA1755
BREMBOP61094, P61093
BREMSIBP3323
BSF20110, 10847
CASALSBKM466
CIFAM8227090
DELPHILP1993
DITASDFB2713
Dr!ve+DP1010100909
E.T.F.121323
FEBI BILSTEIN16840
FENOXBP43122
FERODOFVR1925, FVR1926, FDB1925
FOMARFO930681
fri.tech.7250
FTEBL2021A4, BL2020A4
GIRLING6119825, 6117039
Good Will1092F
G.U.DGBP127501
HELLA8DB355012921
HELLA PAGIDT1656, 8DB355012921
HPHP7834
JURATEKJCP022
JURID573261, 573261J
KAWE127501
LPR05P1288
LUCAS DIESELGDB1703
LUCAS ELECTRICALGDB1703
LUCAS ENGINE DRIVEGDB1703
LUCAS TVSGDB1703
MAGNETI MARELLI363916060643, 363916060190, 363710201656, 363702161501
METELLI2207090
METZGER127512, 1170248, 127501, 1170591
MEYLE0252446619W1, 02524466192PD, 02524466191PD, 0252446619W2
MGA877, MGA877
MINTEXMDB2848
MOTRIO8671016688
NECTOFD7268V, FD7269V
NIBKPN0516W
NK221962.
OPTIMAL12445
PAGIDT1656
PROCODIS FRANCEPF1440
PROTECHNICPRP12313M, PRP1231
QH InternationalHP7834
QUINTON HAZELLBP1575, MBP1575
RAICAMRA08860
R BRAKERB1836
REMSA21275.01, 1275.01
ROADHOUSE21275.01
ROULUNDS RUBBER845581
sbs1501221962.
SCT GermanySP387PR
STARLINEBDS516, BDS846P
SWAG62916840
TEXTAR2446719015, 2446619015, 2446601, 2446602, 2446701, 2446619025
TRISCAN811010572
TRUSTING7250
TRWGDB1982, GDB1703
VAICOV420094
VALEO601276
WEEN1512639
WOKINGP1375301
ZIMMERMANN244661903, 244661902, 244661901

Vehicle fitment / ICER 141836 Brake Pad Set, disc brake compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (ICER 141836) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 110 hp 81 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi 145
3.0 HDi 155
3.0 HDi 160
3.0 HDi 180
2006/04 - 110 hp 81 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
AHN(DW10FUD) 130 hp 96 kW 2 L Diesel
AHP(DW10FUC) 163 hp 120 kW 2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
250
290
100 Multijet 2
2 D
110 Multijet 2
3 D
115 Multijet 2
0 D
120 Multijet 2
3 D
120 Multijet 2
3 D 4x4
130 Multijet 2
3 D
140 Natural Power
150 Multijet 2
3 D
150 Multijet 3
0 D
160 Multijet 3
0 D
180 Multijet 2
3 D
180 Multijet 3
0 D
2006/07 - 250A1.000 116 hp 85 kW 2 L Diesel
250A2.000 116 hp 85 kW 2 L Diesel
4HV 100 hp 74 kW 2.2 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
F1AE0481D 120 hp 88 kW 2.3 L Diesel
FPT 120 hp 88 kW 2.3 L Diesel
F1AE0481N 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE0481T 126 hp 93 kW 2.3 L Diesel
F1AE3481D 131 hp 96 kW 2.3 L Diesel
F1AGL411D 131 hp 96 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AGL411A 150 hp 110 kW 2.3 L Diesel
F1AGL411C 150 hp 110 kW 2.3 L Diesel
F1AE3481E 148 hp 109 kW 2.3 L Diesel
F1AGL411C 150 hp 110 kW 2.3 L Diesel
F1AE3481G 113 hp 83 kW 2.3 L Diesel
F1AGL411B 177 hp 130 kW 2.3 L Diesel
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CE0441A 136 hp 100 kW 3 L Petrol
F1CFA401A 136 hp 100 kW 3 L Petrol
F1CE0481D 156 hp 115 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481M 158 hp 116 kW 3 L Diesel
F1CE0481D 158 hp 116 kW 3 L Diesel
F1CE3481E 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 110 hp 81 kW 2 L Diesel
120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
2.0 BlueHDi 110
2.0 BlueHDi 130
2.0 BlueHDi 160
2.2 HDi 100
2.2 HDi 110
2.2 HDi 120
2.2 HDi 130
2.2 HDi 150
3.0 HDi
3.0 HDi 145
3.0 HDi 160
3.0 HDi 175
2006/04 - 110 hp 81 kW 2 L Diesel
120 hp 88 kW 2.2 L Diesel
130 hp 96 kW 2 L Diesel
146 hp 107 kW 3 L Diesel
163 hp 120 kW 2 L Diesel
4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 131 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HU(P22DTE) 120 hp 88 kW 2.2 L Diesel
4HV(P22DTE) 101 hp 74 kW 2.2 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 156 hp 116 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
