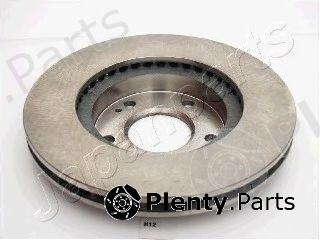

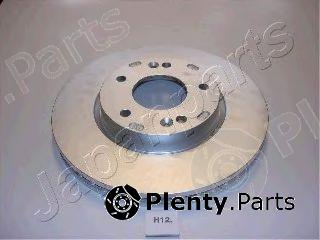

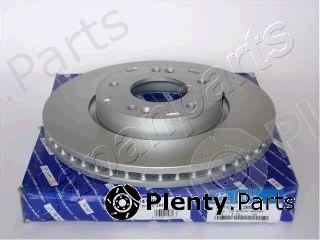

JAPANPARTS DI-H12 (DIH12) Brake Disc

JAPANPARTS part DI-H12 (DIH12) Brake Disc
JAPANPARTS part DI-H12 (DIH12) Brake Disc
JAPANPARTS part DI-H12 (DIH12) Brake Disc

JAPANPARTS DI-H12 (DIH12) Brake Disc

by JAPANPARTS

Manufacturer Part Number: DI-H12 (DIH12)

Сharacteristics:
  • Fitting Position: Front Axle
  • Bolt Hole Circle Ø [mm]: 69
  • Height [mm]: 47,7
  • Diameter [mm]: 279,8
  • Brake Disc Thickness [mm]: 26
  • Minimum thickness [mm]: 24
  • Number of Bores: 5
  • Brake Disc Type: Vented

Product Details

BrandJAPANPARTS
JAPANPARTS article (MPN)DI-H12 (DIH12)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for HYUNDAI / KIA (MOBIS) vehicles

OE manufacturerOEM reference numbers
HYUNDAI / KIA (MOBIS)51712-1H000, 51712-2C000, 51712-1D100, 51712-2K100, 51712-3K050, 51712-1H100, 517121F000, 51712-A6000

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for JAPANPARTS DI-H12 (DIH12) Brake Disc offered by A.B.S., ASHIKA, ASHUKI, ATE, BLUE PRINT, Brake ENGINEERING, BREMBO, BREMSI, BSF, CIFAM, COMLINE, DELPHI, Dr!ve+, EUROBRAKE, FEBI BILSTEIN, FENOX, FERODO, FOMAR, FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, IPS Parts, JAPKO, JP GROUP, JURID, KAGER, KAISHIN, KAVO PARTS, KAWE, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MDR, METELLI, METZGER, MEYLE, MINTEX, NECTO, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VALEO, VEMA, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17640
ASHIKA60-0H-012
ASHUKI0990-0350HD, I032-35, 0990-0350, I032-35O, I032-65
ATE24.0126-0128.1
BLUE PRINTADG043135, ADG04395, ADG04358, ADG043130
Brake ENGINEERINGDI956778, DI956505
BREMBO09.5587.10, 09.9574.10
BREMSIDBB619V
BSF11427V
CIFAM800927C, 800789C
COMLINEADC1041V
DELPHIBG3861
Dr!ve+DP1010110408
EUROBRAKE5815203526
FEBI BILSTEIN31470, 31316
FENOXTB219312, TB217755
FERODODDF16191, DDF1300, DDF1619
FOMARFO2680, FO2691
FTEBS7132, BS7132B
GIRLING6048655, 6042831
GRAFDF29405
HANS PRIES820376
HELLA8DD355120141, 8DD355118151, 8DD355111411, 8DD355114021
HELLA PAGID8DD355118151, 8DD355114021, 8DD355120141, 8DD355111411
HERTH+BUSS JAKOPARTSJ3300510, J3300304
HP58298
IPS PartsIBT-1H12
JAPKO60H12
JP GROUP3563100809
JURID562433J, 562433JC, 562625JC
KAGER370827, 371224
KAISHINCBR023
KAVO PARTSBR-3228, BR-4229, BR4229C, BR3228C
KAWE6120810
LPRH2003V
LUCAS ELECTRICALDF4283
MAGNETI MARELLI360406027100, 353611811240, 600000085860
MDRMFD-2H12
METELLI230789C, 230927C, 230789
METZGER6120810, 6110175
MEYLE28155210008PD, 28-155210008, 37155210004PD, 37155210004
MINTEXMDC1780, MDC2056
NECTOWN1310
NIPPARTSJ3300530
NK203526, 203421, 313526
OPEN PARTSBDR244320, BDA244320
OPTIMALBS8434
PAGID54339, 54616
PATRONPBD4865, PBD4283
PILENGAV693
QUINTON HAZELLBDC5404, 58298
REMSA61208.10
ROADHOUSE6120810
ROTINGERRT20242, RT20659T5, RT20659, RT20242T5
sbs1815203526, 1815313526
SWAG90931470, 90931316
TEMPLIN0311017025, 0311017020, 0311017260, 0311017265
TEXTAR92161600, 92133903, 92133900, 92161603
TRISCAN812043123
TRUSTINGDF1605
TRWDF4865S, DF4408, DF4283
VAICOV5380005
VALEO186891, 197302, 297205, 197205
VEMA98752, 98754
WAGNER LOCKHEEDWGR16191
WOKINGD6120810
ZIMMERMANN320380652, 320380620

Vehicle fitment / JAPANPARTS DI-H12 (DIH12) Brake Disc compatibility

This product fits the following models: HYUNDAI COUPE, HYUNDAI ELANTRA, HYUNDAI ELANTRA GT, HYUNDAI EMBERA V, HYUNDAI I30, HYUNDAI I30 CW, HYUNDAI IX20, HYUNDAI NF V, HYUNDAI SONATA V, HYUNDAI TIBURON, HYUNDAI TUCSON, HYUNDAI TUSCANI, KIA AGE, KIA CARENS III, KIA CEE'D, KIA CEE'D SW, KIA LOTZE, KIA MAGENTIS, KIA OPTIMA, KIA PRO CEE'D, KIA RONDO III, KIA SOUL, KIA VENGA, etc. See all vehicles this product (JAPANPARTS DI-H12 (DIH12)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
HYUNDAICOUPE
GK
1.6 16V
2.0
2.0 GLS
2.7 V6
2002/03 - 2009/08G4ED-G 105 hp 77 kW 1.6 L Petrol
G4ED-G 107 hp 79 kW 1.6 L Petrol
G4GC-G 139 hp 102 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
G6BA-G 167 hp 123 kW 2.7 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
HYUNDAIELANTRA
FD
1.4
1.6
1.6 CRDi
2007/10 - 2011/11D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAIELANTRA GT
GD
1.4
1.4 CRDi
1.6
1.6 GDI
2011/12 - D4FC 90 hp 66 kW 1.4 L Diesel
G4FA 99 hp 73 kW 1.4 L Petrol
G4FC 120 hp 88 kW 1.6 L Petrol
G4FD 135 hp 99 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAIEMBERA V
NF
2.4
3.3
2005/01 - 2010/12G4KC 162 hp 119 kW 2.4 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAII30
FD
GD
1.4
1.4 CRDi
1.6
1.6 CRDi
1.6 GDI
2007/10 - D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
D4FC 90 hp 66 kW 1.4 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FA 99 hp 73 kW 1.4 L Petrol
G4FC 120 hp 88 kW 1.6 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FD 135 hp 99 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAII30 CW
FD
GD
1.4
1.6
1.6 CRDi
1.6 GDI
2007/10 - D4FB 116 hp 85 kW 1.6 L Diesel
D4FB 90 hp 66 kW 1.6 L Diesel
G4FA 105 hp 77 kW 1.4 L Petrol
G4FA 109 hp 80 kW 1.4 L Petrol
G4FA 99 hp 73 kW 1.4 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4FD 135 hp 99 kW 1.6 L Petrol
G4FG 120 hp 88 kW 1.6 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
HYUNDAIIX20
JC
1.4
1.4 CRDi
1.6
2010/11 - D4FC 90 hp 66 kW 1.4 L Diesel
G4FA 90 hp 66 kW 1.4 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
HYUNDAINF V
NF
2.4
3.3
2005/01 - 2010/12G4KC 162 hp 119 kW 2.4 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAISONATA V
NF
2.4
3.3
2005/01 - 2010/12G4KC 162 hp 119 kW 2.4 L Petrol
G6DB 233 hp 171 kW 3.3 L Petrol
G6DB 235 hp 173 kW 3.3 L Petrol
Front wheel
Sedan / Saloon
HYUNDAITIBURON
GK
1.6 16V
2.0
2.0 GLS
2.7 V6
2002/03 - 2009/08G4ED-G 105 hp 77 kW 1.6 L Petrol
G4ED-G 107 hp 79 kW 1.6 L Petrol
G4GC-G 139 hp 102 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
G6BA-G 167 hp 123 kW 2.7 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
HYUNDAITUCSON
JM
2.0
2.0 CRDi
2.7
2004/08 - 2010/03D4EA 113 hp 83 kW 2 L Diesel
D4EA 136 hp 100 kW 2 L Diesel
D4EA 150 hp 110 kW 2 L Diesel
D4EA-F 140 hp 103 kW 2 L Diesel
D4EA-V 140 hp 103 kW 2 L Diesel
G4GC 141 hp 104 kW 2 L Petrol
G6BA-G 175 hp 129 kW 2.7 L Petrol
AWD / 4WD
Front wheel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
HYUNDAITUSCANI
GK
1.6 16V
2.0
2.0 GLS
2.7 V6
2002/03 - 2009/08G4ED-G 105 hp 77 kW 1.6 L Petrol
G4ED-G 107 hp 79 kW 1.6 L Petrol
G4GC-G 139 hp 102 kW 2 L Petrol
G4GC-G 143 hp 105 kW 2 L Petrol
G6BA-G 167 hp 123 kW 2.7 L Petrol
Front wheel
Coupe / Sports car / Grand tourer / Speedster / Roadster
KIAAGE
JE
KM
2.0 16V 4WD
2.0 CRDi
2.0 CRDi 4WD
2.0 i 16V
2.7 V6 4WD
2004/09 - D4EA 113 hp 83 kW 2 L Diesel
D4EA 113 hp 83 kW 2 L Diesel
D4EA-F 140 hp 103 kW 2 L Diesel
D4EA-V 140 hp 103 kW 2 L Diesel
G4GC 141 hp 104 kW 2 L Petrol
G6BA 175 hp 129 kW 2.7 L Petrol
AWD / 4WD
Front wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
KIACARENS III
UN
2.0 CRDi 140
2.0 CVVT
2006/09 - D4EA 140 hp 103 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
KIACEE'D
ED
1.4
1.6
1.6 CRDi 115
1.6 CRDi 90
2.0
2.0 CRDi
2.0 CRDi 140
2006/12 - 2012/12D4EA 136 hp 100 kW 2 L Diesel
D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIACEE'D SW
ED
1.4
1.6
1.6 CRDi 115
1.6 CRDi 90
2.0
2.0 CRDi 140
2007/09 - 2012/12D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 122 hp 90 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
KIALOTZE
MG
2.0
2.0 CRDi
2.7
2005/11 - D4EA 140 hp 103 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G6EA 188 hp 138 kW 2.7 L Petrol
Front wheel
Sedan / Saloon
KIAMAGENTIS
MG
2.0
2.0 CRDi
2.7
2005/11 - D4EA 140 hp 103 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G6EA 188 hp 138 kW 2.7 L Petrol
Front wheel
Sedan / Saloon
KIAOPTIMA
MG
2.0
2.0 CRDi
2.7
2005/11 - D4EA 140 hp 103 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
G6EA 188 hp 138 kW 2.7 L Petrol
Front wheel
Sedan / Saloon
KIAPRO CEE'D
ED
1.4
1.6
1.6 CRDi 115
1.6 CRDi 90
2.0
2.0 CRDi 140
2008/02 - 2012/09D4EA-F 140 hp 103 kW 2 L Diesel
D4FB 115 hp 85 kW 1.6 L Diesel
D4FB-L 90 hp 66 kW 1.6 L Diesel
G4FA 109 hp 80 kW 1.4 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
G4GC 143 hp 105 kW 2 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIARONDO III
UN
2.0 CRDi 140
2.0 CVVT
2006/09 - D4EA 140 hp 103 kW 2 L Diesel
G4KA 144 hp 106 kW 2 L Petrol
Front wheel
MPV / Van / Minivan
KIASOUL
AM
1.6 CRDi 128
1.6 CVVT
2009/02 - D4FB 126 hp 94 kW 1.6 L Diesel
G4FC 105 hp 77 kW 1.6 L Petrol
G4FC 126 hp 93 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
KIAVENGA
YN
1.4 CRDi 90
1.4 CVVT
1.6 CRDi 128
1.6 CVVT
2010/02 - D4FB 128 hp 94 kW 1.6 L Diesel
D4FC 90 hp 66 kW 1.4 L Diesel
G4FA-L 90 hp 66 kW 1.4 L Petrol
G4FC 125 hp 92 kW 1.6 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
