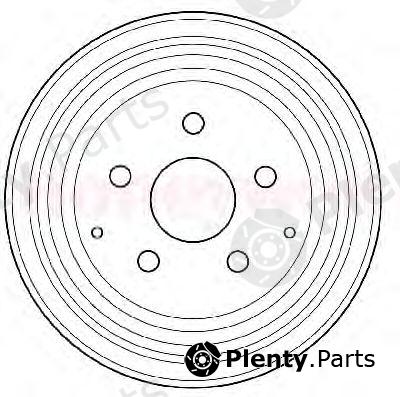

JURID 329131J Brake Drum

JURID 329131J Brake Drum

Manufacturer Part Number: 329131J
Alternative JURID part number(s): 329131, YH6202, 100614, 329131B

Сharacteristics:

Fitting Position: Rear Axle
Weight [kg]: 6,65
Bore Ø [mm]: 65
Drum Diameter: 252.1
Br. Drum outer diameter [mm]: 286
Max.skimmed drum measure [mm]: 253,5
Inner Brake Drum Height [mm]: 64
Total Br. Drum Height [mm]: 77,7
Number of Holes: 5
Bolt Hole Circle Ø [mm]: 112
Flange Hole Diameter [mm]: 65
Supplementary Article/Info 2: without ABS sensor ring
Supplementary Article/Info 2: without wheel bearing

Product Details

Brand	JURID
JURID article (MPN)	329131J Alternative JURID part number(s): 329131, YH6202, 100614, 329131B
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturer	OEM reference numbers
VAG	251609615

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for JURID 329131J Brake Drum offered by A.B.S., APEC braking, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CIFAM, DELPHI, FEBI BILSTEIN, FENOX, FERODO, FTE, HANS PRIES, HELLA, HELLA PAGID, HP, JURID, KAGER, LPR, LUCAS ELECTRICAL, METELLI, METZGER, MEYLE, MGA, MINTEX, NK, OPEN PARTS, PAGID, PEX, QUINTON HAZELL, sbs, SWAG, TEXTAR, TRISCAN, TRW, VAICO, ZIMMERMANN manufacturers

Manufacturer	Reference numbers
A.B.S.	7170S
APEC braking	DRM9700
ATE	24022520011, 24.0225-2002.2, 24022520012, 480046
BENDIX	329131B
BORG & BECK	BBR7047
BOSCH	0986477033
Brake ENGINEERING	DR960230
BRECO	BT5495
BREMBO	14.5495.10
CIFAM	700194
DELPHI	BF184
FEBI BILSTEIN	14062
FENOX	TO216166
FERODO	FDR329131
FTE	BT242
HANS PRIES	103281
HELLA	8DT355301641
HELLA PAGID	8DT355301641
HP	66231
JURID	329131J
KAGER	360017
LPR	7D0236
LUCAS ELECTRICAL	DB4053
METELLI	180194
METZGER	BT725
MEYLE	1155231011
MGA	7519
MINTEX	MBD296
NK	264706
OPEN PARTS	BAD901120
PAGID	63906
PEX	15.0090
QUINTON HAZELL	BDR242
sbs	1825264706, 825428697
SWAG	32914062
TEXTAR	94008300, 98100008301
TRISCAN	812029209
TRW	DB4053
VAICO	V1060003
ZIMMERMANN	600.1952.00

Vehicle fitment / JURID 329131J Brake Drum compatibility

This product fits the following models: VW AGON III, VW CARAVELLE III, VW TRANER CARAVELLE III, VW TRANER CARAVELLEIII, VW TRANER III, VW TRANERIII, VW TRANER T3, etc. See all vehicles this product (JURID 329131J) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
VW	AGON III	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	CARAVELLE III	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER CARAVELLE III	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER CARAVELLEIII	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
VW	TRANER III	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 69 hp 51 kW 2 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
VW	TRANERIII	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 69 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo With flatbed/undercarriage
VW	TRANER T3	1.6 D 1.6 TD 1.6 TD Syncro 1.7 D 1.9 1.9 Syncro 2.0 2.1 2.1 i 2.1 KAT 2.1 Syncro	1979/05 - 1992/07	CS 50 hp 37 kW 1.6 L Diesel CU 69 hp 51 kW 2 L Petrol CU 70 hp 51 kW 2 L Petrol CV 70 hp 51 kW 2 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol DF 60 hp 44 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DH 83 hp 61 kW 1.9 L Petrol GW 90 hp 66 kW 1.9 L Petrol DG 78 hp 57 kW 1.9 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol DJ 112 hp 82 kW 2.1 L Petrol MV 95 hp 70 kW 2.1 L Petrol SR 87 hp 64 kW 2.1 L Petrol JX 69 hp 51 kW 1.6 L Diesel JX 69 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel JX 70 hp 51 kW 1.6 L Diesel KY 57 hp 42 kW 1.7 L Diesel MV 95 hp 70 kW 2.1 L Petrol SS 92 hp 68 kW 2.1 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
