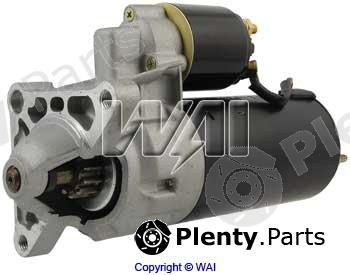

LESTER (WAIglobal) 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi

LESTER (WAIglobal) part 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi
LESTER (WAIglobal) part 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi

LESTER (WAIglobal) 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi

by LESTER (WAIglobal)

Manufacturer Part Number: 30477N
Alternative LESTER (WAIglobal) part number(s): SS496

Сharacteristics:
  • Voltage: 12 V
  • Rated Power: 1.7 kW
  • Number of Teeth: 11
  • Rotation Direction: Clockwise (CW)
  • Flange Diameter: 66 mm
  • Length: 263 mm
  • Starter Type: Self-supporting

Product Details

BrandLESTER (WAIglobal)
LESTER (WAIglobal) article (MPN)30477N Alternative LESTER (WAIglobal) part number(s): SS496
Vehicle subsystemAll

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, DAF, FERRARI, FIAT / LANCIA / ALFA, HYUNDAI / KIA (MOBIS), LADA, MITSUBISHI, SUZUKI, TALBOT vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT5802W7, 580236, 5802V5C, 555838, 5802M7P, 96356597, 91514312, 9648242180, 580235, 91514125, 9655507680, 5802W9, 5802Q5, 5802M3, 5802V8, 5802CG, 5802EA, 5802Z5, 96054384, 5802L4, 5802M9, 5802G9, 5802G0, 5802C4, 5802E2, 9101009880, 5802S3, 5802CQ, 96398467, 9648111680, 5802CA, 5802W5, 95514125, 9671014680, 580250, 582036, 5802A6, 1502453001E, 5802H7, 5802CP, 5802EP, 96035035, 95607234, 5802AW, 91040098, 9151431280, 5802M4, 9625382680, 5802AT, 5802EF, 5802CY, 9646972280, 5802FK, 5802FJ, 5802M7, 5802H8, 9104009880, 555836, 96365597, 5802CJ, 5802W4, 9656299480, 5802V5, 5802C3, 580292, 91536044, 5802EQ, 5802E8
DAF1516680R, 1516753R
FERRARI71719609, 71728811
FIAT / LANCIA / ALFA9947830, 71723361, 71716564, 9639846780, 71719606, 71719603, 9636559780, 9625382780, 1332419080, 71719595, 71722375, 71719600, 9603503580, 9656262780, 71719605, 9603503680, 71716565, 71722374, 71719604, 9625383080, 71782363, 1320921080, 71716562, 9624291480, 71716563, 9635659580, 71719608, 71785217, 1342792080, 71719599, 71719598, 9625383280
HYUNDAI / KIA (MOBIS)3610029000
LADA212153708010
MITSUBISHIM001T80081, M001T50171, M0T86081, M1T80381, M1T80481, M000T20871, M1T50171, M1T90281, M000T20872ZE, M001T50172, M000T20871ZE, M001T80381, M0T20871, M001T80082, M1T80082, M0T80082, M1T80081, M1T50172, M0T20872ZE, M0T20871ZE, M002T90071, M001T90281, M0T20872, M000T86081, M001T80481, M2T90071, 1810A101
SUZUKI3110086CB1
TALBOTA04009880

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for LESTER (WAIglobal) 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi offered by AS-PL, BOSCH, CV PSH, DELCO REMY, DENSO, ELSTOCK, FRIESEN, HC-PARTS, HELLA, LETRIKA, LUCAS ELECTRICAL, MAGNETI MARELLI, MAHLE, UNIPOINT, VALEO manufacturers

ManufacturerReference numbers
AS-PLS0309, S0163, S4040
BOSCH0001109026, 0986013241, 0001223014, 0001110017, 0986018970, 0001110056, 0986013240
CV PSH220518103
DELCO REMY913117, DRS8970, DRS3617, DRS3117, DRS3240
DENSO428000-1620
ELSTOCK253181, 250407, 252031, 252080
FRIESEN8013240
HC-PARTSCS594, CS373, CS1342, CS342, CS1177, 114460
HELLA8EA012528371, 8EA737084001, 8EA011610451, 8EA737751001, 8EA730228001, 8EA726121001, 8EA726218001, 8EA011610071, 8EA011611011, 8EA738174001, 8EA726090001
LETRIKA11130642, AZE6559, 11131986, AZE2521, IS1145
LUCAS ELECTRICALLRS751, LRS02112, LRS476, LRS00751, LRS00475
MAGNETI MARELLI943251127, 943251144, MSR377
MAHLEMS112, MS150, MS32
UNIPOINTSTR4613
VALEOD8R27, 454783, 726004, 455928, D7R26, D7R8, D7R20, 726804, 455929, 182604, VS285, 458180, D7R4, 188080, 726005, D7R2, VS140, 455514, 726805, VS704

Vehicle fitment / LESTER (WAIglobal) 30477N Starter Motor 1.7kW for Peugeot 406 / Citroën Xsara / Fiat / Mitsubishi compatibility

This product fits the following models: Citroën Relay, Citroën Xantia, Citroën Xsara, Citroën ZX, Peugeot 205, Peugeot 306, Peugeot 309, Peugeot 406, Peugeot Boxer, Peugeot J5, Peugeot Partner, etc. See all vehicles this product (LESTER (WAIglobal) 30477N) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CitroënRelay
I Van (230)
0 -
CitroënXantia
X1
0 -
CitroënXsara
Coupe
Estate
N1
0 -
CitroënZX
N2
0 -
Peugeot205
I
II
0 -
Peugeot306
7A
Estate
Saloon
0 -
Peugeot309
II
0 -
Peugeot406
Estate
Saloon
0 -
PeugeotBoxer
230 Van
0 -
PeugeotJ5
290L
0 -
PeugeotPartner
Combispace 5F
Van
0 -
