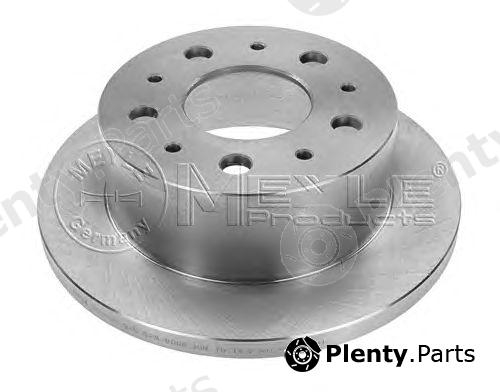

MEYLE 2155230006 Brake Disc

MEYLE part 2155230006 Brake Disc

MEYLE 2155230006 Brake Disc

by MEYLE

Manufacturer Part Number: 2155230006
Alternative MEYLE part number(s): MBD0406

Сharacteristics:
  • Fitting Position: Rear Axle
  • Outer diameter [mm]: 280
  • Height [mm]: 82
  • Brake Disc Thickness [mm]: 16
  • Minimum thickness [mm]: 14,2
  • Centering Diameter [mm]: 79
  • Bolt Hole Circle Ø [mm]: 130
  • Wheel Bolt Bore Ø [mm]: 17,5
  • Number of Holes: 5
  • Brake Disc Type: Solid

Product Details

BrandMEYLE
MEYLE article (MPN)2155230006 Alternative MEYLE part number(s): MBD0406
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for CITROEN / PEUGEOT, FIAT / LANCIA / ALFA vehicles

OE manufacturerOEM reference numbers
CITROEN / PEUGEOT4246.Z1, 4246.Z3, 4249.K9, 1607880580
FIAT / LANCIA / ALFA46833807, 71740117

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for MEYLE 2155230006 Brake Disc offered by A.B.S., APEC braking, ATE, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, CASALS, CIFAM, DELPHI, Dr!ve+, FERODO, FOMAR, fri.tech., GIRLING, HANS PRIES, HELLA, JP GROUP, KEY PARTS, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MINTEX, NK, OPTIMAL, PATRON, PILENGA, ROTINGER, STELLOX, TEMPLIN, TEXTAR, TRUSTING, TRW, VAICO, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17462
APEC brakingDSK2259
ATE416114, 24.0116-0125.1, 24.0116-0114.1
BORG & BECKBBD4404
BOSCH0986479C10, 0986479066, 0986479399
Brake ENGINEERINGDI956240S
BREMBO08.8094.30, 08.8094.40
CASALS55563, 55409
CIFAM800732
DELPHIBG3923
Dr!ve+DP1010110196
FERODODDF1145, DDF1145-1
FOMARFO2711
fri.tech.BD0869
GIRLING6042454
HANS PRIES721184
HELLA8DD355108-971, 8DD355108-981
JP GROUP4163200509
KEY PARTSKBD4404
MAGNETI MARELLI360406023600, 353611533550
MAPCO25038
METELLI230732
METZGER14808, 6110651
MINTEXMDC1686
NK203732
OPTIMALBS-6760
PATRONPBD4245
PILENGA5046
ROTINGERRT1497T5, RT1497
STELLOX60203732SX
TEMPLIN031102600090, 0311081170, 0311081175
TEXTAR92116203, 98200116201, 92116200
TRUSTINGDF869
TRWDF4245
VAICOV22-40002
ZIMMERMANN180.3020.00, 180.3020.20

Vehicle fitment / MEYLE 2155230006 Brake Disc compatibility

This product fits the following models: CITROËN JUMPER, CITROËN RELAY, FIAT DUCATO, PEUGEOT BOXER, PEUGEOT MANAGER, etc. See all vehicles this product (MEYLE 2155230006) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
CITROËNJUMPER

230
230L
230P
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.0 HDI
2.2 HDi
2.2 HDi 110
2.2 HDi 130
2.2 HDi 150
2.5 D
2.5 D 4x4
2.5 DT 4x4
2.5 TD
2.5 TD 4x4
2.5 TDi
2.5 TDi 4x4
2.5 TDI 4x4
2.8 HDi
2.8 HDi 4x4
3.0 HDi 145
3.0 HDi 155
3.0 HDi 180
1994/02 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 126 hp 93 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
RFW(XU10J2U) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel
T9A(DJ5) 86 hp 63 kW 2.5 L Diesel
THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel
THZ(DJ5T) 103 hp 76 kW 2.5 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
CITROËNRELAY

230
230L
230P
244
244
Z
2.0
2.0 bivalent
2.0 HDi
2.0 HDI
2.2 HDi
2.2 HDi 110
2.2 HDi 130
2.2 HDi 150
2.5 D
2.5 D 4x4
2.5 DT 4x4
2.5 TD
2.5 TD 4x4
2.5 TDi
2.5 TDi 4x4
2.5 TDI 4x4
2.8 HDi
2.8 HDi 4x4
3.0 HDi 145
3.0 HDi 155
3.0 HDi 180
1994/02 - 4HG(P22DTE) 110 hp 81 kW 2.2 L Diesel
4HH(P22DTE) 130 hp 96 kW 2.2 L Diesel
4HJ(P22DTE) 150 hp 110 kW 2.2 L Diesel
4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 126 hp 93 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
F1CE0481D(F30DT) 156 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 157 hp 115 kW 3 L Diesel
F1CE0481D(F30DT) 177 hp 130 kW 3 L Diesel
F1CE3481N 146 hp 107 kW 3 L Diesel
RFW(XU10J2U) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel
T9A(DJ5) 86 hp 63 kW 2.5 L Diesel
THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel
THZ(DJ5T) 103 hp 76 kW 2.5 L Diesel
XU10J2 110 hp 81 kW 2 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
FIATDUCATO
230
230L
244
244
Z
2.0
2.0 4x4
2.0 Bipower
2.0 JTD
2.0 Panorama/Combinato
2.3 JTD
2.5 D
2.5 D 4x4
2.5 D Combinato
2.5 TDI
2.5 TDI 4x4
2.5 TDI Panorama/Combinato
2.8 D
2.8 D 4x4
2.8 JTD
2.8 JTD 4x4
2.8 JTD Power
2.8 TDI
2.8 TDI 4x4
1994/03 - 8140.43 122 hp 90 kW 2.8 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S 128 hp 94 kW 2.8 L Diesel
8140.47 116 hp 85 kW 2.5 L Diesel
8140.47 116 hp 85 kW 2.5 L Diesel
8140.47R 109 hp 80 kW 2.5 L Diesel
8140.63 87 hp 64 kW 2.8 L Diesel
8140.67 84 hp 62 kW 2.5 L Diesel
F1AE0481C 110 hp 81 kW 2.3 L Diesel
RFL 110 hp 81 kW 2 L Petrol
RFW 109 hp 80 kW 2 L Petrol
RHV(DW10) 84 hp 62 kW 2 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTBOXER

230L
230P
244
244
Z
ZCT
2.0 HDi
2.0 i
2.0 i 4x4
2.2 HDi
2.5 D
2.5 D 4x4
2.5 TD
2.5 TD 4x4
2.5 TDI
2.5 TDI 4x4
2.8 HDi
2.8 HDI
2.8 HDi 4x4
3.0 HDi 145
1994/03 - 146 hp 107 kW 3 L Diesel
4HY(DW12UTED) 101 hp 74 kW 2.2 L Diesel
8140.43N 145 hp 107 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.43N 146 hp 107 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
8140.43S(F28DTCR) 128 hp 94 kW 2.8 L Diesel
RFW(XU10J2) 109 hp 80 kW 2 L Petrol
RHV(DW10TD) 84 hp 62 kW 2 L Diesel
RHV(DW10UTD) 84 hp 62 kW 2 L Diesel
T8A(DJ5T) 103 hp 76 kW 2.5 L Diesel
T9A(DJ5) 86 hp 63 kW 2.5 L Diesel
THX(DJ5TED) 107 hp 79 kW 2.5 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
PEUGEOTMANAGER
3.0 HDi 145
2010/04 - 146 hp 107 kW 3 L Diesel
Front wheel
With flatbed/undercarriage
