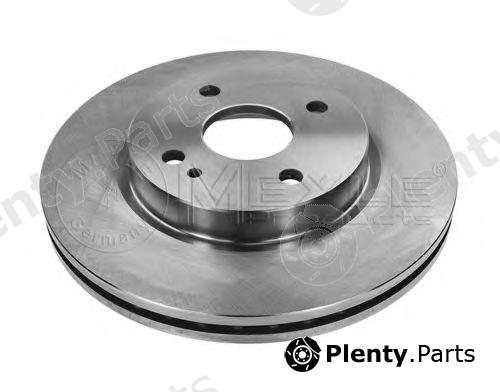

MEYLE 35-155210030 (35155210030) Brake Disc

MEYLE part 35-155210030 (35155210030) Brake Disc

MEYLE 35-155210030 (35155210030) Brake Disc

by MEYLE

Manufacturer Part Number: 35-155210030 (35155210030)
Alternative MEYLE part number(s): MBD0925

Сharacteristics:
  • Fitting Position: Front Axle
  • Outer diameter [mm]: 258
  • Height [mm]: 44
  • Brake Disc Thickness [mm]: 23
  • Minimum thickness [mm]: 21
  • Centering Diameter [mm]: 55
  • Bolt Hole Circle Ø [mm]: 108
  • Wheel Bolt Bore Ø [mm]: 13
  • Number of Holes: 4
  • Brake Disc Type: Vented

Product Details

BrandMEYLE
MEYLE article (MPN)35-155210030 (35155210030) Alternative MEYLE part number(s): MBD0925
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for MAZDA vehicles

OE manufacturerOEM reference numbers
MAZDADF71-33-251

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for MEYLE 35-155210030 (35155210030) Brake Disc offered by A.B.S., APEC braking, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, CIFAM, DELPHI, FERODO, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, JAPANPARTS, JP GROUP, JURID, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MINTEX, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PILENGA, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
A.B.S.17938
APEC brakingDSK2630
ASHUKIM60639
ATE24012301121
BENDIX562564BC
BLUE PRINTADM543100
BORG & BECKBBD4700
BOSCH0986479541
Brake ENGINEERINGDI956774
BREMBO09A96814
CIFAM800983
DELPHIBG4254
FERODODDF1738, DDF1738-1
GIRLING6049661
HELLA8DD355114541
HELLA PAGID8DD355114-541
HERTH+BUSS JAKOPARTSJ3303009
JAPANPARTSDI-325
JP GROUP3863100909
JURID562564JC
KAWE6126610
LPRM5017V
MAGNETI MARELLI600000087830
MAPCO25243
METELLI23-0983
METZGER6126610, 6110266
MINTEXMDC2042
NIPPARTSN3303086
NK313267, 203267
OPEN PARTSBDA249020, BDR249020
OPTIMALBS8738
PAGID54668
PILENGAV535
QUINTON HAZELLBDC5754
REMSA6126610
ROADHOUSE6126610
ROTINGERRT20779T5, RT20779
sbs1815203267, 1815313267
TEMPLIN0311022235, 0311022230
TEXTAR92166803, 92166800, 98200166801
TRISCAN812050152
TRUSTINGDF1254
TRWDF4966
VAICOV3280011
WOKINGD6126610
ZIMMERMANN370308152, 370308120, 370.3081.00

Vehicle fitment / MEYLE 35-155210030 (35155210030) Brake Disc compatibility

This product fits the following models: MAZDA 2, MAZDA DEMIO, etc. See all vehicles this product (MEYLE 35-155210030 (35155210030)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
MAZDA2
DE
1.3
1.3 MZR
1.4 MZR-CD
1.5
1.5 MZR
1.6 MZ-CD
2007/10 - 2015/06Y404 68 hp 50 kW 1.4 L Diesel
Y406 90 hp 66 kW 1.6 L Diesel
Y646 90 hp 66 kW 1.6 L Diesel
Y655 95 hp 70 kW 1.6 L Diesel
Y661 95 hp 70 kW 1.6 L Diesel
ZJ-VE 75 hp 55 kW 1.3 L Petrol
ZJ-VE 86 hp 63 kW 1.3 L Petrol
ZJ-VE 84 hp 62 kW 1.3 L Petrol
ZY05 102 hp 75 kW 1.5 L Petrol
ZY66 102 hp 75 kW 1.5 L Petrol
ZY-DE 103 hp 76 kW 1.5 L Petrol
ZY-VE 103 hp 76 kW 1.5 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
MAZDADEMIO
DE
1.3
1.3 MZR
1.4 MZR-CD
1.5
1.5 MZR
1.6 MZ-CD
2007/10 - 2015/06Y404 68 hp 50 kW 1.4 L Diesel
Y406 90 hp 66 kW 1.6 L Diesel
Y646 90 hp 66 kW 1.6 L Diesel
Y655 95 hp 70 kW 1.6 L Diesel
Y661 95 hp 70 kW 1.6 L Diesel
ZJ-VE 75 hp 55 kW 1.3 L Petrol
ZJ-VE 86 hp 63 kW 1.3 L Petrol
ZJ-VE 84 hp 62 kW 1.3 L Petrol
ZY05 102 hp 75 kW 1.5 L Petrol
ZY66 102 hp 75 kW 1.5 L Petrol
ZY-DE 103 hp 76 kW 1.5 L Petrol
ZY-VE 103 hp 76 kW 1.5 L Petrol
Front wheel
Hatchback / Sportback / Sport hatch
