NIPPARTS J3302038 Brake Disc

NIPPARTS part J3302038 Brake Disc

NIPPARTS J3302038 Brake Disc

by NIPPARTS

Manufacturer Part Number: J3302038

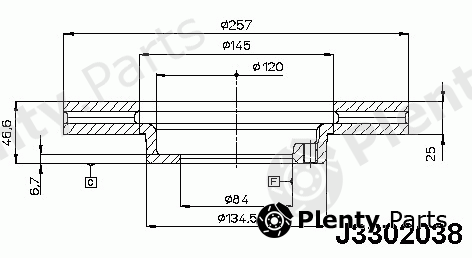

Сharacteristics:
  • Diameter [mm]: 257
  • Height [mm]: 46,8
  • Brake Disc Type: Internally Vented
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 24
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 110
  • Hub Diameter [mm]: 134,2
  • Centering Diameter [mm]: 84

Product Details

BrandNIPPARTS
NIPPARTS article (MPN)J3302038
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-35260, 43512-26040, 43512-26070, 43512-35180

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for NIPPARTS J3302038 Brake Disc offered by A.B.S., ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, CIFAM, COMLINE, DELPHI, FERODO, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAMOKA, KAVO PARTS, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MDR, METELLI, METZGER, MEYLE, MINTEX, NK, NPS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, ROADHOUSE, sbs, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO manufacturers

ManufacturerReference numbers
A.B.S.15659
ASHIKA60-02-270, 6002268
ASHUKIT60276
ATE24.0125-0118.1
BENDIX561301B, 561301BC, 561442B
BLUE PRINTADT34398, ADT34324
BORG & BECKBBD4044
BOSCH0986478397
Brake ENGINEERINGDI952780
BREMBORS8570, 09.5017.10
CIFAM800716
COMLINEADC0142V
DELPHIBG2423
FERODODDF416
fri.tech.BD0414
FTEBS3603, BS4818
GIRLING6019271
HELLA8DD355102191, 8DD355105181
HELLA PAGID8DD355102191, 8DD355105181
HERTH+BUSS JAKOPARTSJ3302070
HP55686
JAPANPARTSDI-270, DI268, JDI-270, JDI-238, JDI-209
JAPKO60268, 60270
JP GROUP1163106609
JURID561301J
KAGER370555
KAMOKA1031144
KAVO PARTSBR9327C, BR9327
LEMFÖRDER19085
LPRT2361V
LUCAS ELECTRICALDF1927
MAGNETI MARELLI600000087040
MAPCO25557
MDRMFD2270
METELLI23-0716
METZGER24199
MEYLE30155210097
MINTEXMDC1072, MDC976
NK319949, 209949, 204521
NPST330A38, T330A34
OPTIMALBS-4050, BS-1700
PAGID53641, 53932
PEX14.0550
PILENGAV654
QUINTON HAZELLBDC3603, BSF3603
ROADHOUSE6405.10
sbs1815202582
TEMPLIN0311027400
TEXTAR92050400, 98200050401, 92080300
TRISCAN812013113
TRUSTINGDF414
TRWDF1927
VALEO186696, 186670

Vehicle fitment / NIPPARTS J3302038 Brake Disc compatibility

This product fits the following models: TOYOTA DYNA, TOYOTA DYNA 100, TOYOTA DYNA 150, TOYOTA DYNA 200, TOYOTA HIACE, TOYOTA HIACE I, TOYOTA HIACE II, TOYOTA HILUX II, TOYOTA LITEACE, TOYOTA TACOMA II, VW TARO, etc. See all vehicles this product (NIPPARTS J3302038) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTADYNA
2.0
2.4 D
1977/08 - 1987/082J 75 hp 55 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
3Y 107 hp 79 kW 2 L Petrol
Rear wheel
Pickup truck / Pickup
With flatbed/undercarriage
TOYOTADYNA 100
YH
1.8
1985/08 - 1995/042Y 79 hp 58 kW 1.8 L Petrol
2Y 83 hp 61 kW 1.8 L Petrol
Rear wheel
With flatbed/undercarriage
TOYOTADYNA 150

LY
1.8
2.4 D
1985/08 - 2001/072L 73 hp 54 kW 2.4 L Diesel
2L 73 hp 54 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2Y 79 hp 58 kW 1.8 L Petrol
Rear wheel
With flatbed/undercarriage
TOYOTADYNA 200
2.2
1993/10 - 2001/074Y 94 hp 69 kW 2.2 L Petrol
Rear wheel
With flatbed/undercarriage
TOYOTAHIACE
2.2 D
1979/01 - 1985/07L 67 hp 49 kW 2.2 L Diesel
Rear wheel
Pickup truck / Pickup
TOYOTAHIACE I
LH1
RH1
LH3
RH3
LH2
RH2
RH1
LH3
RH3
RH2
LH2
LH1
1.6
2.0
2.2 D

LH20-30
RH20-30
RH25-32
1977/02 - 1983/0312R 67 hp 49 kW 1.6 L Petrol
18R 88 hp 65 kW 2 L Petrol
L 63 hp 46 kW 2.2 L Diesel
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE II
LH5
YH7
LH7
LH6
YH6
YH5
LH7
LH5
LH6
YH7
YH6
YH5
1.8
2.0
2.2 D
2.4 D
2.4 D 4WD

H5F
H5G
1983/03 - 1989/112L 73 hp 54 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2Y 79 hp 58 kW 1.8 L Petrol
3Y 88 hp 65 kW 2 L Petrol
L 67 hp 49 kW 2.2 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHILUX II
LN6
LN5
YN
LN8
RN5
LN6
YN6
YN5
LN5
RN6
1.8
2.0
2.2 D
2.2 D 4WD
2.4 D
2.4 D 4WD
2.4 TD 4WD
2.7

LN110L-CRM
LN150
LN145
LN4
LN5
YN85
YN90
1983/08 - 2005/071RZ-E 109 hp 80 kW 2 L Petrol
1RZ-E 110 hp 81 kW 2 L Petrol
1RZ-E 110 hp 81 kW 2 L Petrol
2L 75 hp 55 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 76 hp 56 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 80 hp 59 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2Y 79 hp 58 kW 1.8 L Petrol
2Y 83 hp 61 kW 1.8 L Petrol
3RZ-FE 145 hp 107 kW 2.7 L Petrol
99 hp 73 kW 2.4 L Diesel
L 67 hp 49 kW 2.2 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
With flatbed/undercarriage
TOYOTALITEACE
CM3V
KM3V
1.8
YM21
YM30
YM35
1984/01 - 1992/122Y 82 hp 60 kW 1.8 L Petrol
2Y 83 hp 61 kW 1.8 L Petrol
Rear wheel
LCV / Van / Cargo
TOYOTATACOMA II
LN8
RN5
LN6
YN6
YN5
LN5
RN6
1.8
2.0
2.2 D
2.2 D 4WD
2.4 D
2.4 D 4WD
2.4 TD 4WD
2.7

LN110L-CRM
LN150
LN145
LN4
LN5
YN85
YN90
1983/08 - 2005/071RZ-E 109 hp 80 kW 2 L Petrol
1RZ-E 110 hp 81 kW 2 L Petrol
2L 75 hp 55 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 76 hp 56 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 80 hp 59 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2Y 79 hp 58 kW 1.8 L Petrol
2Y 83 hp 61 kW 1.8 L Petrol
3RZ-FE 145 hp 107 kW 2.7 L Petrol
99 hp 73 kW 2.4 L Diesel
L 67 hp 49 kW 2.2 L Diesel
AWD / 4WD
Rear wheel
Pickup truck / Pickup
VWTARO
1.8
2.2
2.2 4x4
2.4 D
2.4 i 4x4
1989/04 - 1997/0322R 114 hp 84 kW 2.4 L Petrol
2L 79 hp 58 kW 2.4 L Diesel
2L 80 hp 59 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2Y 83 hp 61 kW 1.8 L Petrol
4Y 94 hp 69 kW 2.2 L Petrol
AWD / 4WD
Rear wheel
Pickup truck / Pickup
