NIPPARTS J3302104 Brake Disc

NIPPARTS part J3302104 Brake Disc

NIPPARTS J3302104 Brake Disc

by NIPPARTS

Manufacturer Part Number: J3302104

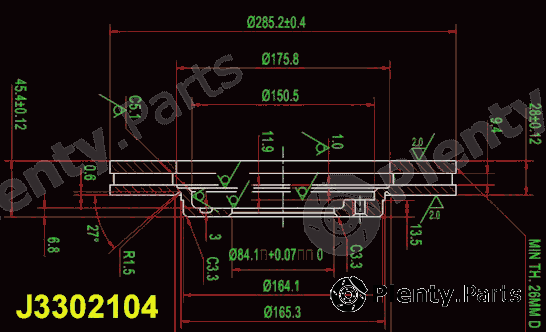

Сharacteristics:
  • Diameter [mm]: 285
  • Height [mm]: 45,5
  • Brake Disc Type: Internally Vented
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Number of Holes: 6
  • Bolt Hole Circle Ø [mm]: 127
  • Hub Diameter [mm]: 164
  • Centering Diameter [mm]: 84

Product Details

BrandNIPPARTS
NIPPARTS article (MPN)J3302104
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA43512-26140, 43512-26160

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for NIPPARTS J3302104 Brake Disc offered by A.B.S., ASHIKA, ASHUKI, ATE, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, CIFAM, COMLINE, DELPHI, DENCKERMANN, FEBI BILSTEIN, FERODO, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, JAPANPARTS, JAPKO, KAGER, KAMOKA, KAVO PARTS, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MDR, METELLI, METZGER, MEYLE, MINTEX, NIBK, NK, NPS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW manufacturers

ManufacturerReference numbers
A.B.S.16615
ASHIKA60-02-2023
ASHUKI09901212, T60277
ATE24012801891
BLUE PRINTADT343101
BORG & BECKBBD4176
BOSCH0986478693
Brake ENGINEERINGDI955766
BREMBORS9283, 09.A203.10
CIFAM8001058C
COMLINEADC0176V
DELPHIBG3193
DENCKERMANNB130612
FEBI BILSTEIN29981
FERODODDF991
fri.tech.BD0718
FTEBS7686, BS7686B
GIRLING6041161
HELLA8DD355108-531
HELLA PAGID8DD355108531
HERTH+BUSS JAKOPARTSJ3302104
HP57745
JAPANPARTSDI-2023
JAPKO602023
KAGER370674
KAMOKA1031982
KAVO PARTSBR9390, BR9390C
LPRT2876V
LUCAS ELECTRICALDF4116
MAGNETI MARELLI600000087210
MDRMFD22023
METELLI231058C
METZGER1.52A3.2.4
MEYLE30155210086
MINTEXMDC1785
NIBKRN1266
NK204567, 314567
NPST330A110
OPTIMALBS-7990
PAGID54130
PEX14.0602
PILENGAV656
QUINTON HAZELLBDC4945
sbs1815204567
SWAG81929981
TEMPLIN0311027920
TEXTAR98200113001, 92113000
TRISCAN812013157
TRUSTINGDF718
TRWDF4116

Vehicle fitment / NIPPARTS J3302104 Brake Disc compatibility

This product fits the following models: TOYOTA GRANVIA, TOYOTA HIACE COMMUTER V, TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA HIACE V, TOYOTA QUANTUM III, TOYOTA QUANTUM V, etc. See all vehicles this product (NIPPARTS J3302104) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTAGRANVIA
H2
H1
2.4
2.7
3.0 TDi
3.4
1995/08 - 136 hp 100 kW 2.4 L Petrol
1KZ-TE 131 hp 96 kW 3 L Diesel
3RZ-FE 152 hp 112 kW 2.7 L Petrol
5VZ-FE 190 hp 140 kW 3.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAHIACE COMMUTER V
TRH2
KDH2
2.5 D-4D 4WD
2005/01 - 2KD-FTV 128 hp 94 kW 2.5 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTAHIACE III
LH1
RZH1
YH7
LH6
LH7
LH5
YH5
YH6
2.4
2.4 4WD
2.5 D-4D 4WD
3.0 D
1989/08 - 2004/082KD-FTV 88 hp 65 kW 2.5 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
5L 88 hp 65 kW 3 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE IV
LH1
LXH1
RCH1

LXH1
RZH1
LH1
YH7
LH6
LH7
LH5
YH5
YH6
2.4
2.4 4WD
2.4 D
2.4 i
2.4 SBV
2.4 TD
2.5 D-4D
2.5 D-4D 4WD
2.7

LXH12
LXH22
RCH12
RCH22
RCH13
RCH23
RCH18
RCH18
RCH28
RZH10
1989/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 115 hp 85 kW 2.4 L Petrol
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3RZ-FE 143 hp 105 kW 2.7 L Petrol
3RZ-FE 144 hp 106 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
TOYOTAHIACE SBV IV
LXH1
RZH1
LH1
2.4
2.4 4WD
2.4 D
2.4 i
2.4 SBV
2.4 TD
2.5 D-4D
2.5 D-4D 4WD
2.7

LXH12
LXH22
RCH12
RCH22
RCH13
RCH23
RCH18
RCH28
RZH10
1995/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3RZ-FE 143 hp 105 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
TOYOTAHIACE V
TRH2
KDH2
2.0
2.5 D-4D
2.7 VVTi

TRH201
TRH221
2005/01 - 1TR-FE 133 hp 98 kW 2 L Petrol
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2TR-FE 151 hp 111 kW 2.7 L Petrol
Rear wheel
LCV / Van / Cargo
TOYOTAQUANTUM III
LH1
RZH1
2.4
2.4 4WD
3.0 D
1989/08 - 2004/082RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
5L 88 hp 65 kW 3 L Diesel
AWD / 4WD
Rear wheel
Passenger Van / Wagon / Minibus
TOYOTAQUANTUM V
TRH2
KDH2
2.0
2.5 D-4D
2.5 D-4D 4WD
2.7 VVTi

TRH201
TRH221
2005/01 - 1TR-FE 133 hp 98 kW 2 L Petrol
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2KD-FTV 128 hp 94 kW 2.5 L Diesel
2TR-FE 151 hp 111 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
