NIPPARTS J3302116 Brake Disc
NIPPARTS J3302116 Brake Disc
by NIPPARTSManufacturer Part Number: J3302116

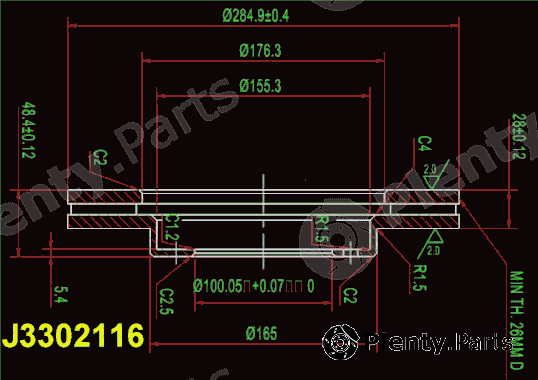

- Diameter [mm]: 285
- Height [mm]: 48,5
- Brake Disc Type: Internally Vented
- Brake Disc Thickness [mm]: 28
- Minimum thickness [mm]: 26
- Number of Holes: 6
- Bolt Hole Circle Ø [mm]: 127
- Hub Diameter [mm]: 164,6
- Centering Diameter [mm]: 100,1
Product Details
| Brand | NIPPARTS |
| NIPPARTS article (MPN) | J3302116 |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for TOYOTA vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| TOYOTA | 43512-26130 |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for NIPPARTS J3302116 Brake Disc offered by A.B.S., ASHUKI, BLUE PRINT, BORG & BECK, BOSCH, BREMBO, CIFAM, COMLINE, DELPHI, FERODO, fri.tech., HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, KAVO PARTS, MAGNETI MARELLI, METELLI, MEYLE, MINTEX, NIBK, NK, NPS, PAGID, sbs, STARLINE, TEXTAR, TRISCAN, TRUSTING, TRW manufacturers
| Manufacturer | Reference numbers |
|---|---|
| A.B.S. | 16656 |
| ASHUKI | 09906112 |
| BLUE PRINT | ADT343251 |
| BORG & BECK | BBD5240 |
| BOSCH | 00986AB9681 |
| BREMBO | RS9322 |
| CIFAM | 8001574 |
| COMLINE | ADC0933 |
| DELPHI | BG3193 |
| FERODO | DDF1441 |
| fri.tech. | BD0509 |
| HELLA | 8DD355118001, 8DD355117941 |
| HELLA PAGID | 8DD355118001 |
| HERTH+BUSS JAKOPARTS | J3302116 |
| HP | 57735 |
| KAVO PARTS | BR9388, BR9388C |
| MAGNETI MARELLI | 600000087300 |
| METELLI | 231574 |
| MEYLE | 30155210087 |
| MINTEX | MDC2347 |
| NIBK | RN1304 |
| NK | 3145153, 2045153 |
| NPS | T330A159 |
| PAGID | 55381 |
| sbs | 18152045153 |
| STARLINE | PB20220C |
| TEXTAR | 92238100 |
| TRISCAN | 8120131031 |
| TRUSTING | DF509 |
| TRW | DF7226 |
Vehicle fitment / NIPPARTS J3302116 Brake Disc compatibility
This product fits the following models: TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA QUANTUM III, etc. See all vehicles this product (NIPPARTS J3302116) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| TOYOTA | HIACE III LH1 RZH1 YH7 LH6 LH7 LH5 YH5 YH6 | 2.4 D 2.4 D 4WD 2.5 D-4D 4WD 2.8 D 3.4 4WD | 1989/08 - 2004/08 | 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 78 hp 57 kW 2.4 L Diesel 2L 78 hp 57 kW 2.4 L Diesel 3L 83 hp 61 kW 2.8 L Diesel 5VZ-FE 178 hp 131 kW 3.4 L Petrol | AWD / 4WD Rear wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus |
| TOYOTA | HIACE IV LH1 LXH1 RZH1 LH1 YH7 LH6 LH7 LH5 YH5 YH6 | 2.4 D 2.4 D 4WD 2.4 TD 4WD 2.5 D-4D 2.5 D-4D 4WD 2.7 2.7 4WD 2.8 D H18/28 LXH18 LXH28 RCH13 RCH23 RCH19 RCH19 RCH29 | 1989/08 - | 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 88 hp 65 kW 2.5 L Diesel 2KD-FTV 95 hp 70 kW 2.5 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 78 hp 57 kW 2.4 L Diesel 2L 78 hp 57 kW 2.4 L Diesel 2L-T 90 hp 66 kW 2.4 L Diesel 3L 83 hp 61 kW 2.8 L Diesel 3RZ-FE 143 hp 105 kW 2.7 L Petrol 3RZ-FE 144 hp 106 kW 2.7 L Petrol | AWD / 4WD Rear wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus |
| TOYOTA | HIACE SBV IV LXH1 RZH1 LH1 | 2.4 TD 4WD 2.5 D-4D 4WD 2.7 2.7 4WD LXH18 LXH28 RCH13 RCH23 RCH19 RCH29 | 1995/08 - | 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2L-T 90 hp 66 kW 2.4 L Diesel 3RZ-FE 143 hp 105 kW 2.7 L Petrol 3RZ-FE 144 hp 106 kW 2.7 L Petrol | AWD / 4WD Rear wheel | LCV / Van / Cargo |
| TOYOTA | QUANTUM III LH1 RZH1 | 2.4 D 4WD 2.5 D-4D 4WD 3.4 4WD | 1989/08 - 2004/08 | 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 5VZ-FE 178 hp 131 kW 3.4 L Petrol | AWD / 4WD | Passenger Van / Wagon / Minibus |
