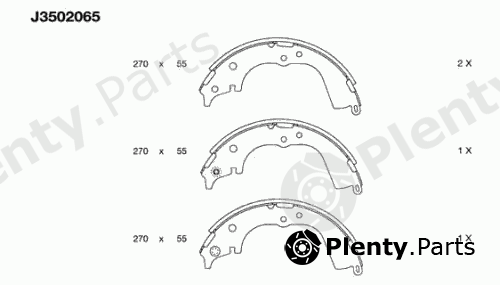

NIPPARTS J3502065 Brake Shoe Set

NIPPARTS J3502065 Brake Shoe Set

Manufacturer Part Number: J3502065

Сharacteristics:

Diameter [mm]: 270
Width [mm]: 55

Product Details

Brand	NIPPARTS
NIPPARTS article (MPN)	J3502065
Vehicle subsystem	Brake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturer	OEM reference numbers
TOYOTA	04495-26180, 04495-26210, 04495-26220, 04495-26230, 04495-35200

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for NIPPARTS J3502065 Brake Shoe Set offered by A.B.S., ASHIKA, ASHUKI, ATE, BLUE PRINT, BORG & BECK, BOSCH, BREMSI, BSF, CIFAM, DELPHI, fri.tech., HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, JAPANPARTS, JAPKO, KAVO PARTS, KAWE, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MDR, METELLI, MEYLE, MINTEX, MK Kashiyama, NK, NPS, PAGID, PROTECHNIC, QUINTON HAZELL, RAICAM, SAKURA, STELLOX, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO manufacturers

Manufacturer	Reference numbers
A.B.S.	8944
ASHIKA	55-02-242
ASHUKI	10505602
ATE	3013704682, 03.0137-0468.2
BLUE PRINT	ADT34146
BORG & BECK	BBS6291
BOSCH	0986487743
BREMSI	GF0941
BSF	01687
CIFAM	153428
DELPHI	LS1654, LS1744
fri.tech.	1115.298
HELLA	8DB355002181
HELLA PAGID	8DB355002181
HERTH+BUSS JAKOPARTS	J3502065
HP	1635
JAPANPARTS	GF-242AF, JGF-242AF
JAPKO	55242
KAVO PARTS	BS9919
KAWE	07225
LPR	07225
LUCAS ELECTRICAL	GS8693
MAGNETI MARELLI	600000093940
MDR	MRS2242
METELLI	530428
MEYLE	30145330019
MINTEX	MFR454
MK Kashiyama	K2330
NK	2745591
NPS	T350A71, T350A72
PAGID	H9295
PROTECHNIC	PRS0485
QUINTON HAZELL	BS881
RAICAM	RA28390, 2839
SAKURA	602203722
STELLOX	000500SX
TEXTAR	98101050904, 91050900
TRISCAN	810013591
TRUSTING	115298
TRW	GS8693
VALEO	562995

Vehicle fitment / NIPPARTS J3502065 Brake Shoe Set compatibility

This product fits the following models: TOYOTA GRANVIA, TOYOTA HIACE COMMUTER V, TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA HIACE V, TOYOTA QUANTUM III, TOYOTA QUANTUM V, etc. See all vehicles this product (NIPPARTS J3502065) fits below to verify fitment for your vehicle.

Make	Model	Variant	Period	Engine	Drive	Body Style
TOYOTA	GRANVIA H2 H1	2.4 2.7 3.0 TDi 3.4	1995/08 -	136 hp 100 kW 2.4 L Petrol 1KZ-TE 131 hp 96 kW 3 L Diesel 3RZ-FE 152 hp 112 kW 2.7 L Petrol 5VZ-FE 190 hp 140 kW 3.4 L Petrol	Front wheel	MPV / Van / Minivan
TOYOTA	HIACE COMMUTER V TRH2 KDH2	2.5 D-4D 4WD	2005/01 -	2KD-FTV 128 hp 94 kW 2.5 L Diesel	AWD / 4WD	Passenger Van / Wagon / Minibus
TOYOTA	HIACE III LH1 RZH1 YH7 LH6 LH7 LH5 YH5 YH6	2.4 2.4 4WD 2.5 D-4D 4WD 3.0 D 3.4 4WD	1989/08 - 2004/08	2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 88 hp 65 kW 2.5 L Diesel 2RZ-E 116 hp 85 kW 2.4 L Petrol 2RZ-E 120 hp 88 kW 2.4 L Petrol 5L 88 hp 65 kW 3 L Diesel 5VZ-FE 178 hp 131 kW 3.4 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
TOYOTA	HIACE IV LH1 LXH1 RCH1 LXH1 RZH1 LH1 YH7 LH6 LH7 LH5 YH5 YH6	2.4 2.4 4WD 2.4 D 2.4 i 2.4 SBV 2.4 TD 2.4 TD 4WD 2.5 D-4D 2.5 D-4D 4WD 2.7 2.7 4WD 3.0 D LXH12 LXH22 LXH18 LXH28 RCH12 RCH22 RCH13 RCH23 RCH18 RCH18 RCH28 RCH19 RCH19 RCH29 RZH10	1989/08 -	2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 88 hp 65 kW 2.5 L Diesel 2KD-FTV 95 hp 70 kW 2.5 L Diesel 2KD-FTV 88 hp 65 kW 2.5 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 79 hp 58 kW 2.4 L Diesel 2L 83 hp 61 kW 2.4 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 83 hp 61 kW 2.4 L Diesel 2L 79 hp 58 kW 2.4 L Diesel 2L-T 90 hp 66 kW 2.4 L Diesel 2RZ-E 115 hp 85 kW 2.4 L Petrol 2RZ-E 116 hp 85 kW 2.4 L Petrol 2RZ-E 120 hp 88 kW 2.4 L Petrol 3RZ-FE 143 hp 105 kW 2.7 L Petrol 3RZ-FE 144 hp 106 kW 2.7 L Petrol 5L 88 hp 65 kW 3 L Diesel	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage
TOYOTA	HIACE SBV IV LXH1 RZH1 LH1	2.4 2.4 4WD 2.4 D 2.4 i 2.4 SBV 2.4 TD 2.4 TD 4WD 2.5 D-4D 2.5 D-4D 4WD 2.7 2.7 4WD LXH12 LXH22 LXH18 LXH28 RCH12 RCH22 RCH13 RCH23 RCH18 RCH28 RCH19 RCH29 RZH10	1995/08 -	2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 88 hp 65 kW 2.5 L Diesel 2KD-FTV 95 hp 70 kW 2.5 L Diesel 2L 75 hp 55 kW 2.4 L Diesel 2L 83 hp 61 kW 2.4 L Diesel 2L 79 hp 58 kW 2.4 L Diesel 2L-T 90 hp 66 kW 2.4 L Diesel 2RZ-E 116 hp 85 kW 2.4 L Petrol 2RZ-E 120 hp 88 kW 2.4 L Petrol 3RZ-FE 143 hp 105 kW 2.7 L Petrol 3RZ-FE 144 hp 106 kW 2.7 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo
TOYOTA	HIACE V TRH2 KDH2	2.0 2.5 D-4D 2.7 VVTi TRH201 TRH221	2005/01 -	1TR-FE 133 hp 98 kW 2 L Petrol 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 95 hp 70 kW 2.5 L Diesel 2TR-FE 151 hp 111 kW 2.7 L Petrol	Rear wheel	LCV / Van / Cargo
TOYOTA	QUANTUM III LH1 RZH1	2.4 2.4 4WD 2.5 D-4D 4WD 3.0 D 3.4 4WD	1989/08 - 2004/08	2KD-FTV 102 hp 75 kW 2.5 L Diesel 2RZ-E 116 hp 85 kW 2.4 L Petrol 2RZ-E 120 hp 88 kW 2.4 L Petrol 5L 88 hp 65 kW 3 L Diesel 5VZ-FE 178 hp 131 kW 3.4 L Petrol	AWD / 4WD Rear wheel	Passenger Van / Wagon / Minibus
TOYOTA	QUANTUM V TRH2 KDH2	2.0 2.5 D-4D 2.5 D-4D 4WD 2.7 VVTi TRH201 TRH221	2005/01 -	1TR-FE 133 hp 98 kW 2 L Petrol 2KD-FTV 102 hp 75 kW 2.5 L Diesel 2KD-FTV 117 hp 86 kW 2.5 L Diesel 2KD-FTV 95 hp 70 kW 2.5 L Diesel 2KD-FTV 128 hp 94 kW 2.5 L Diesel 2TR-FE 151 hp 111 kW 2.7 L Petrol	AWD / 4WD Rear wheel	LCV / Van / Cargo Passenger Van / Wagon / Minibus
