NIPPARTS J3602076 Brake Pad Set, disc brake

NIPPARTS part J3602076 Brake Pad Set, disc brake

NIPPARTS J3602076 Brake Pad Set, disc brake

by NIPPARTS

Manufacturer Part Number: J3602076

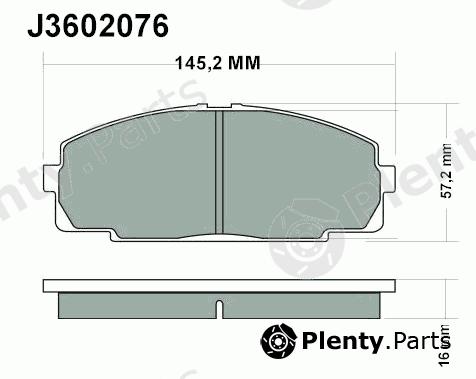

Сharacteristics:
  • Length [mm]: 145,2
  • Width [mm]: 56,8
  • Thickness [mm]: 15,3
  • Specification: ECE R90 APPROVED

Product Details

BrandNIPPARTS
NIPPARTS article (MPN)J3602076
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for TOYOTA vehicles

OE manufacturerOEM reference numbers
TOYOTA04465-26130, 04465-26160, 04465-26170, 04465-26180, 04491-26340, 446526320, 04491-26111, 04491-26170, 04491-26171, 04491-26210, 04491-26260, 04465-26300, 04465-26301, 04465-26310, 04465-YZZAD, 04491-26110, 04491-26261, 04491-26262, 04491-26270, 04465-26070, 04465-25040, 04465-25050, 04465-25060, 04465-26320

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for NIPPARTS J3602076 Brake Pad Set, disc brake offered by A.B.S., AKYOTO, ASHIKA, ASHUKI, ASVA, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BREMBO, COMLINE, DELPHI, DENCKERMANN, Dr!ve+, FERODO, FTE, GIRLING, GKN-SPIDAN, HELLA, HELLA PAGID, HERTH+BUSS JAKOPARTS, HP, IPS Parts, JAPANPARTS, JAPKO, JURID, KAMOKA, KAVO PARTS, KAWE, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MDR, METZGER, MEYLE, MINTEX, MK Kashiyama, NK, NPS, OPTIMAL, PAGID, QUINTON HAZELL, REMSA, ROADHOUSE, STARLINE, STELLOX, TEXTAR, TRISCAN, TRW, VAICO, VALEO, WOKING manufacturers

ManufacturerReference numbers
A.B.S.36761, 36702
AKYOTOAKD-1141, AKD-1237
ASHIKA50-02-286
ASHUKIT11265, 10809602HD
ASVAAKD1141, AKD1237
ATE13046057222
BENDIX572367B
BLUE PRINTADT342128, ADT342134, ADT342136, ADT34273AF, ADT34273, ADT34109, ADT342136AF, ADT34264AF, ADT342109, ADT34247AF
BORG & BECKBBP1451
BOSCH0986424319, 0986AB2026
Brake ENGINEERINGPA1414
BREMBOP83092
COMLINECBP0459, ADB0459
DELPHILP607, LP989
DENCKERMANNB111061
Dr!ve+DP1010100068
FERODOFVR1884
FTEBL1504A1
GIRLING6107709
GKN-SPIDAN31903
HELLA8DB355016921
HELLA PAGID8DB355016921
HERTH+BUSS JAKOPARTSJ3602083, J3602069
HP2587
IPS PartsIBD1248
JAPANPARTSPA-286AF, JPA-248AF, JPA-286AF
JAPKO50286
JURID572367J
KAMOKAJQ101275
KAVO PARTSBP9135, KBP9124, KBP-9002, BP9011
KAWE042100
LPR05P067, 05P577
LUCAS ELECTRICALGDB770
MAGNETI MARELLI600000097790
MDRMFP2286
METZGER0421.20
MEYLE0252146815
MINTEXMDB1398
MK KashiyamaD2104
NK224534, 79451895
NPST360A71, T360A22
OPTIMAL9818
PAGIDT3083
QUINTON HAZELLBP970, BP337, BLF443
REMSA042100
ROADHOUSE2421.00
STARLINEBDS804P
STELLOX432000BSX
TEXTAR2146801, 2146815504T4090
TRISCAN811013016
TRWGDB770
VAICOV700023
VALEO598947
WOKINGP521300

Vehicle fitment / NIPPARTS J3602076 Brake Pad Set, disc brake compatibility

This product fits the following models: TOYOTA DYNA, TOYOTA DYNA 200, TOYOTA DYNA 400, TOYOTA GRANVIA, TOYOTA HIACE COMMUTER V, TOYOTA HIACE II, TOYOTA HIACE III, TOYOTA HIACE IV, TOYOTA HIACE SBV IV, TOYOTA HIACE V, TOYOTA QUANTUM III, TOYOTA QUANTUM V, etc. See all vehicles this product (NIPPARTS J3602076) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
TOYOTADYNA
KD
LY
TRY2
K
LH8
2.4 D
2.5 D4d
3.0 D4d
3.0 D4d 4WD
4.0 D4d
4.0 D4d 4WD
4.1 LPG
1987/08 - 1BZ-FPE 116 hp 85 kW 4.1 L Petrol
1KD-FTV 109 hp 80 kW 3 L Diesel
1KD-FTV 136 hp 100 kW 3 L Diesel
1KD-FTV 144 hp 106 kW 3 L Diesel
5L 88 hp 65 kW 3 L Diesel
1KD-FTV 144 hp 106 kW 3 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
N04C-UL 150 hp 110 kW 4 L Diesel
N04C-UP 150 hp 110 kW 4 L Diesel
N04C-UQ 180 hp 132 kW 4 L Diesel
AWD / 4WD
Rear wheel
With flatbed/undercarriage
TOYOTADYNA 200
2.7
1995/06 - 2001/073RZ-FE 125 hp 92 kW 2.7 L Petrol
Rear wheel
With flatbed/undercarriage
TOYOTADYNA 400
XZU
4.1 TDi
4.6 TDi
2003/06 - 15B-FTE 170 hp 125 kW 4.1 L Diesel
S05C-TB 147 hp 108 kW 4.6 L Diesel
Rear wheel
With flatbed/undercarriage
TOYOTAGRANVIA
H2
H1
2.4
2.7
3.0 TDi
3.4
1995/08 - 136 hp 100 kW 2.4 L Petrol
1KZ-TE 131 hp 96 kW 3 L Diesel
3RZ-FE 152 hp 112 kW 2.7 L Petrol
5VZ-FE 190 hp 140 kW 3.4 L Petrol
Front wheel
MPV / Van / Minivan
TOYOTAHIACE COMMUTER V
TRH2
KDH2
2.5 D-4D 4WD
2005/01 - 2KD-FTV 128 hp 94 kW 2.5 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTAHIACE II
LH7
LH5
LH6
YH7
YH6
YH5
2.4 D 4WD
H5F
1987/01 - 1988/012L 73 hp 54 kW 2.4 L Diesel
AWD / 4WD
Passenger Van / Wagon / Minibus
TOYOTAHIACE III
LH1
RZH1
YH7
LH6
LH7
LH5
YH5
YH6
2.4
2.4 4WD
2.4 D
2.4 D 4WD
2.5 D-4D 4WD
2.8 D
3.0 D
3.4 4WD

LH102
RZH103
1989/08 - 2004/082KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 78 hp 57 kW 2.4 L Diesel
2L 78 hp 57 kW 2.4 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3L 83 hp 61 kW 2.8 L Diesel
5L 88 hp 65 kW 3 L Diesel
5VZ-FE 178 hp 131 kW 3.4 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
TOYOTAHIACE IV
LH1
LXH1
RCH1

LXH1
RZH1
LH1
YH7
LH6
LH7
LH5
YH5
YH6
2.4
2.4 4WD
2.4 D
2.4 D 4WD
2.4 i
2.4 SBV
2.4 TD
2.4 TD 4WD
2.5 D-4D
2.5 D-4D 4WD
2.7
2.7 4WD
2.8 D
3.0 D

LXH12
LXH22
LXH18
LXH28
RCH12
RCH22
RCH13
RCH23
RCH18
RCH18
RCH28
RCH19
RCH19
RCH29
RZH10
1989/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 78 hp 57 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 78 hp 57 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 115 hp 85 kW 2.4 L Petrol
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3L 83 hp 61 kW 2.8 L Diesel
3RZ-FE 143 hp 105 kW 2.7 L Petrol
3RZ-FE 144 hp 106 kW 2.7 L Petrol
5L 88 hp 65 kW 3 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
TOYOTAHIACE SBV IV
LXH1
RZH1
LH1
2.4
2.4 4WD
2.4 D
2.4 i
2.4 SBV
2.4 TD
2.4 TD 4WD
2.5 D-4D
2.5 D-4D 4WD
2.7
2.7 4WD

LXH12
LXH22
LXH18
LXH28
RCH12
RCH22
RCH13
RCH23
RCH18
RCH28
RCH19
RCH29
RZH10
1995/08 - 2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 102 hp 75 kW 2.5 L Diesel
2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 88 hp 65 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2L 83 hp 61 kW 2.4 L Diesel
2L 79 hp 58 kW 2.4 L Diesel
2L-T 90 hp 66 kW 2.4 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
3RZ-FE 143 hp 105 kW 2.7 L Petrol
3RZ-FE 144 hp 106 kW 2.7 L Petrol
AWD / 4WD
Rear wheel
LCV / Van / Cargo
TOYOTAHIACE V
TRH2
KDH2
2.5 D-4D
2006/09 - 2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
Rear wheel
LCV / Van / Cargo
TOYOTAQUANTUM III
LH1
RZH1
2.4
2.4 4WD
2.4 D
2.4 D 4WD
2.5 D-4D 4WD
3.0 D
3.4 4WD

LH102
RZH103
1989/08 - 2004/082KD-FTV 102 hp 75 kW 2.5 L Diesel
2L 75 hp 55 kW 2.4 L Diesel
2RZ-E 116 hp 85 kW 2.4 L Petrol
2RZ-E 120 hp 88 kW 2.4 L Petrol
5L 88 hp 65 kW 3 L Diesel
5VZ-FE 178 hp 131 kW 3.4 L Petrol
AWD / 4WD
Rear wheel
Passenger Van / Wagon / Minibus
TOYOTAQUANTUM V
TRH2
KDH2
2.5 D-4D
2.5 D-4D 4WD
2005/01 - 2KD-FTV 117 hp 86 kW 2.5 L Diesel
2KD-FTV 95 hp 70 kW 2.5 L Diesel
2KD-FTV 128 hp 94 kW 2.5 L Diesel
AWD / 4WD
Rear wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
